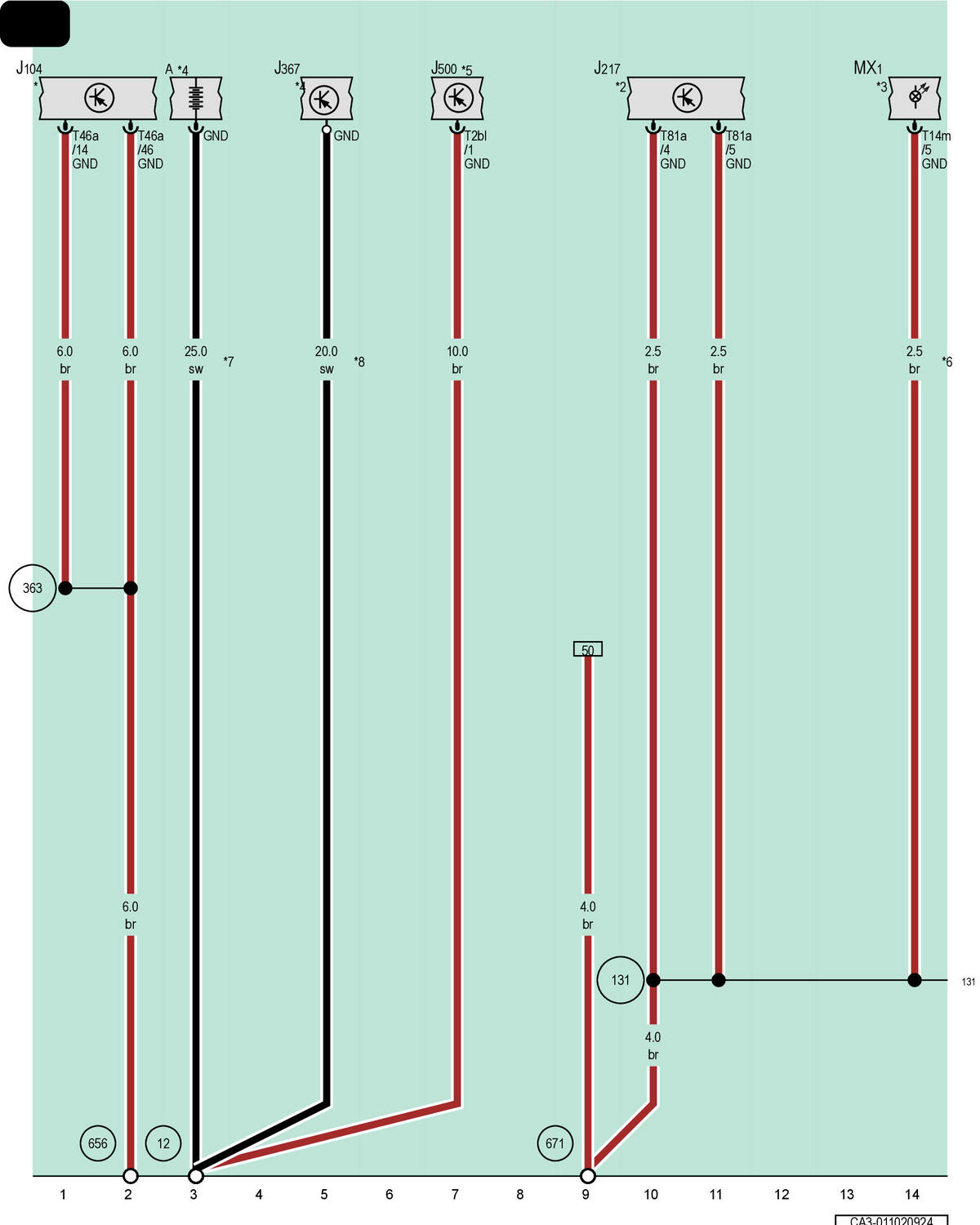

Battery, Abs Control Module, Transmission Control Module, Battery Monitoring Control Module, Power Steering Control Module, Left Front Headlamp

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

A

Battery

J104

ABS Control Module

J217

Transmission Control Module

J367

Battery Monitoring Control Module

J500

Power Steering Control Module

MX1

Left Front Headlamp

T2bl

2-Pin Connector, Black

T14m

14-Pin Connector, Black

T46a

46-Pin Connector, Black

T81a

81-Pin Connector, Black

12

Ground Connection in Engine/Motor Compartment, Left

131

Ground Connection 2 (in Engine/Motor Compartment Wiring Harness)

363

Ground Connection 8 (in Engine/Motor Compartment Wiring Harness)

656

Ground Connection on Right Headlamp

671

Ground Connection 1 on Left Front Longitudinal Member

*

Refer to Applicable Brake System Wiring Diagram

*2

Refer to Applicable Wiring Diagram for Automatic Transmission

*3

Refer to Applicable Wiring Diagram for Headlamps

*4

Refer to the Applicable Battery, Starter and Generator Wiring Diagram

*5

Refer to the Applicable Steering Wiring Diagram

*6

Through February 2024

*7

Through September 2024

*8

From September 2024
