Overview - Whole Body Assembly
NOTE:
Refer to assembly plans supplied with Alignment Bracket from the Alignment Bracket Set set for detailed information on the assembly.

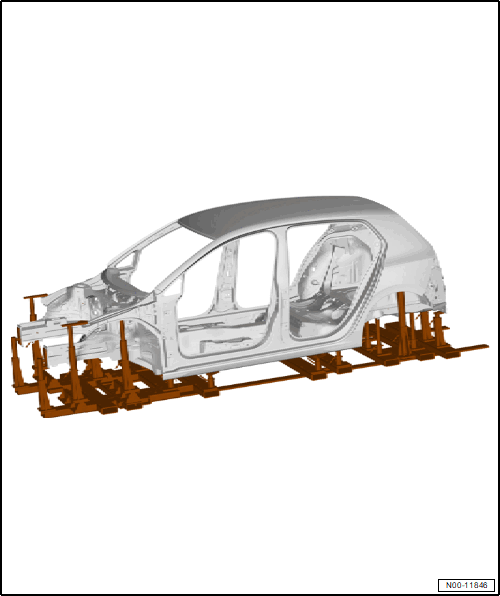

The illustration shows an example of the complete assembly of the Alignment Bracket Set Golf 2020 with Alignment System Package - Alignment Jig:V.A.G 1920/1 and the Mz Plus Straightening Bracket System:VAS 6630 .
Alignment Bracket set without Assemblies View
