Differential Locks Control Module J647, Removing And Installing: Removing

If the Differential Locks Control Module -J647- is replaced, perform the test plan for replacing the control module.

-- Perform the "control module, replacing" function using the Vehicle diagnostic tester . Refer to DIAGNOSTIC ENTRY .

Continuation

-- Remove the noise insulation. Refer to NOISE INSULATION, REMOVING AND INSTALLING .

-- Disconnect the connectors -1- and -2-.

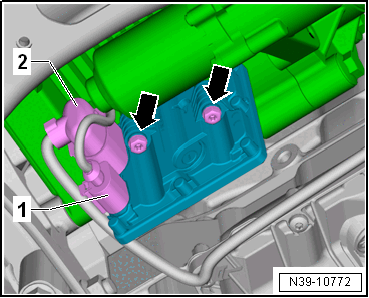

Fig 1: Identifying Axle Differential Lock Control Module Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -arrows- and the control module.
