Overview - MECHATRONIC

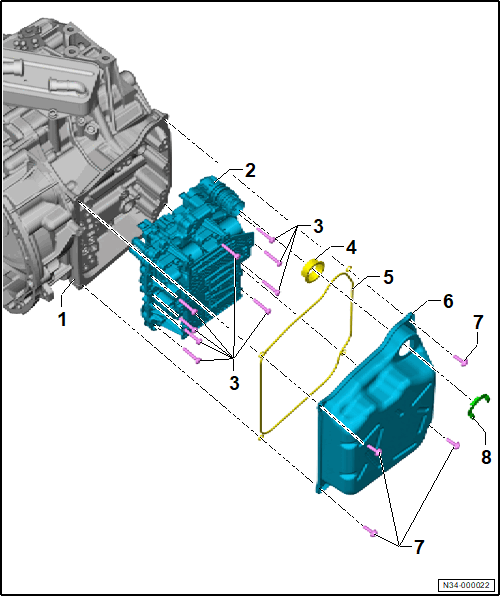

Fig 1: Exploded View Of Mechatronic Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Transmission
- Refer to Transmission, Removing (Gas) , or Transmission, Removing (Diesel) .
- Refer to Transmission, Installing .
Dual-Clutch Transmission Mechatronic -J743-
- Refer to Mechatronic, Removing and Installing .
Bolt
- Quantity 9
- Replace after removing
- Refer to Fig 2
Seal
- Replace after removing the transmission fluid pan
- Replace after removing
Seal
- Only replace with the transmission fluid pan
Transmission Fluid Pan
- Replace after removing
- Refer to Transmission Fluid Pan, Removing and Installing .
Bolt
- Quantity: 4
- Replace after removing
- Refer to Fig 3
Clip
- Replace after removing

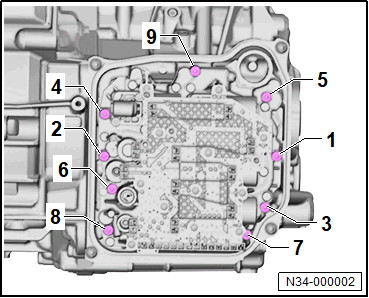

Fig 2: Mechatronic Bolt Tightening Specification And Tightening Sequence

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Step	Bolts	Tightening Specification/Additional Turn
1.	-1- through -9-	all the way by hand
2.	-1- through -9-	8 Nm
3.	-1- through -9-	45°

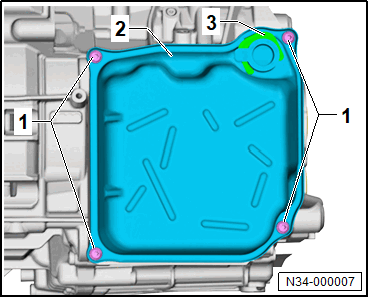

Fig 3: Transmission Pan Tightening Specification

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Step	Bolts	Tightening Specification/Additional Turn
1.	-1-	all the way by hand
2.	-1-	Diagonally to 8 Nm
3.	-1-	90° diagonally
