Digital Sound System Control Module, Data Bus On Board Diagnostic Interface, Internet Access Control Module, Rearview Camera, Driver Assistance Systems Front Camera
J525
Digital Sound System Control Module
J533
Data Bus on Board Diagnostic Interface
J666
Internet Access Control Module
R189
Rearview Camera
R242
Driver Assistance Systems Front Camera
T2ga
2-Pin Connector, White
T2gd
2-Pin Connector, White
T2ge
2-Pin Connector, White
T2gf
2-Pin Connector, White
T8ae
8-Pin Connector, Black
T11a
11-Pin Connector, Black
T12f
12-Pin Connector, Black
T38a
38-Pin Connector, Black
*

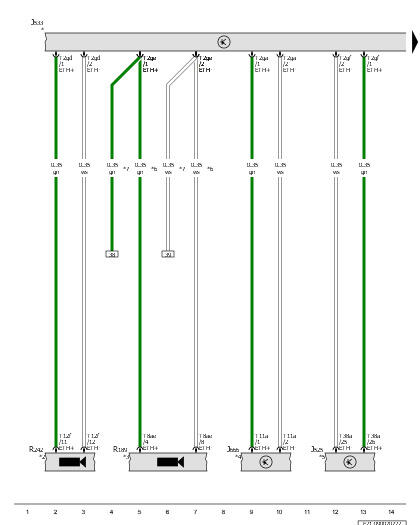

Refer to Applicable Wiring Diagram for Data Bus Networking
*2
Refer to the Applicable Driver Assistance Systems Front Camera Wiring Diagram
*3
Refer to Applicable Wiring Diagram for the Rearview Camera (Rear Assist)
*4
Refer to Applicable Communication Wiring Diagram
*5
Refer to Applicable Sound System Wiring Diagram
*6
For Vehicles without Peripheral Camera
*7
For Vehicles with Peripheral Camera
