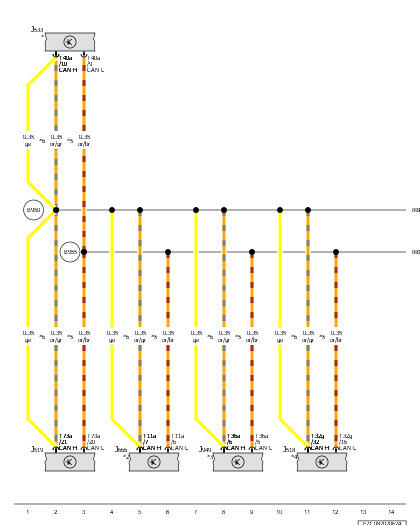

Access/Start Authorization Control Module, Vehicle Electrical System Control Module, Data Bus On Board Diagnostic Interface, Internet Access Control Module, Control Module For Emergency Call Module And Communication Unit

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J518

Access/Start Authorization Control Module

J519

Vehicle Electrical System Control Module

J533

Data Bus on Board Diagnostic Interface

J666

Internet Access Control Module

J949

Control Module for Emergency Call Module and Communication Unit

T11a

11-Pin Connector, Black

T32g

32-Pin Connector, Gray

T36a

36-Pin Connector, Black

T40a

40-Pin Connector, Black

T73a

73-Pin Connector, Black

B950

Connection 1 (CAN Bus Connectivity High) in Main Wiring Harness

B955

Connection 1 (CAN Bus Connectivity Low) in Main Wiring Harness

*

Refer to Applicable Wiring Diagram for Data Bus Networking

*2

Refer to Applicable Communication Wiring Diagram

*3

Refer to Applicable Emergency Call Module Wiring Diagram

*4

Refer to the Applicable Access/Start Authorization System Wiring Diagram

*5

For Vehicles Without UNECE Cyber Security

*6

For Vehicles with UNECE Cyber Security
