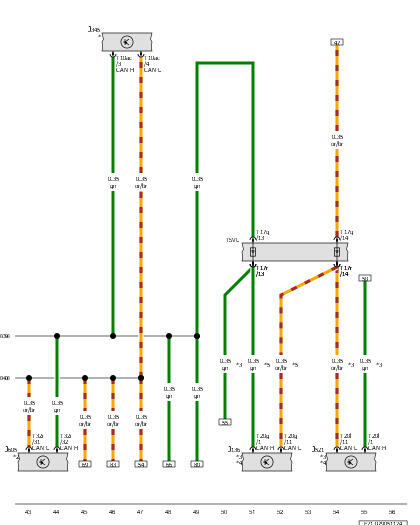

Memory Seat/Steering Column Adjustment Control Module, Towing Recognition Control Module, Front Passenger Memory Seat Control Module, Rear Lid Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J136

Memory Seat/Steering Column Adjustment Control Module

J345

Towing Recognition Control Module

J521

Front Passenger Memory Seat Control Module

J605

Rear Lid Control Module

T10ac

10-Pin Connector, Black

T17q

17-Pin Connector, Red

T17r

17-Pin Connector, Red

T20g

20-Pin Connector, Black

T20l

20-Pin Connector, Black

T32i

32-Pin Connector, Black

TSVL

Left Front Seat Coupling Station

B398

Comfort System CAN Bus, High Connection 2 (in Main Wiring Harness)

B408

Comfort System CAN Bus, Low Connection 3 (in Main Wiring Harness)

*

Refer to the Wiring Diagram for Trailer Towing

*2

Refer to Applicable Power Rear Lid Wiring Diagram

*3

For RHD Vehicles

*4

Refer to Applicable Seat Adjustment Wiring Diagram

*5

For LHD Vehicles
