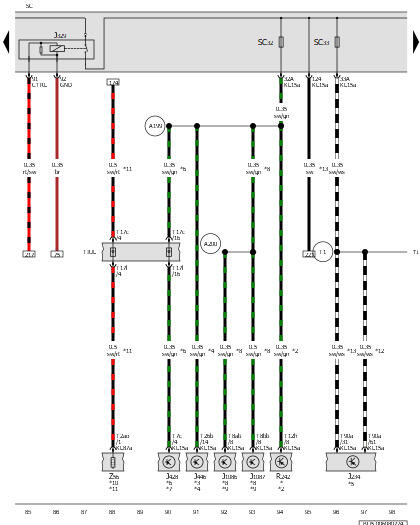

Airbag Control Module, Control Module For Adaptive Cruise Control, Parking Aid Control Module, Blind Spot Detection Control Module, Blind Spot Detection Control Module 2, Driver Assistance Systems Front Camera, Fuse Panel C, Wiper Park Position Heater
J234
Airbag Control Module
J329
Terminal 15 Power Supply Relay
J428
Control Module for Adaptive Cruise Control
J446
Parking Aid Control Module
J1086
Blind Spot Detection Control Module
J1087
Blind Spot Detection Control Module 2
R242
Driver Assistance Systems Front Camera
SC
Fuse Panel C
SC32
Fuse 32 (On Fuse Panel C)
SC33
Fuse 33 (On Fuse Panel C)
T2ao
2-Pin Connector, Black
T7c
7-Pin Connector, Black
T8ab
8-Pin Connector, Black
T8bb
8-Pin Connector, Black
T12h
12-Pin Connector, Brown
T17c
17-Pin Connector, Red
T17l
17-Pin Connector, Red
T26b
26-Pin Connector, Black
T90a
90-Pin Connector, Yellow
TIUL
Coupling Point in Interior, Bottom Left
Z56
Wiper Park Position Heater
A199
Positive Connection 4 (15a) (in Instrument Panel Wiring Harness)
A200
Positive Connection 5 (15a) (in Instrument Panel Wiring Harness)
T1
Positive Connection 1 (in Airbag Wiring Harness)
*
Refer to the Applicable Driver Assistance Systems Front Camera Wiring Diagram
*2
For Vehicles with Driver Assistance Systems Front Camera
*3
Refer to Wiring Diagram for Parking Aid
*4
For Vehicles with Park Distance Control (PDC)
*5
Refer to Applicable Airbag Wiring Diagram
*6
For Vehicles with Control Module for Adaptive Cruise Control
*7
Refer to Applicable Wiring Diagram for Adaptive Cruise Control
*8
For Vehicles with Blind Spot Detection
*9
Refer to Applicable Lane Change Assistance Wiring Diagram
*10
Refer to Applicable Windshield Defogger Wiring Diagram
*11
For Vehicles with Windshield Defogger
*12
For Vehicles Without US Equipment
*13
For Vehicles with US Equipment
