Control Unit: Functions

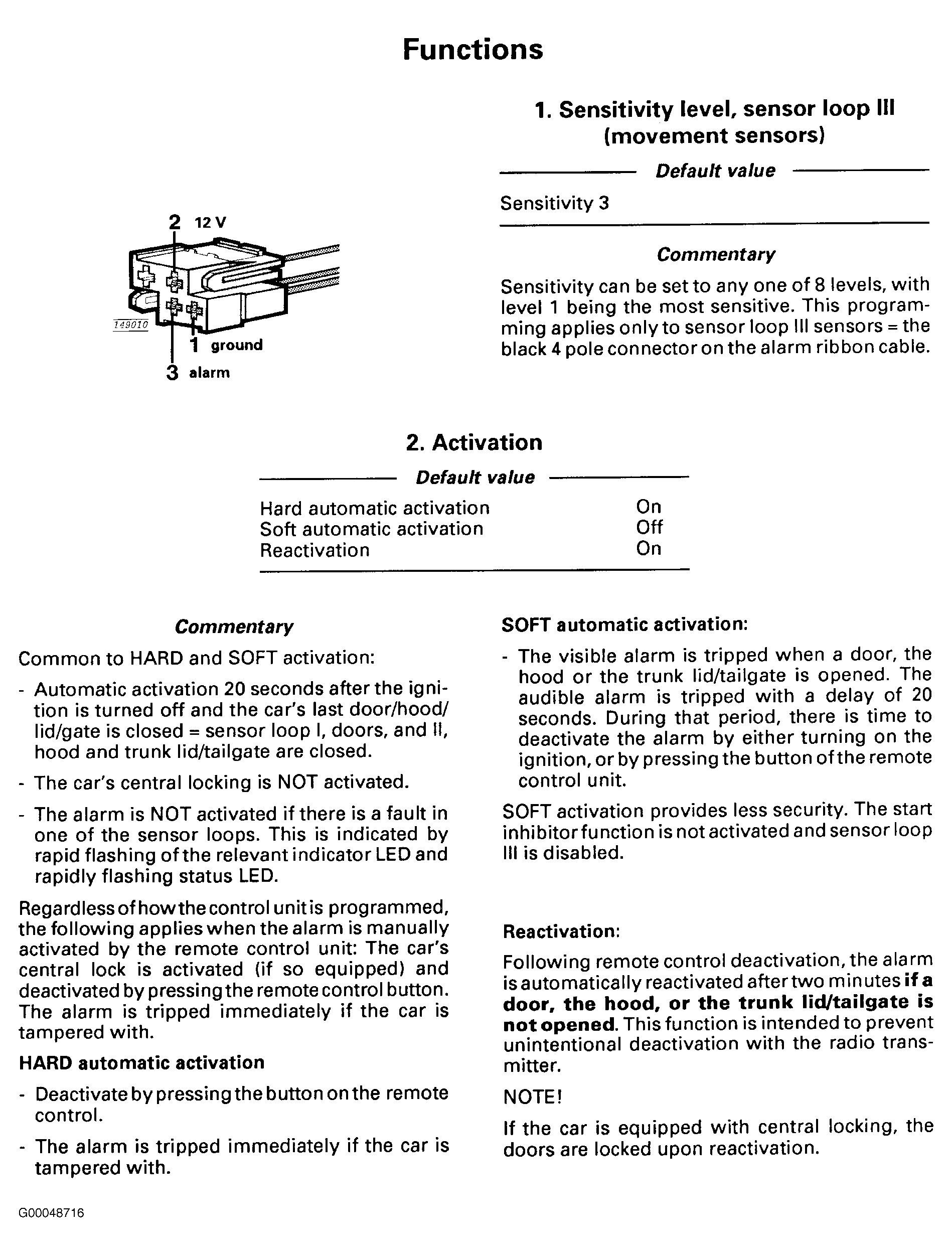

Fig 1: Control Unit Functions (1 Of 2)
G00048716Courtesy of VOLVO CARS OF NORTH AMERICA.

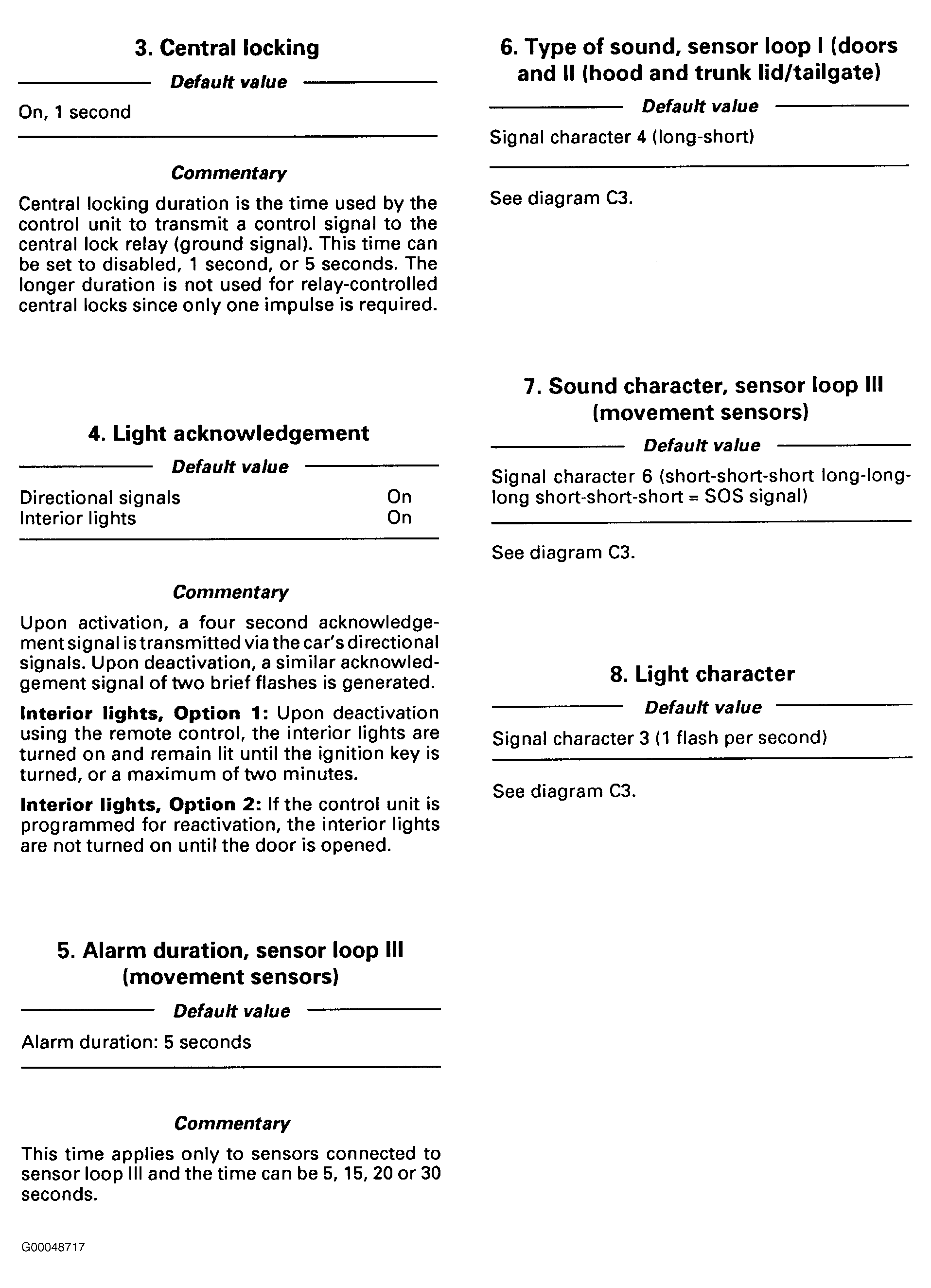

Fig 2: Control Unit Functions (2 Of 2)
G00048717Courtesy of VOLVO CARS OF NORTH AMERICA.
