Removal & Installation: Distributor: Installation

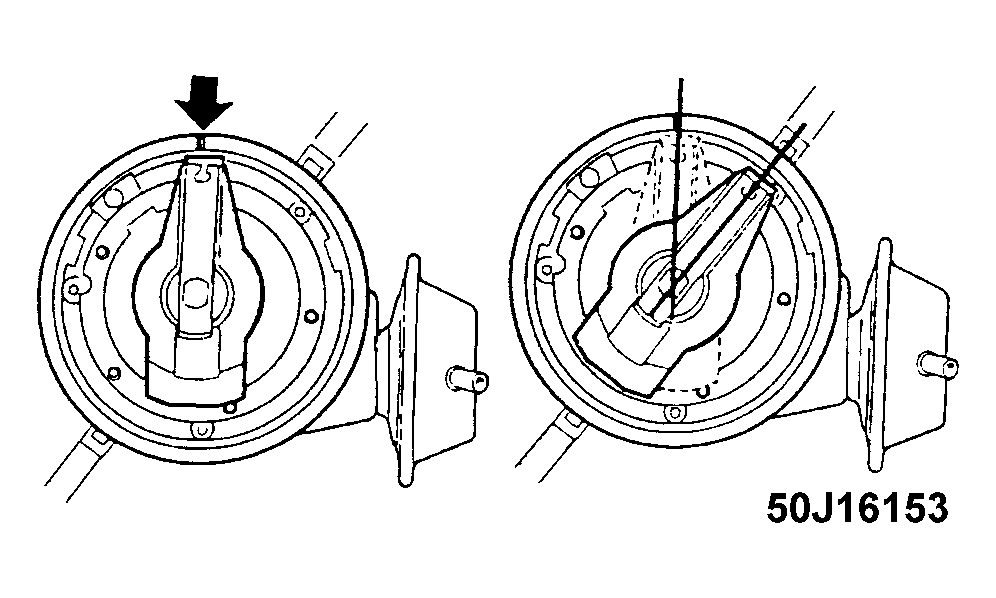

- Align rotor to notch on distributor housing. Turn rotor clockwise 30° and install distributor. See Fig 1 . Rotor should be aligned with notch when distributor is seated in position.
- Install clamp down bracket and tighten mounting bolt finger tight.
- Rotate distributor until matching marks are aligned. Install cap. Adjust timing. See IGNITION TIMING .
