Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

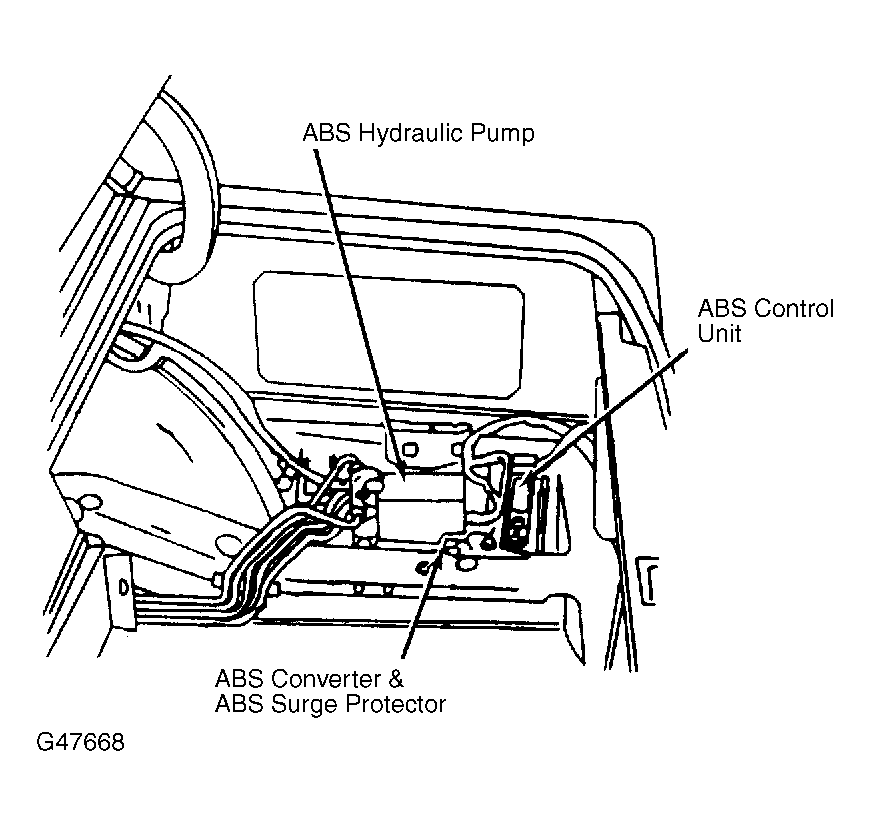

| ABS Control Unit | In floor cavity, on right side of trunk. See Figure . |

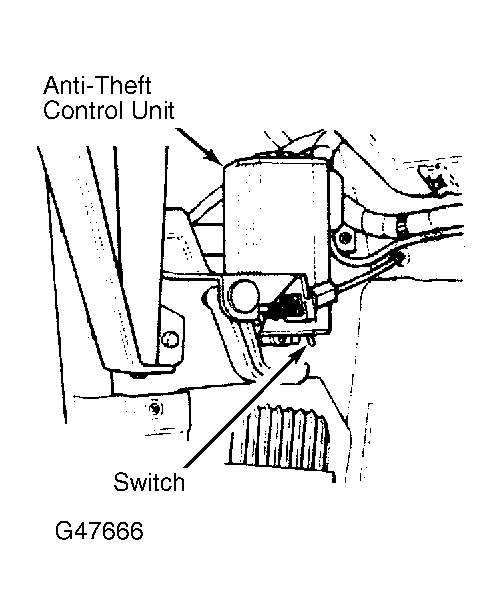

| Anti-Theft Alarm Control Unit | Under left side of dash, on driver's kick panel. See Figure . |
| Fuel Injection Control Unit | Under right side of dash, on passenger's kick panel. |
| Ignition Control Unit | Under left side of dash, above steering column. |
| Power Seat Control Unit | Under driver's seat. |

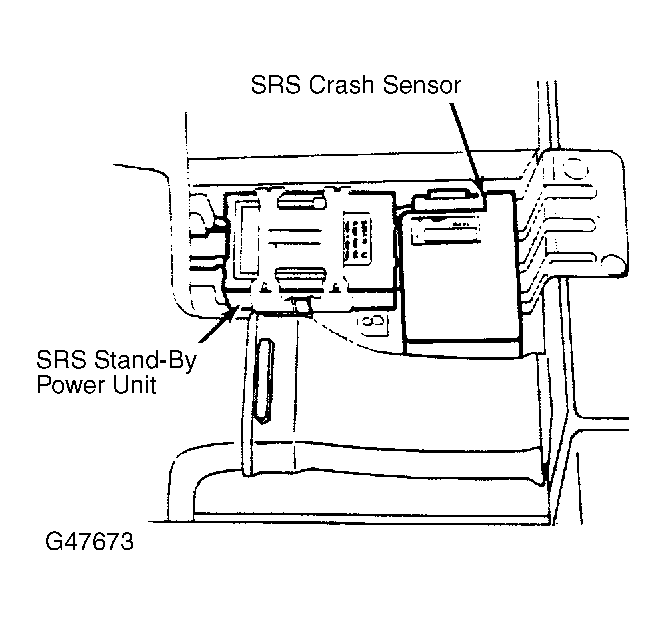

| SRS Stand-By Power Unit | In floor cavity, under driver's seat. See Figure . |
