Code 1-1-3 (Short Term Fuel Trim Too Lean/ Rich)

For information on code 1-1-3, see Fig 1 - Fig 6 .

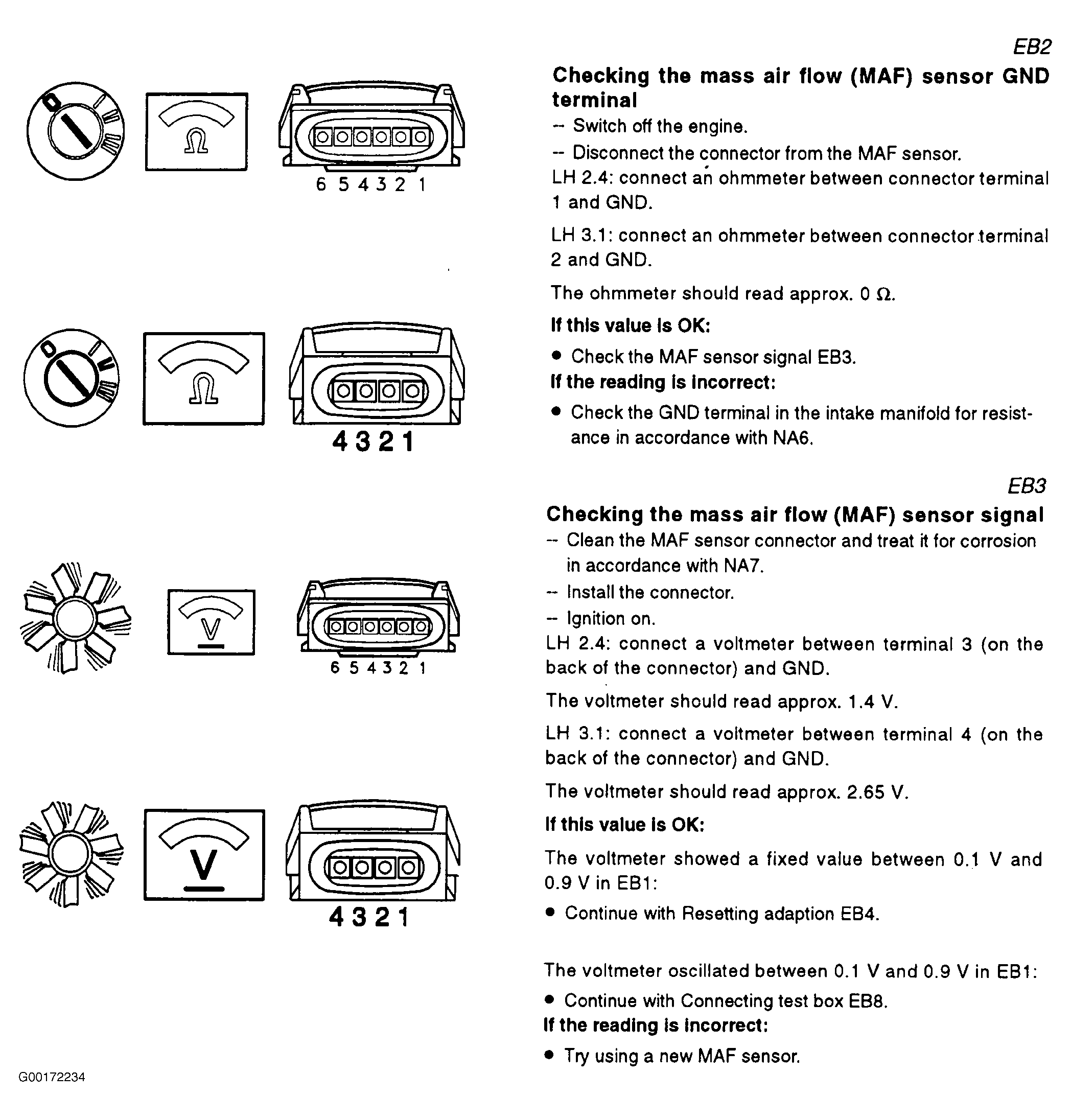

Fig 1: Code 1-1-3: Short Term Fuel Trim Too Lean/Rich (1 Of 6)

Courtesy of VOLVO CARS OF NORTH AMERICA.

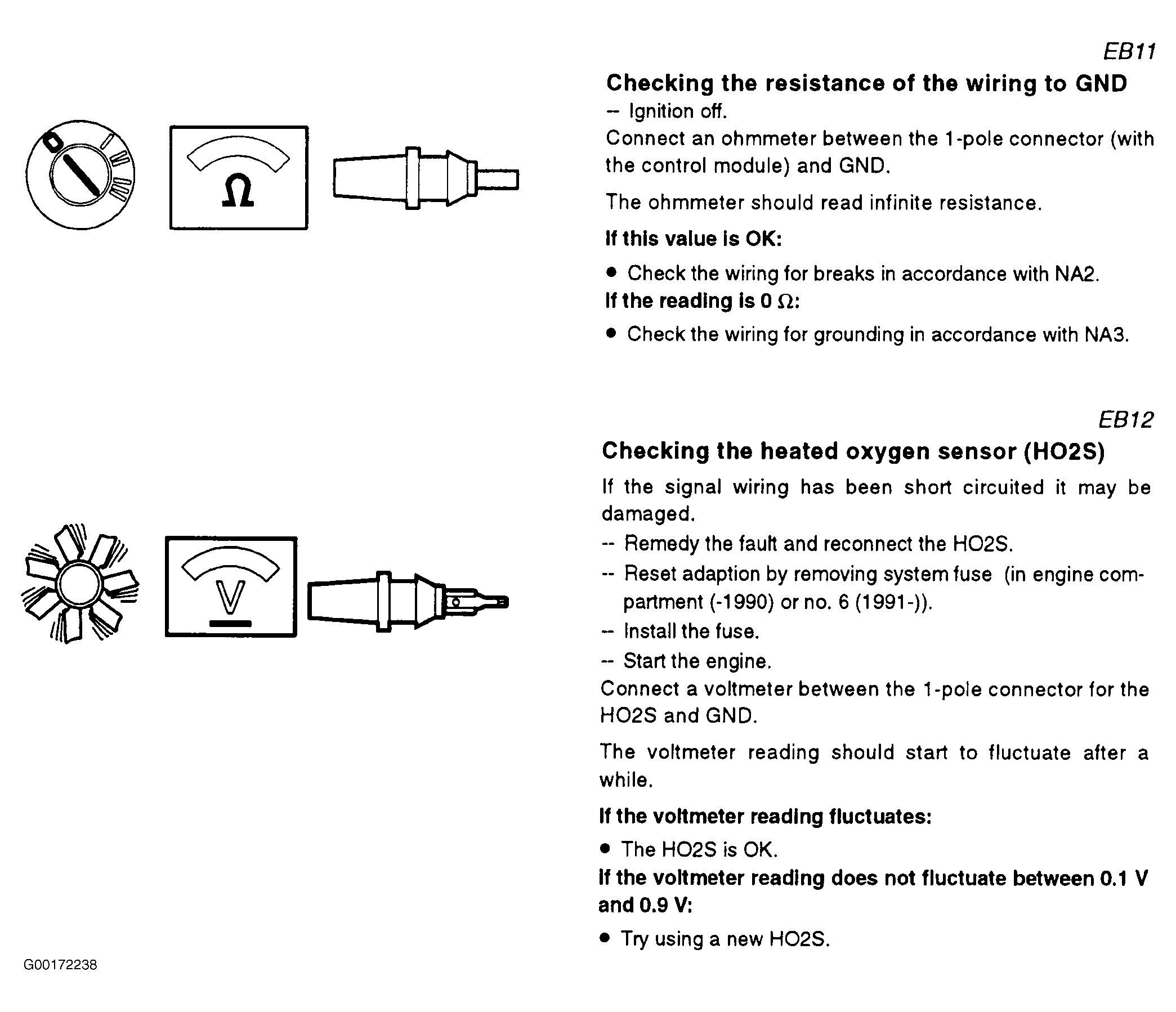

Fig 2: Code 1-1-3: Short Term Fuel Trim Too Lean/Rich (2 Of 6)

Courtesy of VOLVO CARS OF NORTH AMERICA.

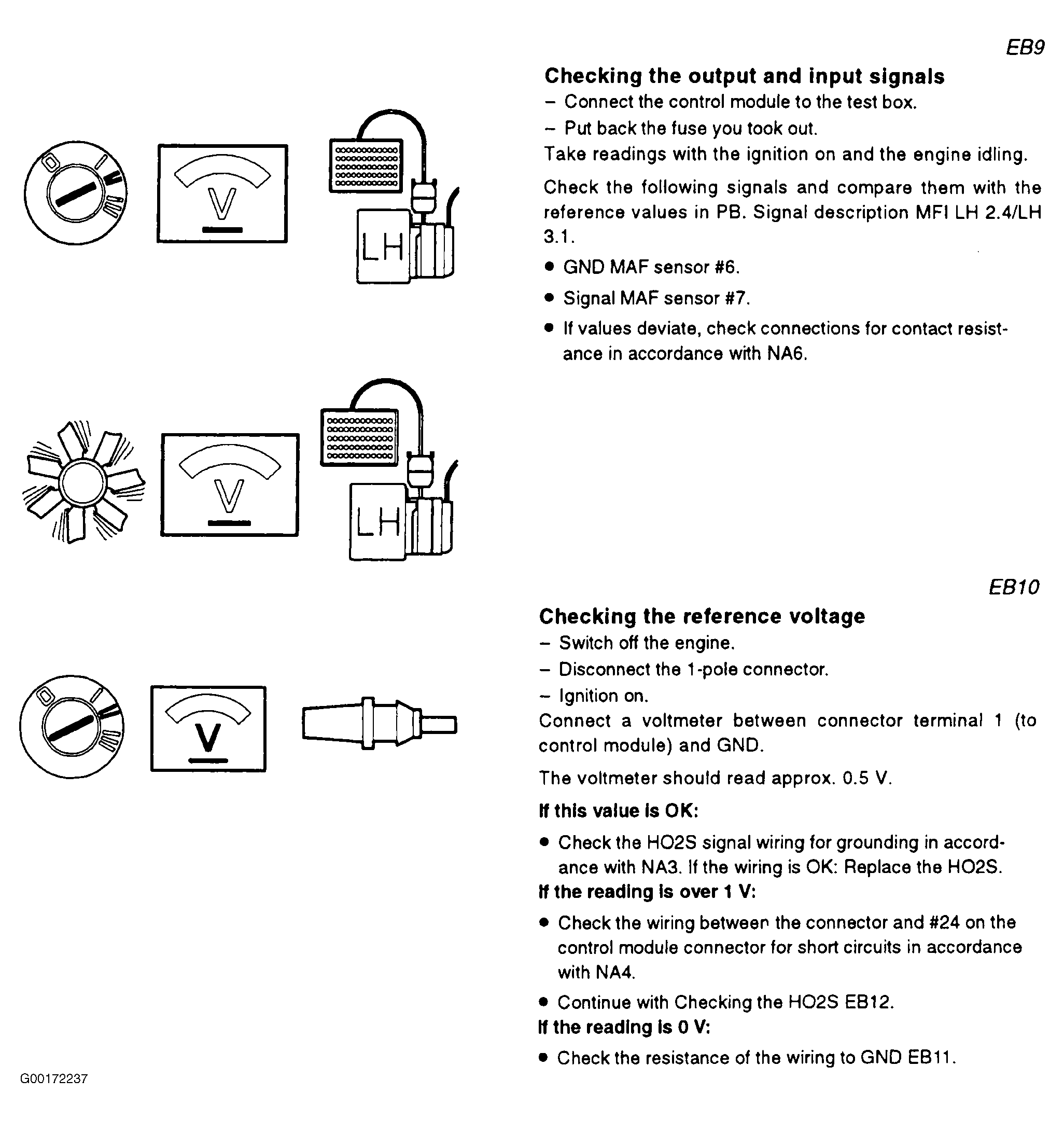

Fig 3: Code 1-1-3: Short Term Fuel Trim Too Lean/Rich (3 Of 6)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

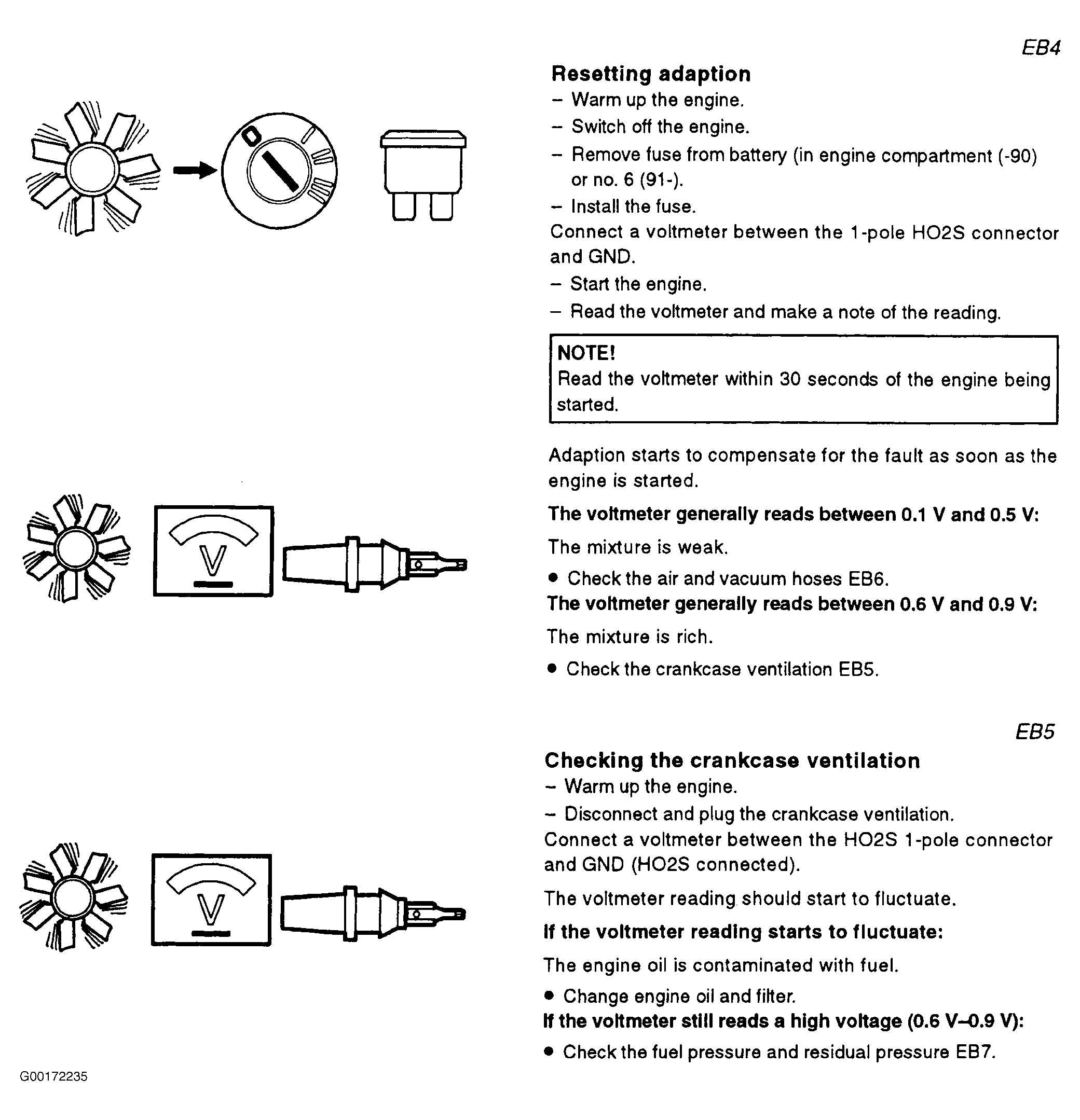

Fig 4: Code 1-1-3: Short Term Fuel Trim Too Lean/Rich (4 Of 6)

Courtesy of VOLVO CARS OF NORTH AMERICA.

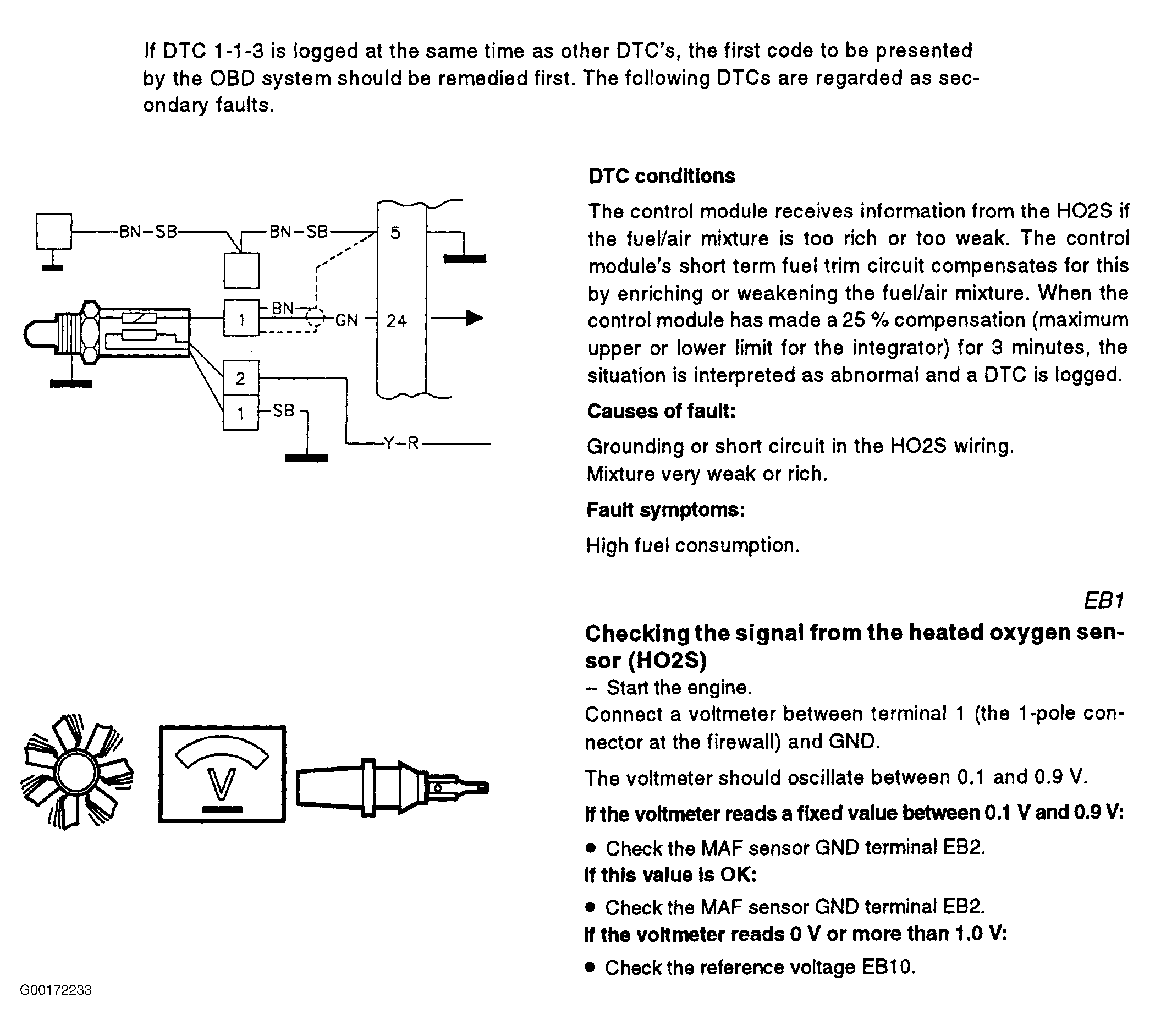

Fig 5: Code 1-1-3: Short Term Fuel Trim Too Lean/Rich (5 Of 6)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

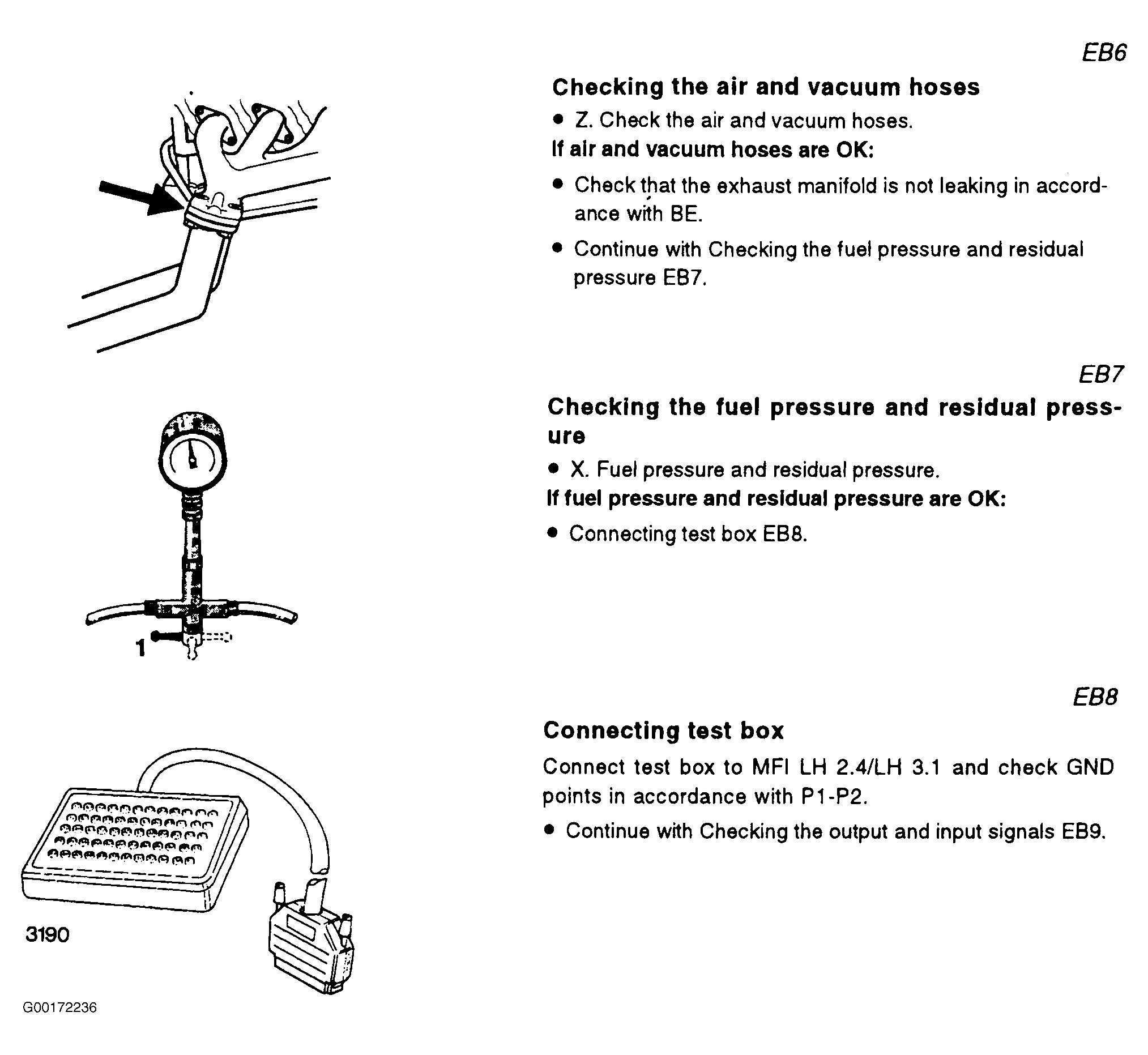

Fig 6: Code 1-1-3: Short Term Fuel Trim Too Lean/Rich (6 Of 6)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
