Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

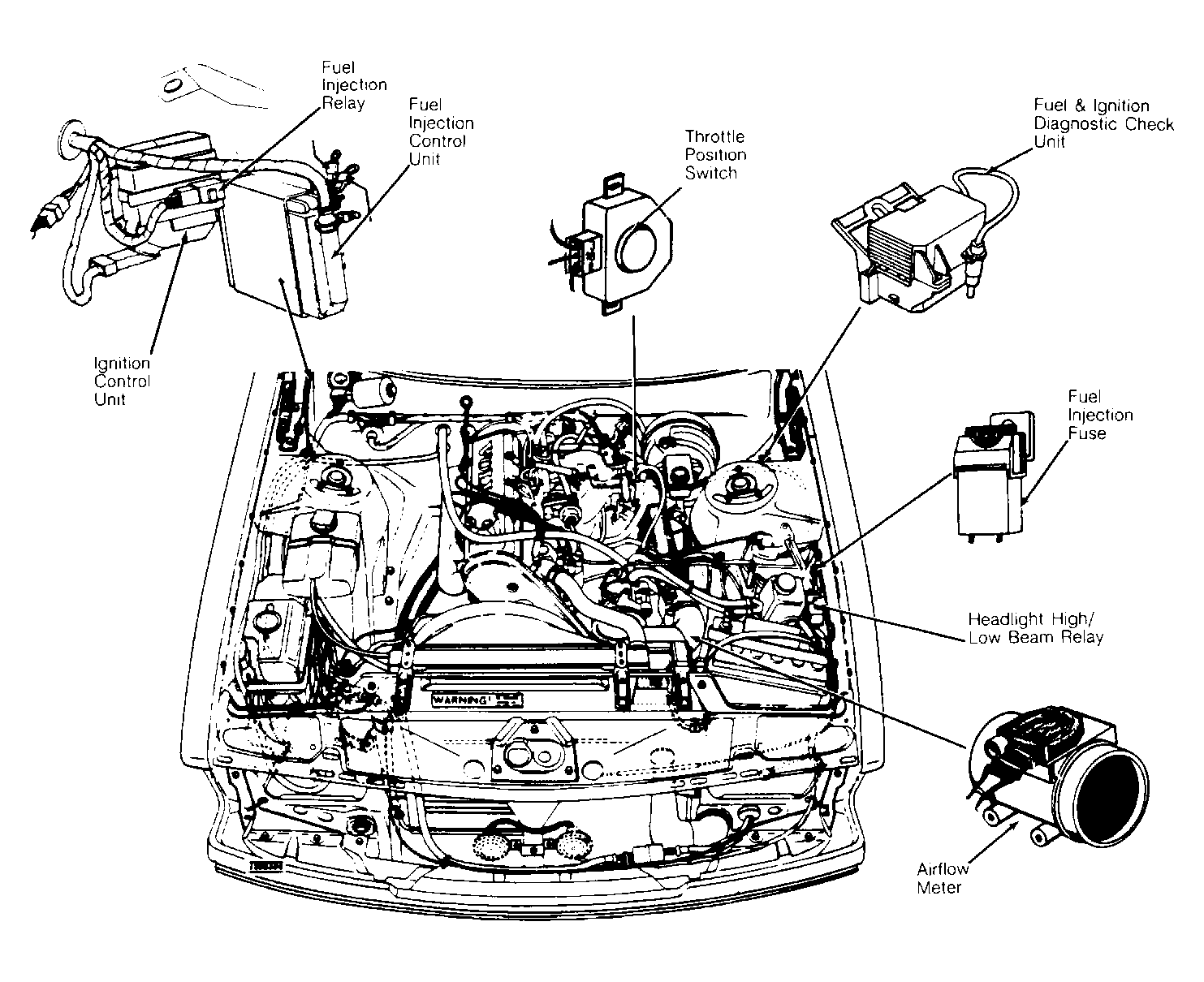

Fuel Injection Fuse On left front fender, next to ignition coil. See Figure .

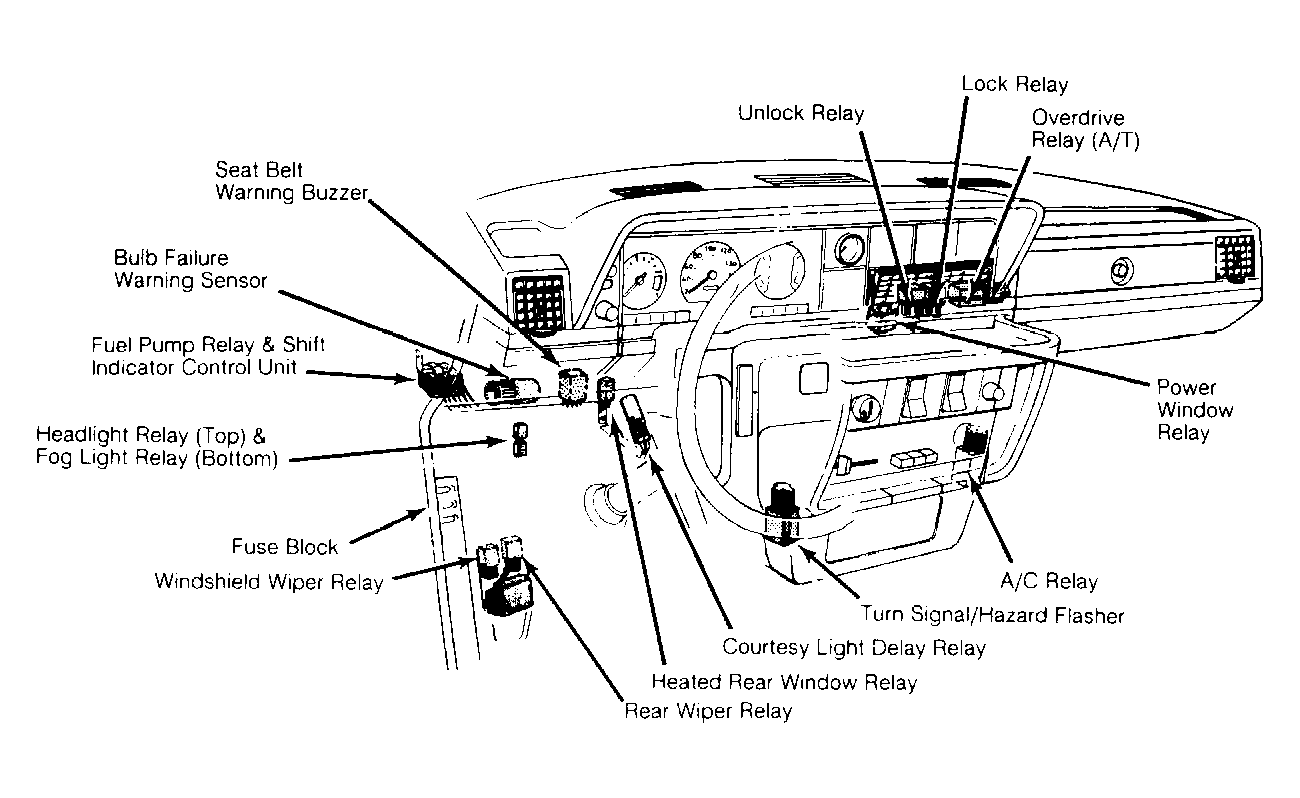

Fuse Block Under left side of dash, on driver's kick panel. See Figure .
