Repair and Diagnosis: Transmission: Clutches: Description

Clutch is single dry disc type, using a diaphragm spring type pressure plate. Two types of clutch systems are used: hydraulic or mechanical. See Fig 1 and Fig 2 .

Fig 1: Identifying Volvo Mechanical Linkage Clutch Components

Courtesy of VOLVO CARS OF NORTH AMERICA.

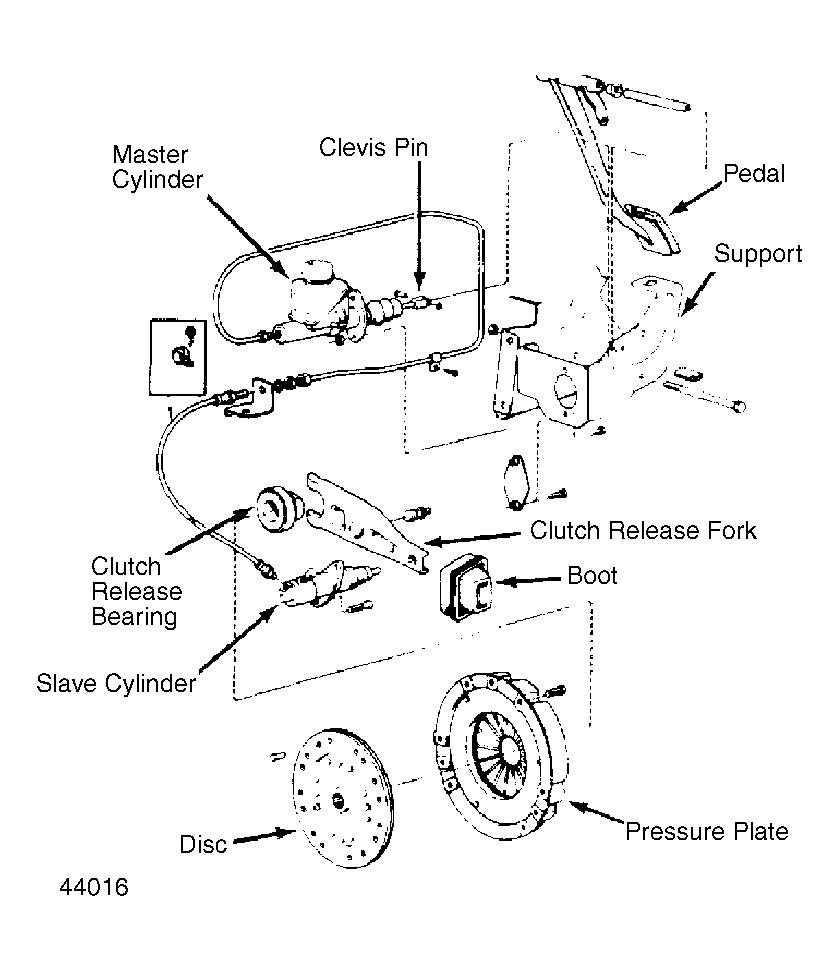

Fig 2: Identifying Volvo Hydraulic Clutch Components

Courtesy of VOLVO CARS OF NORTH AMERICA.
