Procedure X: Control Module For Power Seat

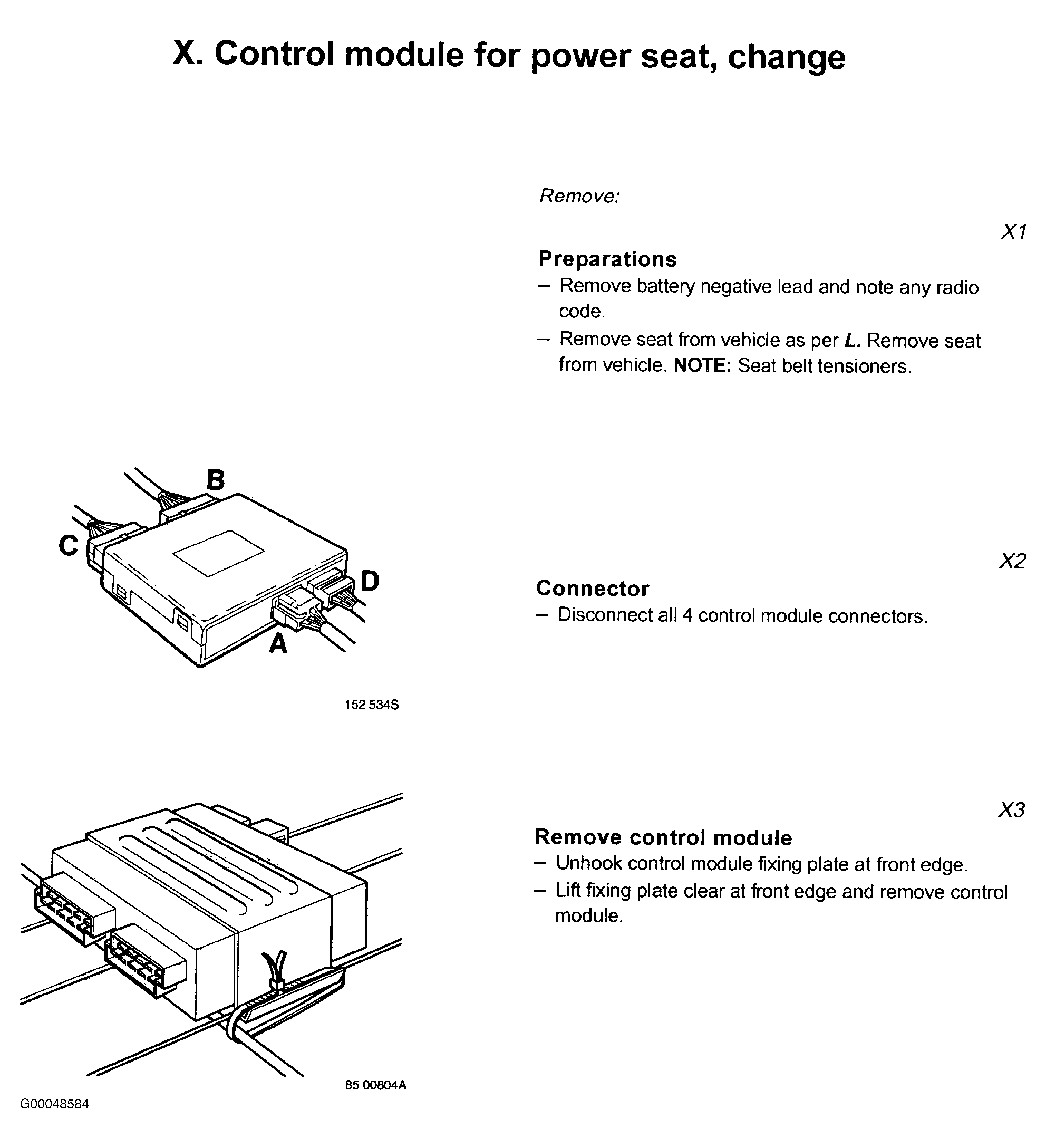

Fig 1: Procedure X: Control Module For Power Seat Removal & Installation (1 Of 2)
G00048584Courtesy of VOLVO CARS OF NORTH AMERICA.

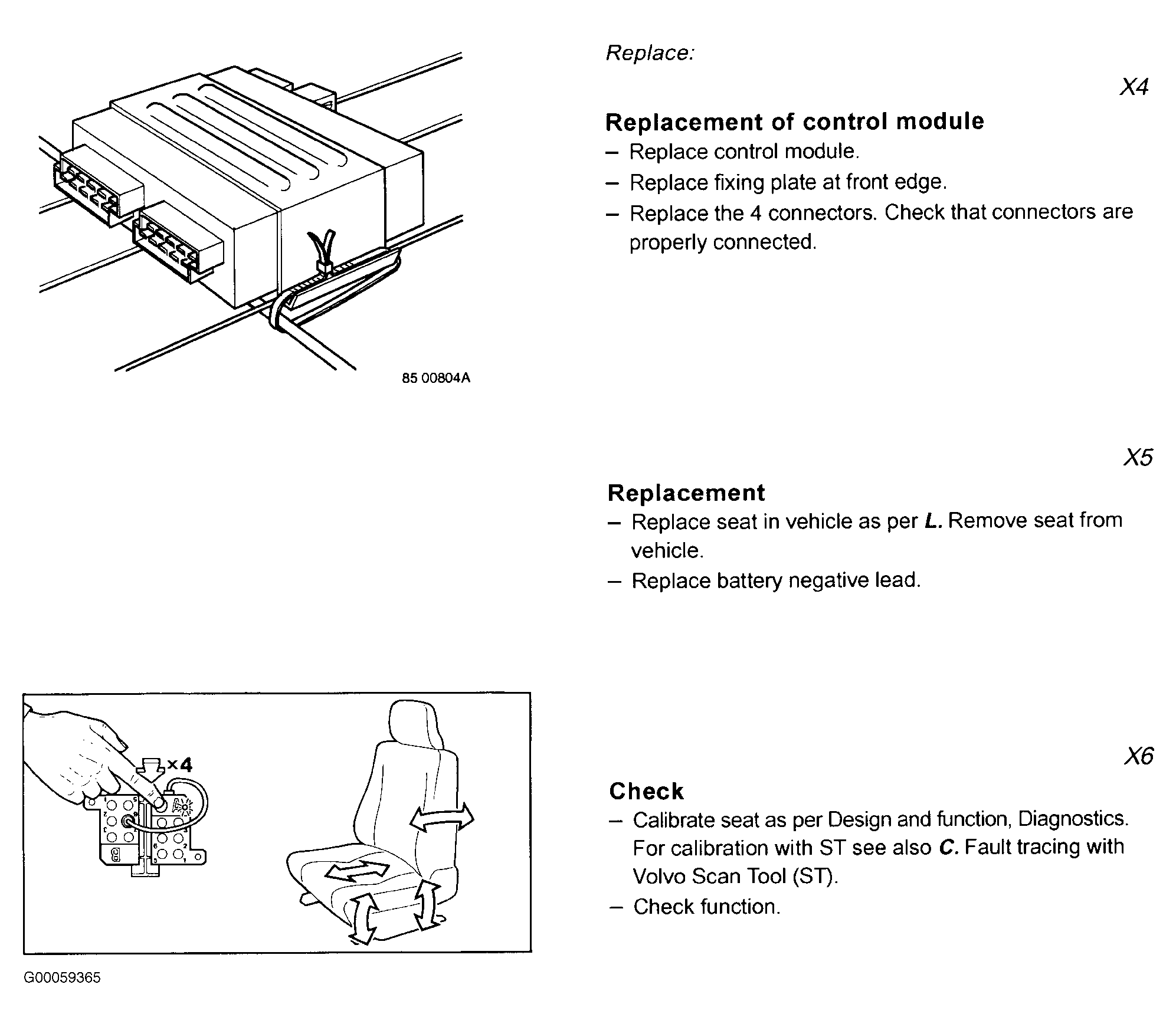

Fig 2: Procedure X: Control Module For Power Seat Removal & Installation (2 Of 2)
G00059365Courtesy of VOLVO CARS OF NORTH AMERICA.
