Removal & Installation

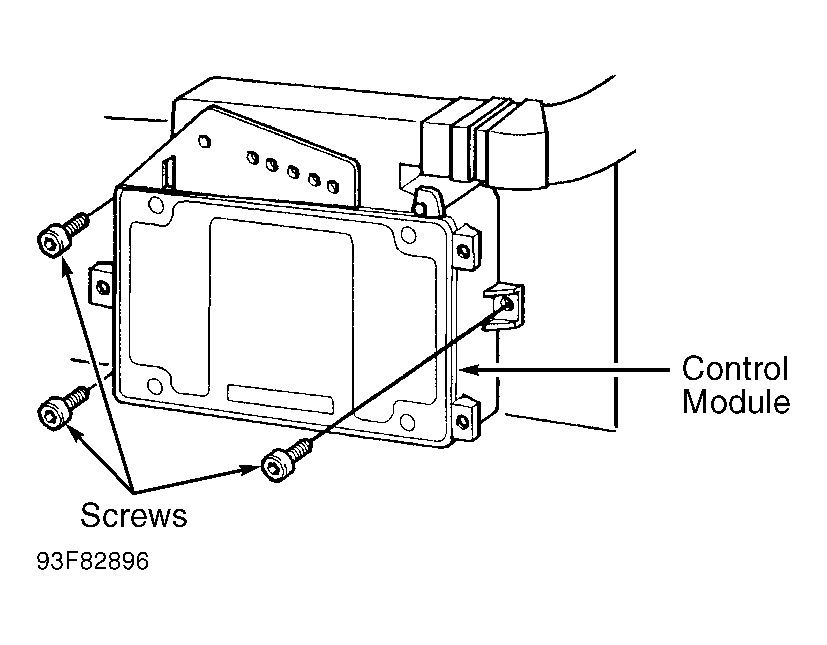

- Turn ignition off. Disconnect negative battery cable. Clean area around control module connector, then disconnect connector. Remove 3 screws and carefully lift control module from vehicle. See Fig 1 .
- To install, reverse removal procedure. Tighten control module screws to 48 INCH lbs. (5 N.m). Reconnect electrical connector and negative battery cable. Check for diagnostic trouble codes, ensuring Code 1-1-1 is displayed.
