Fuel Tank: Notes

NOTE: For more information on fuel tank assembly, see Fig 1.

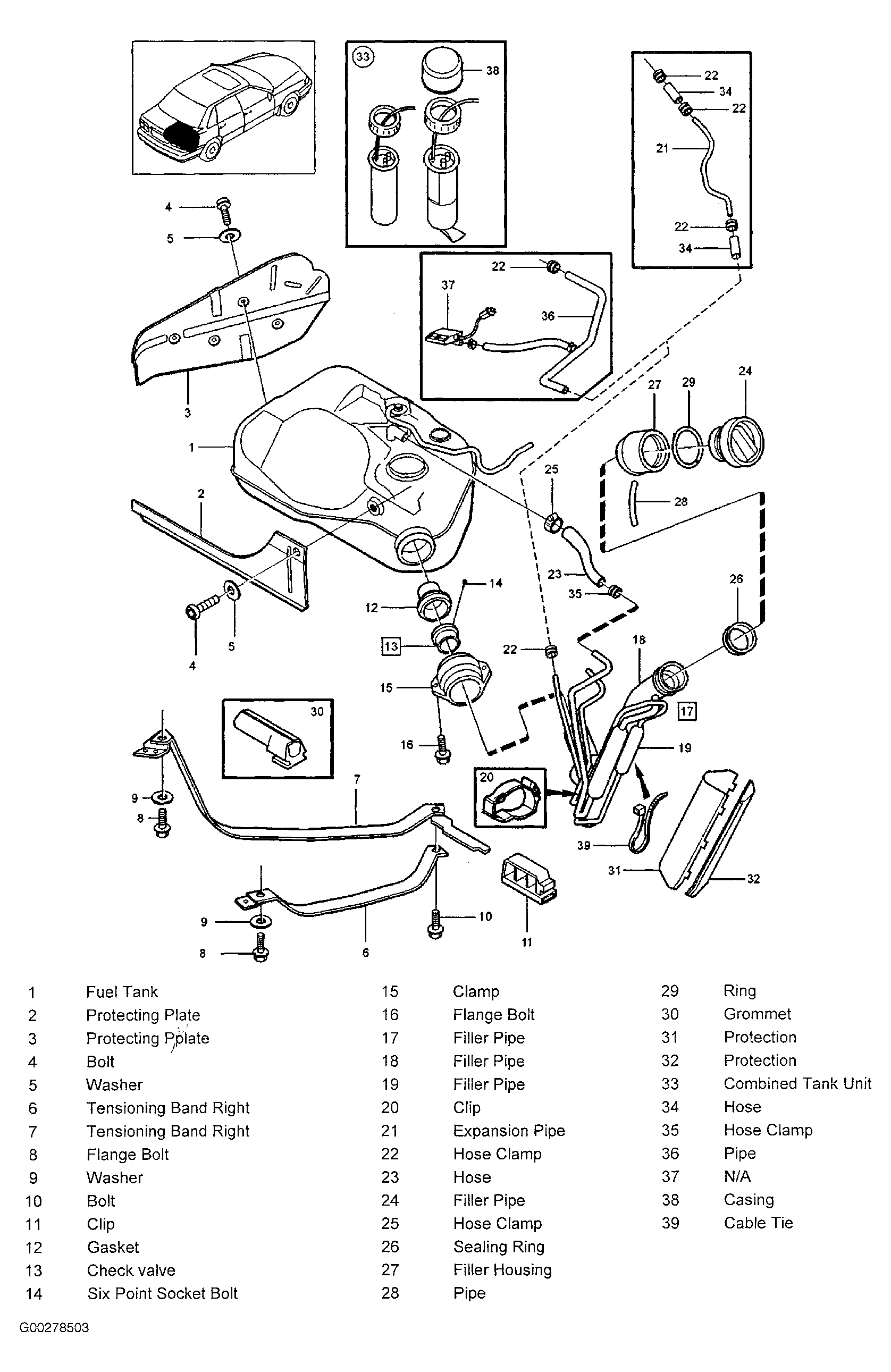

Fig 1: Exploded View Of Fuel Tank Assembly
G00278503Courtesy of VOLVO CARS OF NORTH AMERICA.
