Replacing Odometer: Assembly

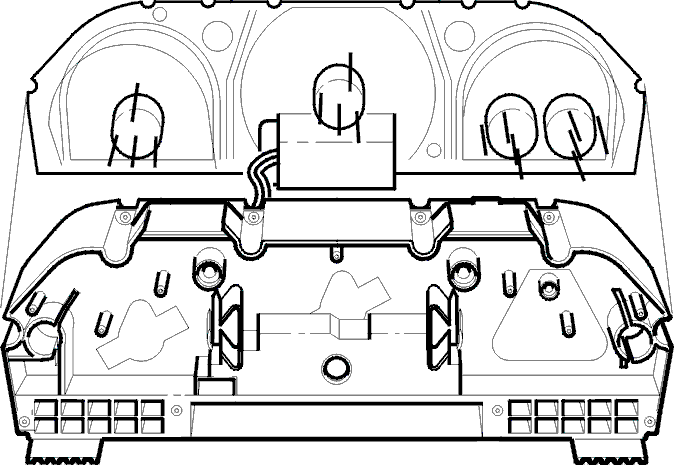

Fig 1: Locating Odometer & Reset Button

Courtesy of VOLVO CARS OF NORTH AMERICA.

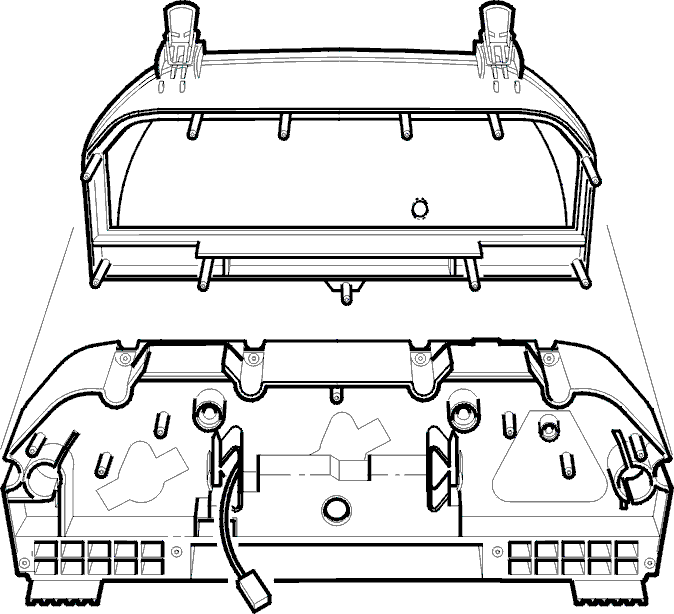

Fig 2: Locating Instrument Panel & Baseplate

Courtesy of VOLVO CARS OF NORTH AMERICA.

Assemble instrument panel and baseplate.
Make sure that reset button is in right place in instrument panel and that instrument panel fits correctly onto baseplate. Press together.
Make sure to run the odometer lead and connector through the square hole.

Fig 3: Locating Instrument Panel & Baseplate

Courtesy of VOLVO CARS OF NORTH AMERICA.

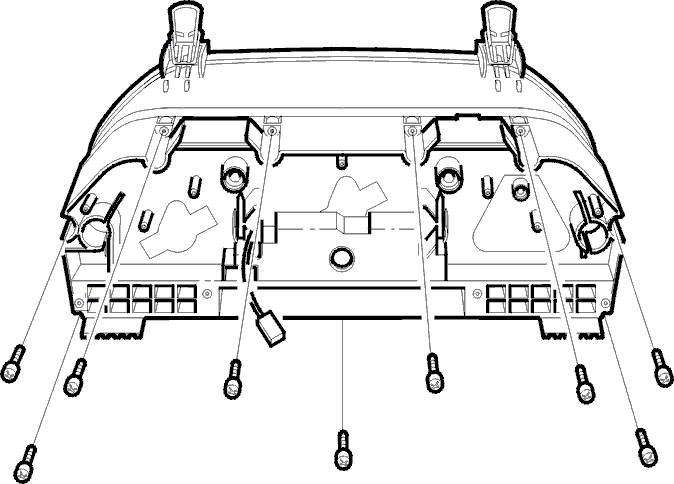

Fig 4: Identifying Baseplate Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 5: Locating Instrument Panel & Baseplate

Courtesy of VOLVO CARS OF NORTH AMERICA.

Assemble instrument panel and baseplate.
Make sure that reset button is in right place in instrument panel and that instrument panel fits correctly onto baseplate. Press together.
Make sure to run the odometer lead and connector through the square hole.

Fig 6: Locating Instrument Panel & Baseplate

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 7: Identifying Baseplate Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 8: Locating Instrument Panel & Baseplate

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 9: Identifying Baseplate Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.
