Replacing Odometer: Notes

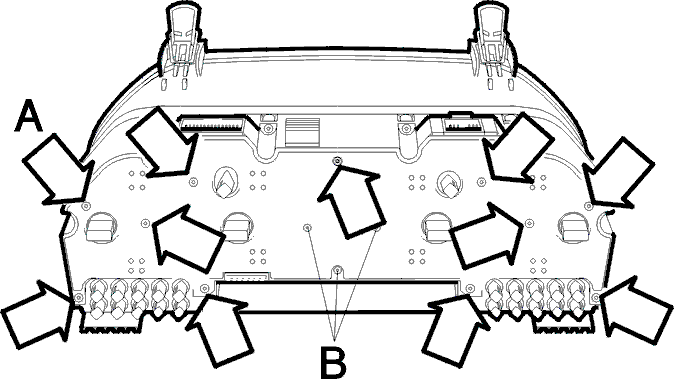

- Remove cover. Undo the 11 screws marked A and the three marked B .
The screws marked B hold the odometer to the baseplate.

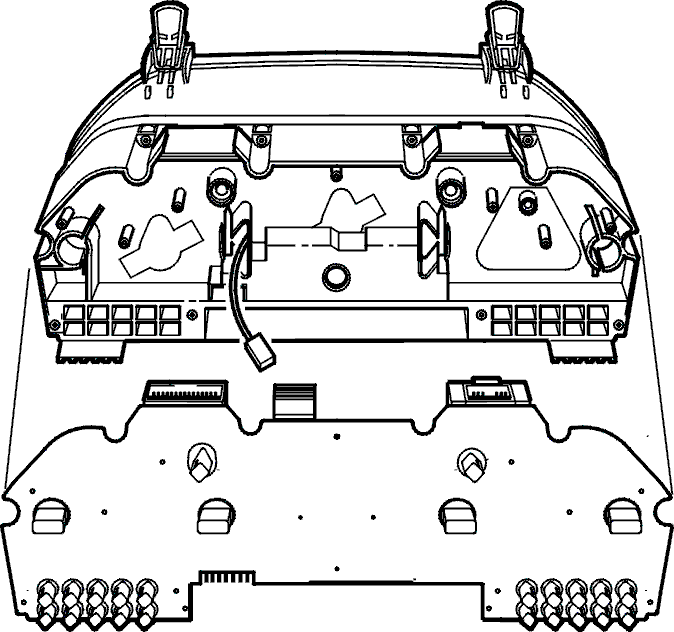

- Lift printed circuit board off of baseplate. The printed circuit board is pressed onto the baseplate and must be removed with care.
- Undo odometer connector.
CAUTION:
Place circuit board on anti-static mat.
- Lift printed circuit board off of baseplate. The printed circuit board is pressed onto the baseplate and must be removed with care.
- Undo odometer connector.
CAUTION:
Place circuit board on anti-static mat.
