Removing the control module

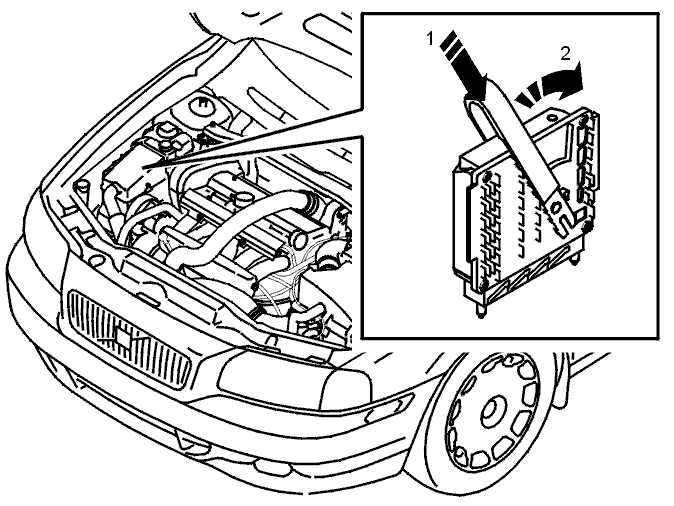

Fig 1: Identifying Engine Control Module

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove

the cable from the battery negative terminal. First read Battery, disconnecting .
control module unit cover. Put to one side.

NOTE: Do not touch the control module terminal pins with your fingers. Static electricity can damage control module components.

Bring down tool 9995722 around the control module.

Move the upper section of the tool backwards to stop and pull up the tool.

Carefully pull up the control module.
