Generator & Regulator: Overhaul: Notes

NOTE: Use exploded view of Bosch generator. Illustration of Nippondenso generator is not available. See Fig 1.

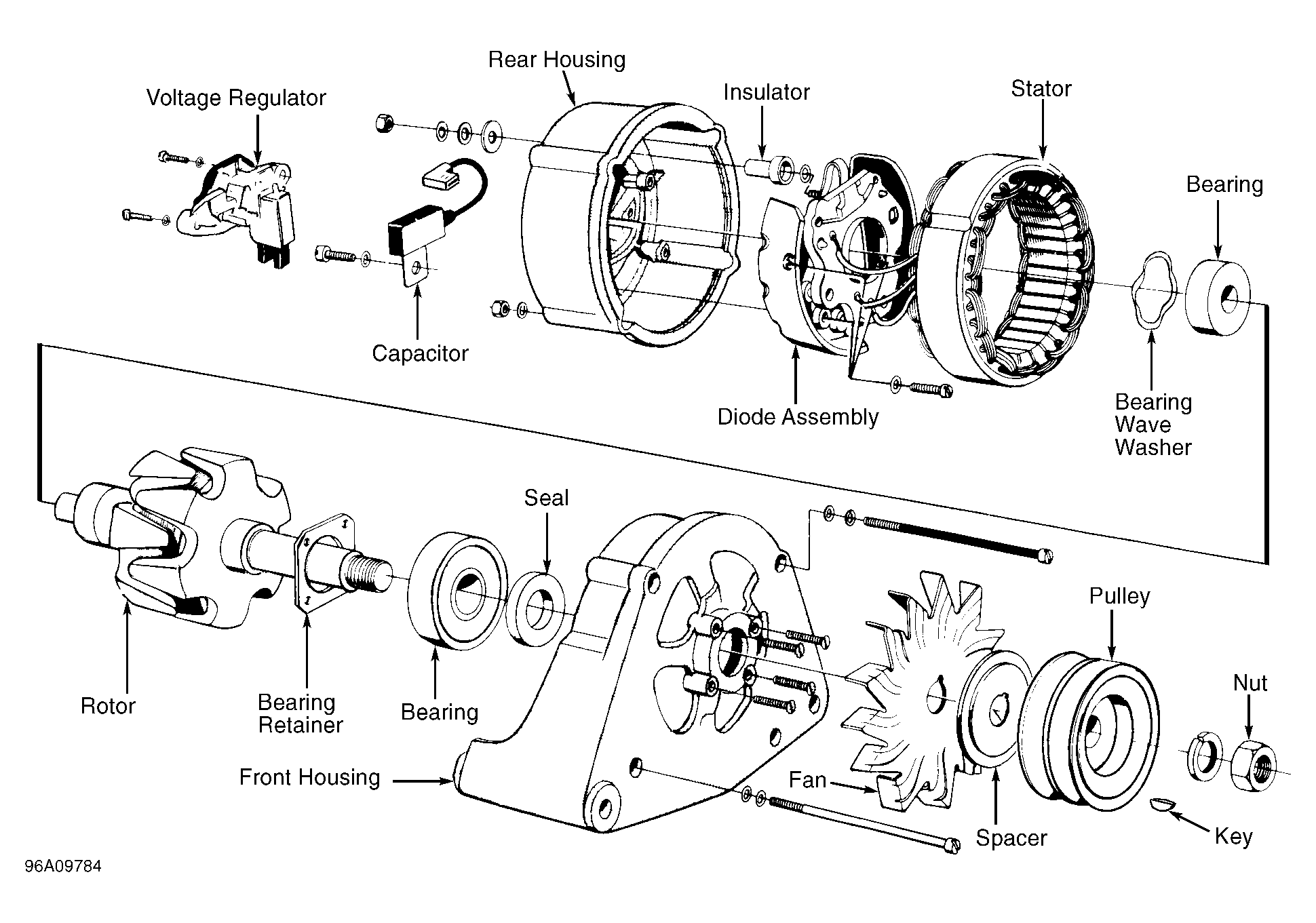

Fig 1: Exploded View Of Bosch Generator (Typical)

Courtesy of VOLVO CARS OF NORTH AMERICA
