Instrument cluster
>>
Replacing Odometer
>>
Install module
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Install module

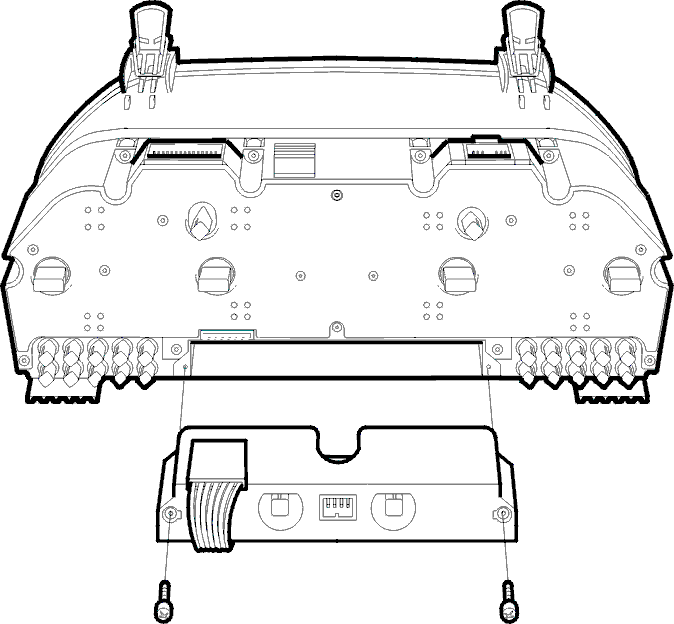

Fig 1: Identifying Time / Temperature / Trip Computer Module Screws & Connector
Courtesy of VOLVO CARS OF NORTH AMERICA.
Insert time / temperature / trip computer module, screw it fast with the 2 screws and connect the connector.
Courtesy of VOLVO CARS OF NORTH AMERICA.
