ECM REPROGRAMMER Procedure Through VIDA (28-61)

Publication date: 2005-09-30
Reference number: 28-61

ECM REPROGRAMMER PROCEDURE THROUGH VIDA

TECHNICAL SERVICE BULLETIN

Reference Number(s): 28-61, Date of Issue: September 30, 2005

VOLVO:	2000 - 2004 - S40, V40
GROUP:	28
NO.:	61

SERVICE INFORMATION

When using VIDA to perform the S or V 40 ECM Reprogrammer (VEMS) upgrade the method is somewhat different than VADIS.

After the ECM Reprogrammer procedure is started and before doing anything else write down and save the entire number that appears in the box labeled Engine Control Module P/N. This number will be required if the download attempt fails for any reason. This number is visible in the box after the car profile is entered and VIDA communicates with the ECM

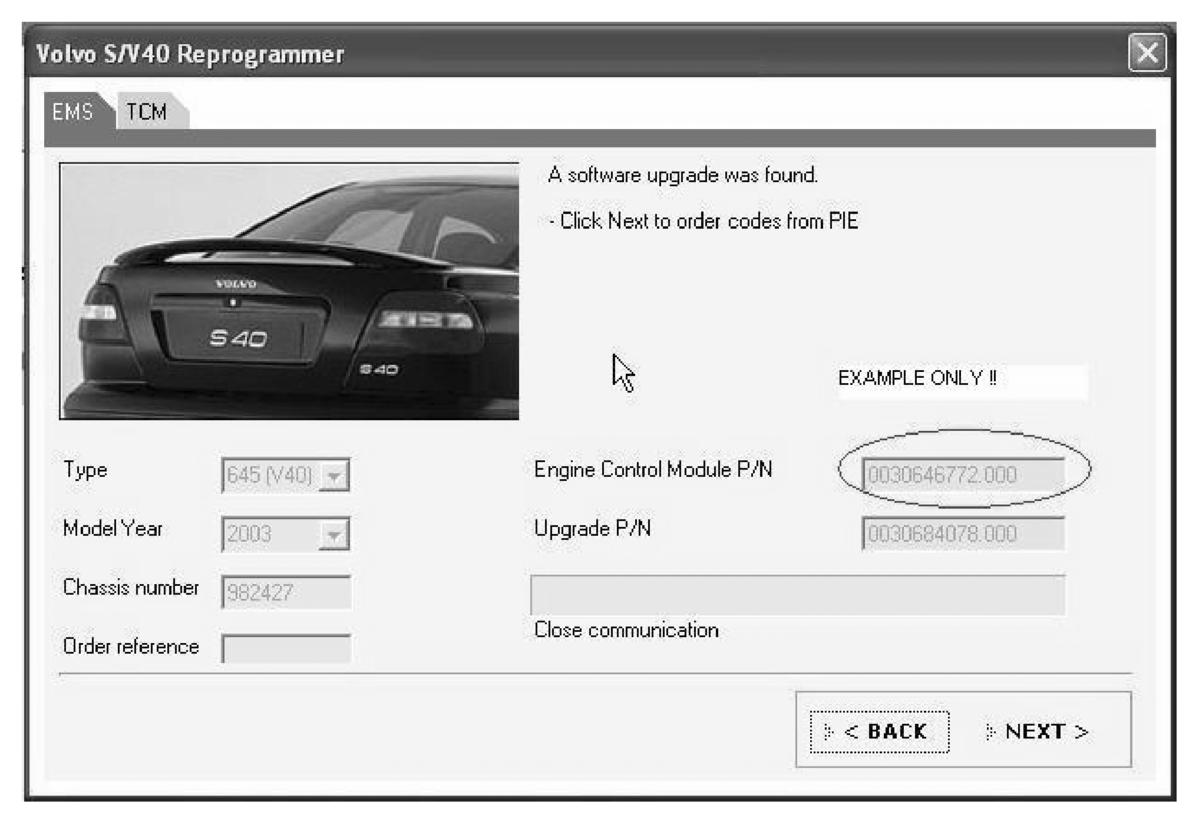

Fig 1: Diagnostic Function Screen Display - Engine Control Module P/N

Courtesy of VOLVO CARS OF NORTH AMERICA.

If any of the following part numbers are visible, the ECM already has the most recent software and does not require an upgrade:

Model year 2000: 0030684459.000 or 0030684460.000

Model year 2001...>: 0030670303.000 or 0030670302.000 or 0030684078.000 or 0030684070.000

If none of these numbers are shown, the ECM will require an ECM programming update.

NOTE: BATTERY CHARGER MUST BE CONNECTED; VOLTAGE SHOULD BE MONITORED, AND SHOULD NOT EXCEED 14 VOLTS DURING THE DOWNLOAD. CHARGER SHOULD NEVER BE SET TO HIGH DURING A DOWNLOAD TO ANY VEHICLE.

After the ECM number is recorded, proceed with the ECM Reprogrammer download as usual. Please note that it is possible that the status bar may not fill in as the download progresses, instead only an hour glass will appear. This is normal do not exit from the download until the status bar does fill in and FINISHED appears in the dialog box. It may take several minutes for the ECM Reprogrammer download to finish.

If during the download, the process stops and / or you receive an "UNHANDLED EXCEPTION" error close all open windows until you are back at the desktop. Remove the key and disconnect the car from PC. Reconnect the car to the PC, turn the key on, restart the VIDA application then restart the ECM Reprogrammer process. When you are asked if the ECM part number is corrupt, say YES . Profile the car as usual then add the 13 digit ECM part number that was recorded in the beginning paragraph into the ECM part number box.

Continue with the ECM Reprogrammer download as usual, and please note that the status bar may not fill in as the download progresses, only an hour glass may appear. This is normal, do not exit from the download until the status bar fills in and FINISHED appears in the dialog box. This may take several minutes.

If you did not record the ECM part number as requested in the first paragraph, and you have received the message that the ECM part number is corrupt, access the ECM and record the part number from the label on it. Use the chart below to find the correct part number to enter in the ECM part number box in VIDA:

ECM NUMBER CHART

MY 2000 ECM number	MY 2000 ECM number>	MY 2001--> ECM number	MY 2001--> ECM number	MY 2001--> ECM number	MY 2001--> ECM number
30614736	30644229	30614884	30644192	30646295	30644193
30614838		30658838		30646916
30614840		30614913		30646772
30614888		30614223		30670304
30614232		30614294
30614305		30614378
30614405		30614408
30614562		30614345
		30646775
Use 0030614888.000	Use 030644229.000	Use 0030614408.000	Use 0030644192.000	Use 0030646772.000	Use 0030644193.000
