Wheel Alignment Data (TJ19674)

WHEEL ALIGNMENT DATA

TECHNICAL SERVICE BULLETIN

ATTACHMENT

File Name	File Size
Attachment TJ 19674.pdf	0.4235 MB

VEHICLE TYPE

Type	Eng	Eng Desc	Sales	Body	Gear	Steer	Model Year	Plant	Chassis range	Struc Week Range
1XX							1999-9999		0000001-9999999	0-0
2XX							2000-9999		0000001-9999999	0-0
3XX							2001-9999		0000001-9999999	0-0
5XX							2004-9999		0000001-9999999	0-0

CSC CUSTOMER SYMPTOM CODES

Code	Description
QF	Steering/Constant pull to left
QG	Steering/Constant pull to right
8V	Tires/Pulls/drifts

VST OPERATION NUMBER

VST Operation Number	Description
60110-2	Wheel angles 4wheels calibrating
60113-3	Toe-in front adjust
60134-3	Rear wheel aligment adjust

DTC DIAGNOSTIC TROUBLE CODES

Rows beginning with * are modified

TEXT

- - -

DESCRIPTION

Wheel angle specifications must be updated more often than the standard VIDA update.

Until further notice, Volvo Cars of North America (VCNA) will use this Technical Journal (TJ) to update and publish current wheel angles for Front Wheel Drive (FWD) and All Wheel Drive (AWD) models.

This TJ is updated when the design department at Volvo Car Corporation (VCC) modifies a value for one or more wheel angles or when a new vehicle model is released.

VEHICLE REPORT

-

SERVICE

For the current wheel alignment specifications, please refer to the attached tables.

Be sure the alignment equipment at your facility is updated.

To view TJ attachment continue to next page. This TJ has 1 attachment.

TJ INSTRUCTION WHEEL ANGLE SPECIFICATIONS

Model C30 / S40 (04-) / V50 / C70 (06-) / V40 (13-) / V40 Cross Country

S60 (-09) / S80 (-06) / V70 (00-08) / V70XC (01-) / XC70(-07) / XC90

S60 (11-) / S60L / V60 (11-) / S80 (07-) / S80L / V70(08-) / XC60 / XC70(08-)

Model Year All

Issue	Date	Reason
15	Sept-15	Updated car profile S80 (07-) with CHASSI 3
14	Feb-15	Updated the incorrect values and units in the documents.
13	Dec-14	Updated wheel angels for V40/V40CC.
12	Oct -14	Updated wheel angel specification for new model V60 CC Updated wheel angel specification for new model S60 / V60 Polestar Updated wheel angel specification for V40 (13-)/V40 CC, new Chassi settings
11	Oct -14	Toe measurement across both wheel, front XC90 (-15)
10	May -13	Variation and adjustment values are added to all previous control values. A number of specific values are updated.
09	Aug -12	Updated wheel angle specifications for - V40 (13-) Caster measurement
08	Nov -12	Wheel angle specifications for new models - V40 (13-) & V40 Cross Country
07	Feb -11	Wheel angle specifications for new model - V60 (11-)
06	July -10	Values updated for S60 (11-) thrust angle (step 7).
05	July -10	Toe measurement across both wheels, front XC90 2009-
04	July -10	Wheel angle specifications for new model - S60
03	Febr -10	Variation and adjustment values are added to all previous control values. A number of specific values are updated.
02	April -09	Wheel angle specifications for new model - S80L

1. NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
2. This instruction will be updated when the designing department at Volvo Car Corporation (VCC) decides to modify a value for one or more wheel angles or when a new vehicle model is released.
   NOTE: New toe values. The check value is used when measuring wheel angles. When adjusting, use the adjustment value, however, if the value is within the check value, adjustment is not necessary.

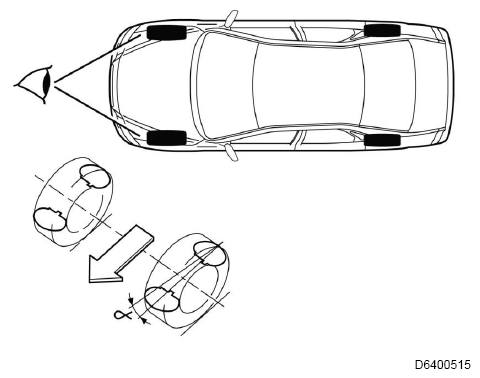

3. Toe

   Adjusting to positive values generates toe-in angle while adjusting to negative values generates toe-out angle.

   NOTE: All published toe values are for total toe measurement (left and right wheels together).

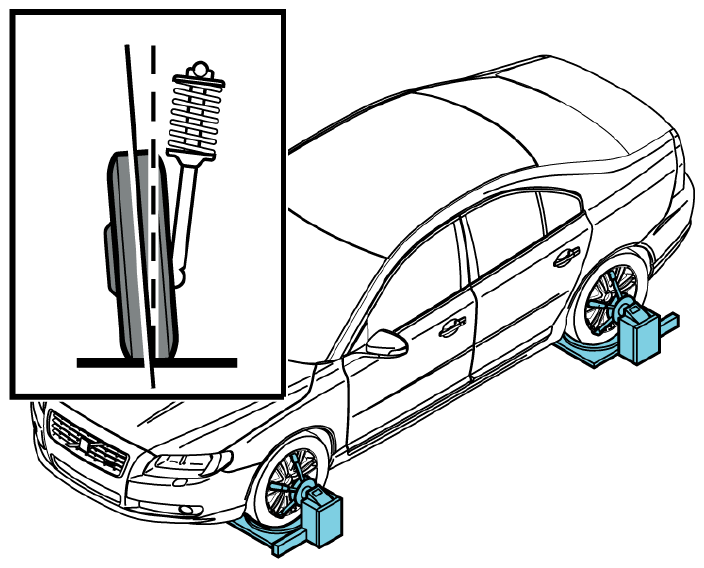

4. Camber

   The graphic shows a positive camber angle, and the dashed line equals the plumb line.

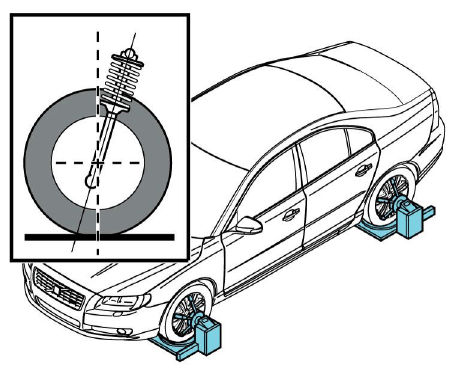

5. Caster

   The graphic shows a positive caster angle.

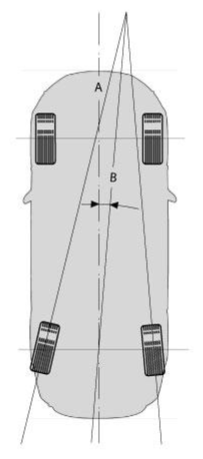

6. Thrust angle
   1. center line
   2. thrust angle
7. Thrust angle (B)
   THRUST ANGLE SPECIFICATION



   Model	Control value		Adjust value
   	Degrees	Degree minutes	Degrees	Degree minutes
   S60 (11-) V60 (11-) XC60 (09-) S60L V60 CC (15-)	0° ± 0.20°	0° ± 0°12'	0° ± 0.10°	0° ± 0°6'
   S80 (07-) V70 (08-) XC70 (08-)	0° ± 0.20°	0° ± 0°12'	0° ± 0.10°	0° ± 0°6'
   V40 (13-) V40 Cross Country	0° ± 0.20°	0° ± 0°12'	0° ± 0.10°	0° ± 0°6'
   XC90 (-15)	0° ± 0.25°	0° ± 0°15'	0° ± 0.10°	0° ± 0°6'
   Other models	0° ± 0.25°	0° ± 0°15'	0° ± 0.25°	0° ± 0°15'

C30/S40 (04-)/V50/C70 (06-)

S80 (-06)/V70 (00-08)/V70XC (01-)/XC70 (-07)/S60 (-09)/XC90

S80 (07-)/V70 (08-)/XC70 (08-)/XC60/S60 (11-)/V60 (11-)
