Checking And Re-Routing Windscreen Washer Hoses (36-0021)

CHECKING AND RE-ROUTING WINDSCREEN WASHER HOSES

TECHNICAL SERVICE BULLETIN

BACKGROUND

This Service Bulletin describes how the windscreen washer hoses should be checked/adjusted when having decreased washer function.

Model	Factory	Chassis No.
S40,V40	---	415000-729651

Description	Quantity	Part No.
Nipple (For vehicles without headlamp wash/wipe)	1	1369856
Hose	+/- 15 0 cm (~ 59 in)	949931
Clip (MY 2000 vehicles only)	1	30899356

WINDSCREEN WASHER HOSES, CHECKING AND RE-ROUTING

Windscreen washer hoses, checking and re-routing

1. Checking position of hose and hose routing (see Fig 1 )

   Check the hose on the left and right side nozzle: it should not be kinked and should form a loop (A) of not less than 35 mm (~ 1 3/8 in.).

   NOTE: The hose must in no way be pinched or kinked, nor have any tendency to kink.

   On the right side, check if the hose is pinched by the hood insulation panel (B). If necessary, mark where material needs to be removed.

   If the hose is pinched by the hood insulation only: Remove material from the hood insulation panel as marked to ensure that the hose lies in place freely.

   If further obstructions, such as pinching or kinking, are found elsewhere, see the following method.

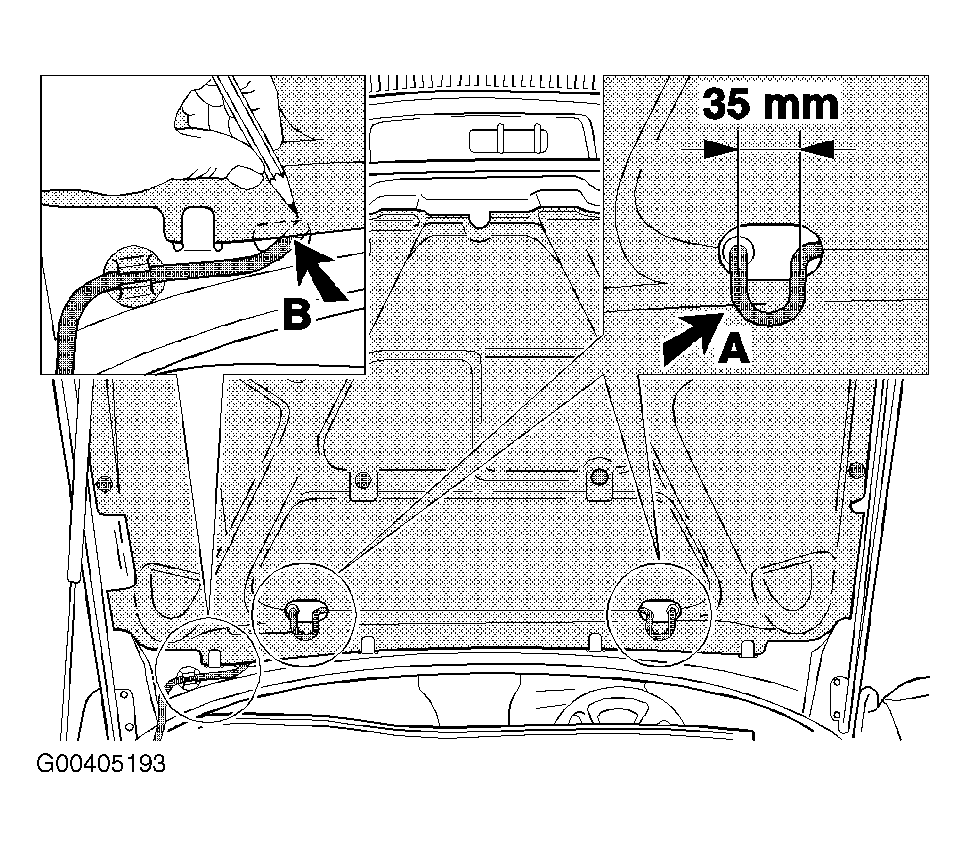

   Fig 1: Checking Hose & Hose Routing Positions


2. Rectify nozzle connections if necessary (see Fig 2 )

   Remove hood insulation panel completely.

   NOTE: Always replace existing hoses with new hose. Fit so that pinching cannot occur when hood insulation panel is refitted.

   Cut hose to the correct length:

   Left: +/- 560 mm (~ 22 1/16 in).

   Right: +/- 160 mm (~ 6 5/16 in).

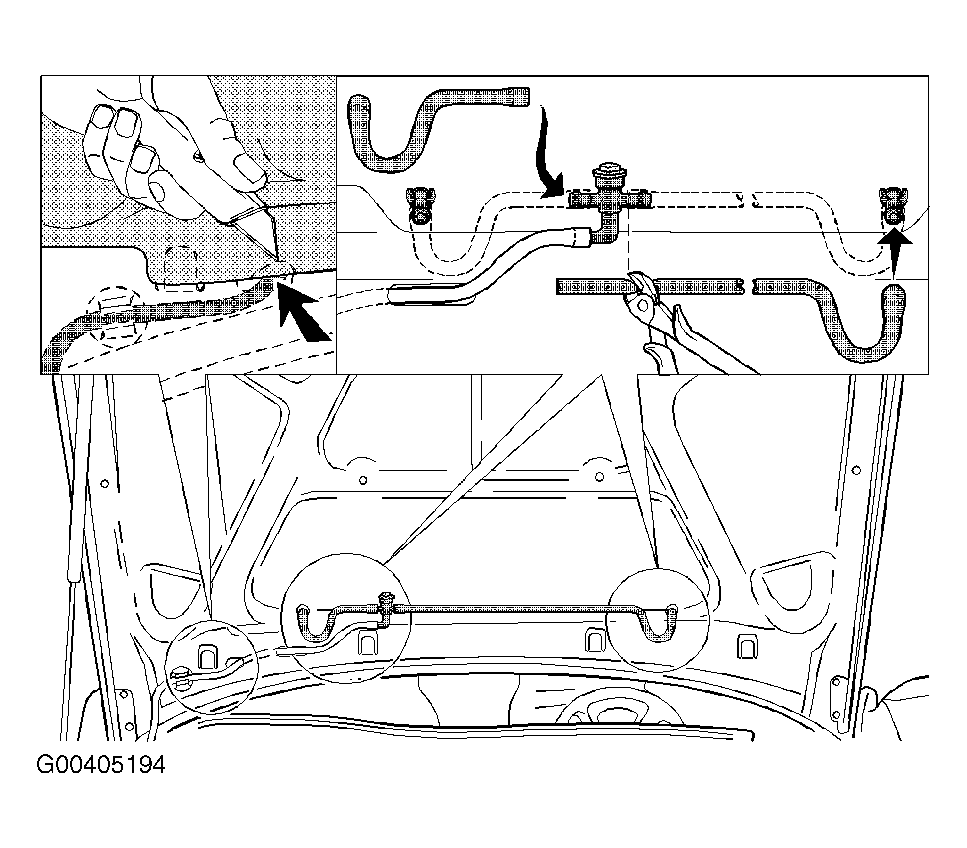

   Fig 2: Rectifying Nozzle Connections


3. Affected vehicles: 2000-2001, cars with headlamp wash/wipe (see Fig 3 )

   Replacing hose from T-valve on inner fender to T-valve on hood

   Remove:

   • hose bend (C) from its fastening on the hood (MY 2000)
   • hose (G) that runs from connection (D) along the inner fender to connection (E).

   Install new clip (C) (MY 2000 vehicles).

   Slide new hose (G) through the mounted clip (C) and through openings (A) in hood by the T-connector (E) and connect.

   Push hose (G) into clip (B) on inner fender and pull straight through to the front. (do not bend)

   Measure off a length of hose (G) sufficient to reach T-connector (D), and cut to length. Connect the hose to the T-connector.

   NOTE: Verify that the hose fits snug along the inner fender and does not kink or pinch when closing the hood.

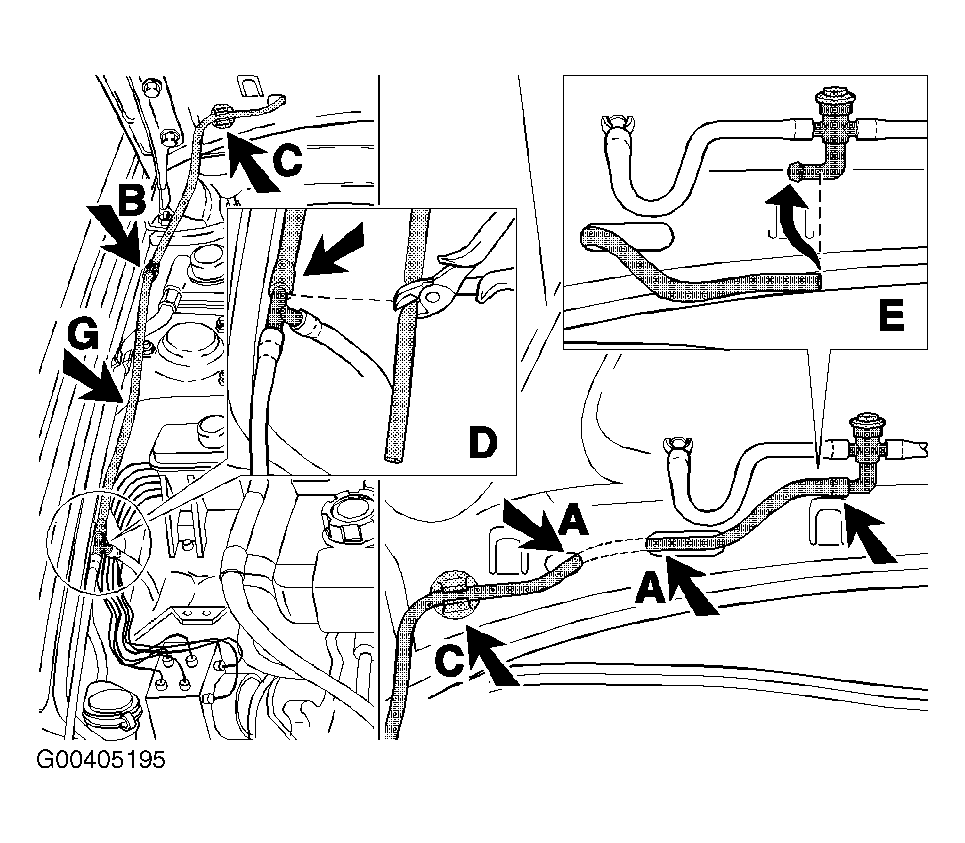

   Fig 3: Replacing Hose (Cars w/Headlamp Wash/Wipe)


4. Affected vehicles: 2000-2001, cars without headlamp wash/wipe (see Fig 4 )

   Replacing hose on inner fender to T- valve on hood

   Remove:

   • hose bend (C) from its fastening on the hood (MY 2000)
   • hose (G) from connection (E).

   Place a rag over the ABS unit.

   Cut through and remove hose (G) above ABS unit (H).

   Install new clip (C) (MY 2000 vehicles).

   Slide new hose (G) through clip (C) and openings (A) in bonnet by T-connector (E) and connect.

   Push hose (G) into clip (B) on inner fender and pull it straight through to the front. (do not bend)

   Install nipple (F) into the hose coming from windscreen washer reservoir.

   Measure off a length of hose (G) sufficient to reach nipple (F), and cut to length. Install hose to the nipple.

   Remove rag from the ABS unit.

   NOTE: Verify that the hose fits snug along the inner fender and does not kink or pinch when closing the hood.

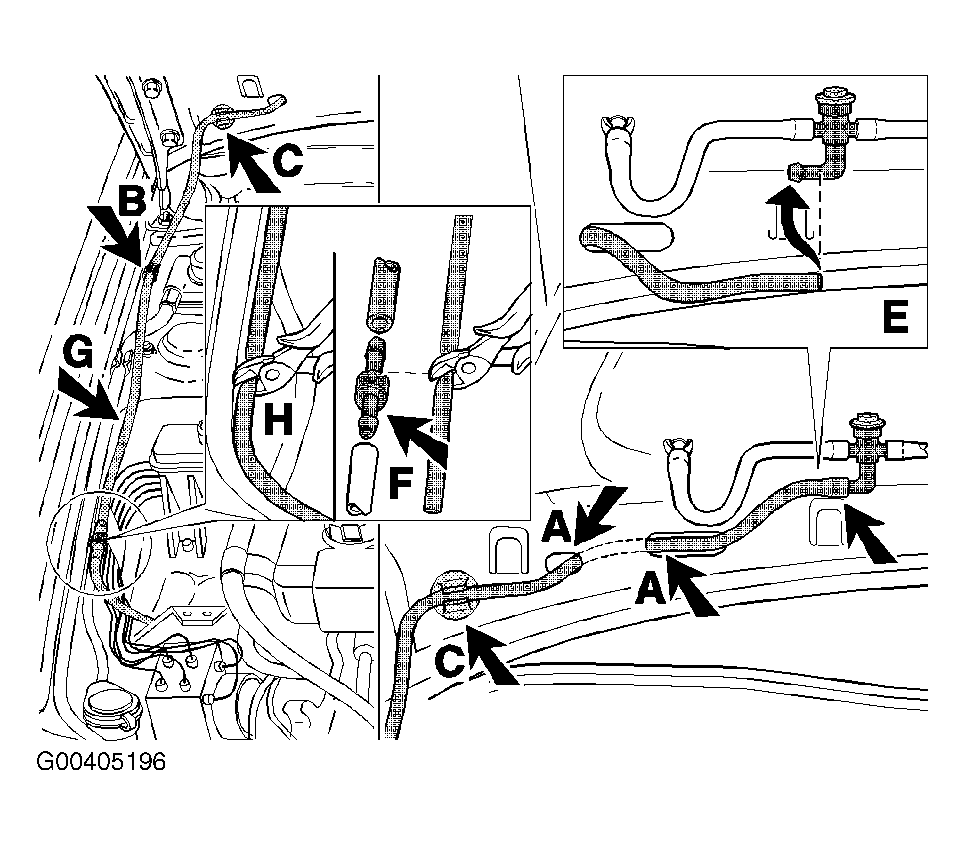

   Fig 4: Replacing Hose (Cars w/o Headlamp Wash/Wipe)


5. Installing and function check (see Fig 5 )

   Ensure that the hose lies in place freely.

   Reinstall hood insulation panel. Be sure to fit behind recess and fix in place with clip. Recheck run of hose to windscreen washer nozzles.

   Close the hood.

   Check windscreen washer function.

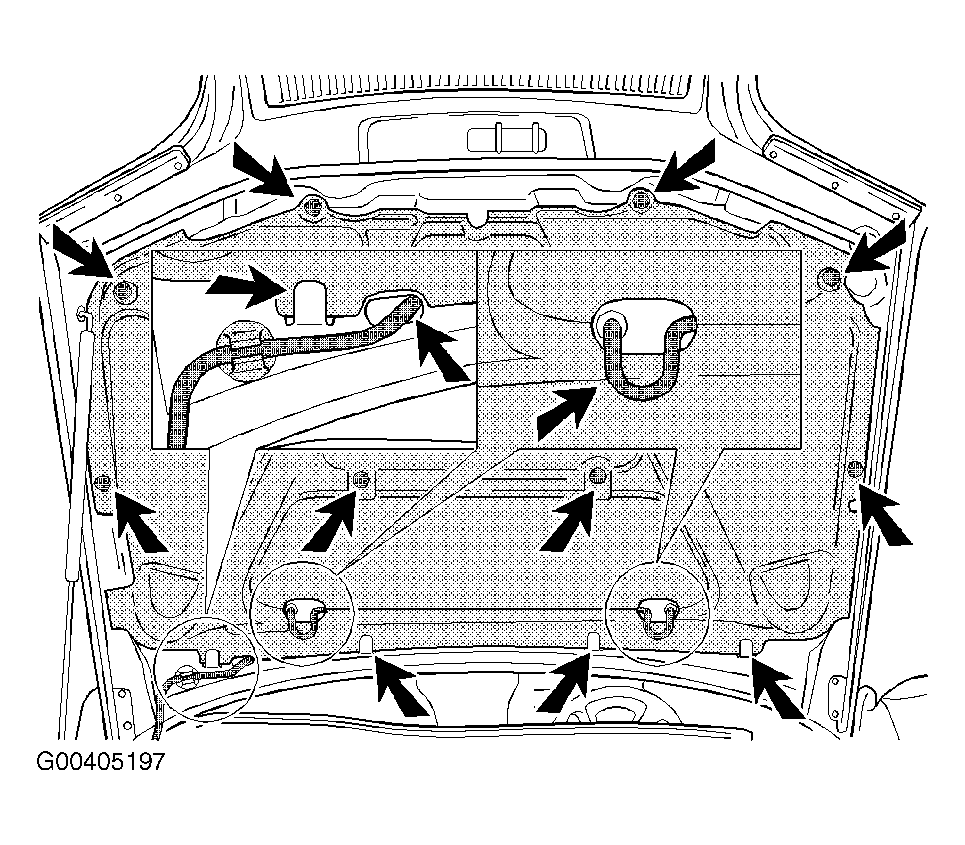

   Fig 5: Inspecting Hose



WARRANTY STATEMENT  : Claims may be submitted under the New Car Warranty when there is a documented customer complaint, using claim type 01.

Operation No.	Labor Description	Time Allowance
36932-3	Hoses windshield washers hood replace	0.2 hr
36933-2	Hoses windshield washers control replace	0.4 hr
