Servicing - Fwd (Aw50-42): Identification

TRANSMISSION IDENTIFICATION

Application Transmission Model
S40 & V40 AW50-42, 4-Speed

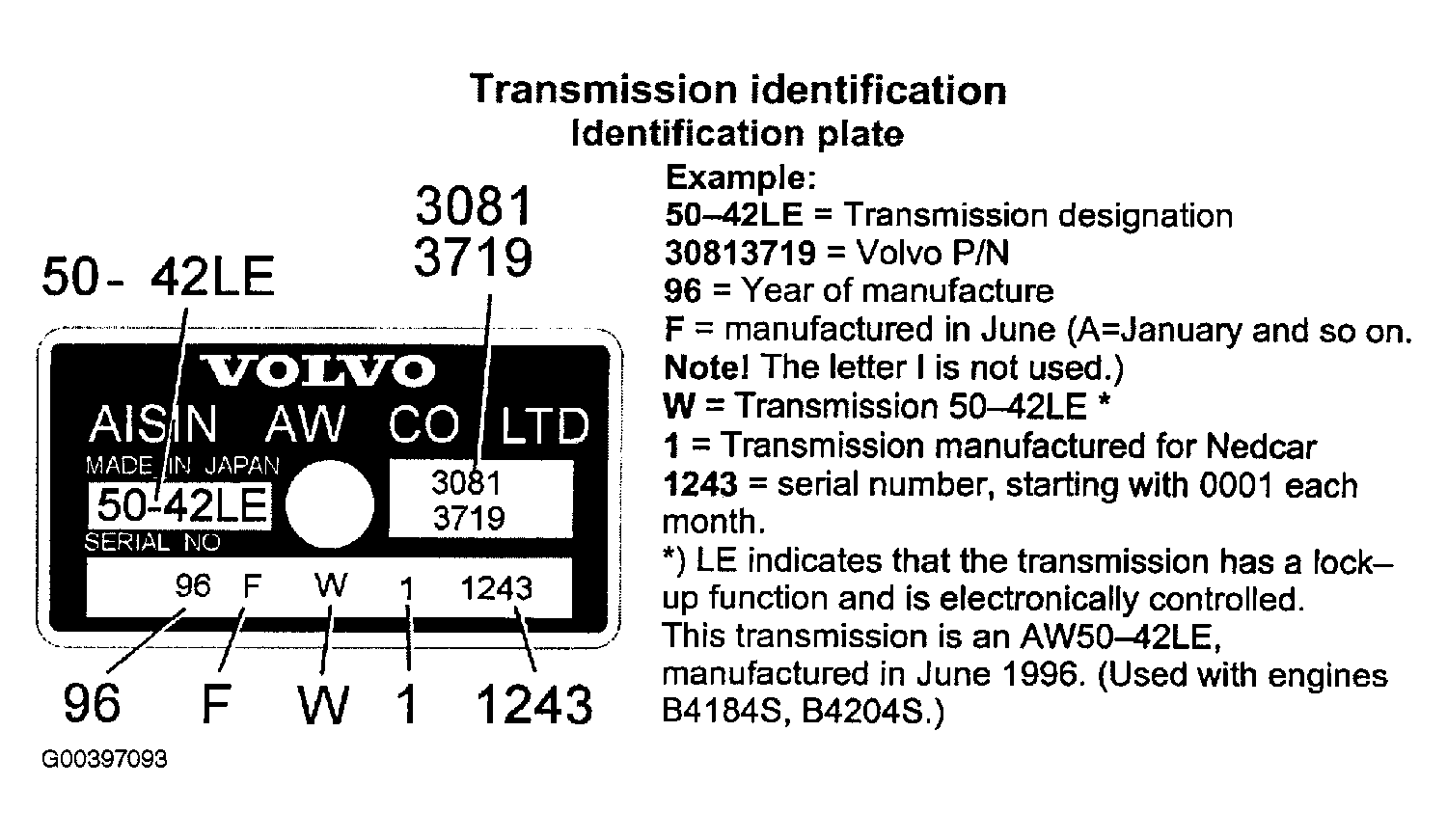

Fig 1: Transmission Identification Plate
G00397093Courtesy of VOLVO CARS OF NORTH AMERICA.
