Installing Cover

Install:

• Control system cover on transmission. Tighten screws (Torx TX40) alternately
• Oil pipe to transmission with a new O-ring. Apply a little gasolineeum jelly to the O-ring. Tightening torque: 10 Nm.
• Return oil pipe to the control system cover. Tighten cap nut from above. See Fig 1 .

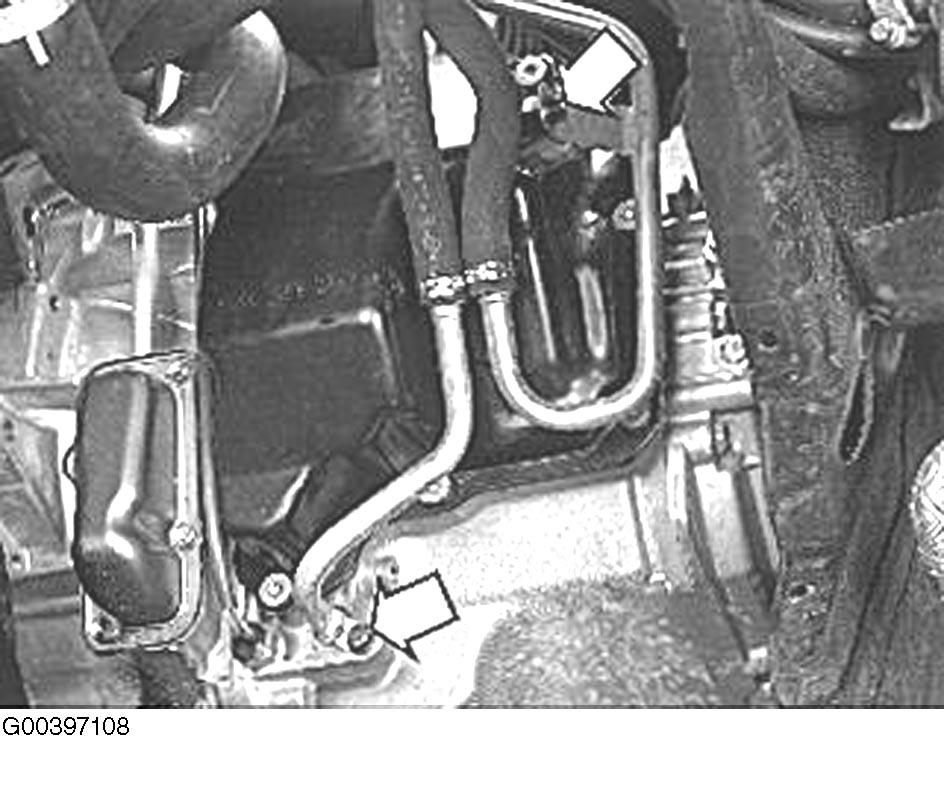

  Fig 1: Installing Oil Pipes To System Cover

  Courtesy of VOLVO CARS OF NORTH AMERICA.
• Screw to pipe holder on cover. Tightening torque: 10 Nm.
• Splash guards under engine.
• Splash guard under left wheel arch.

Lower the car.
