Installing Components

Connect the sensor connectors. See Fig 1 . Install the connectors on the bracket Install the bracket. Torque: 10 Nm. Secure the cable harness to the bracket. Use a tie strap. Install the air cleaner (ACL) housing.

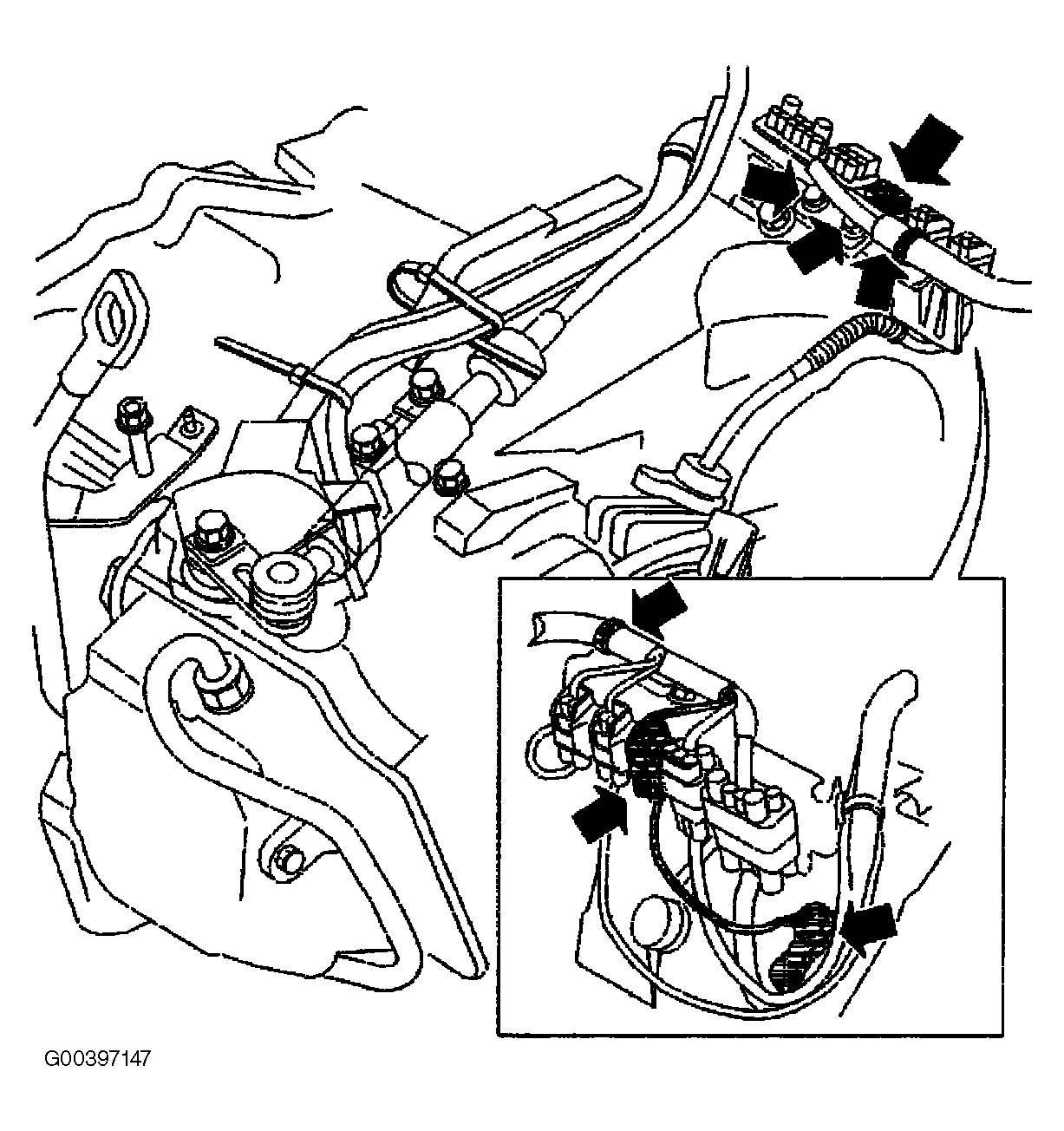

Fig 1: Connecting Sensor Connectors

Courtesy of VOLVO CARS OF NORTH AMERICA.
