Section 2 (Generators & Regulators - Specifications): Overhaul

WARNING: This page is about a different car, the 2000 Volvo C70 and 1999 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: See Fig 1 for exploded view of Bosch generator. Illustration of Valeo generator is not available.

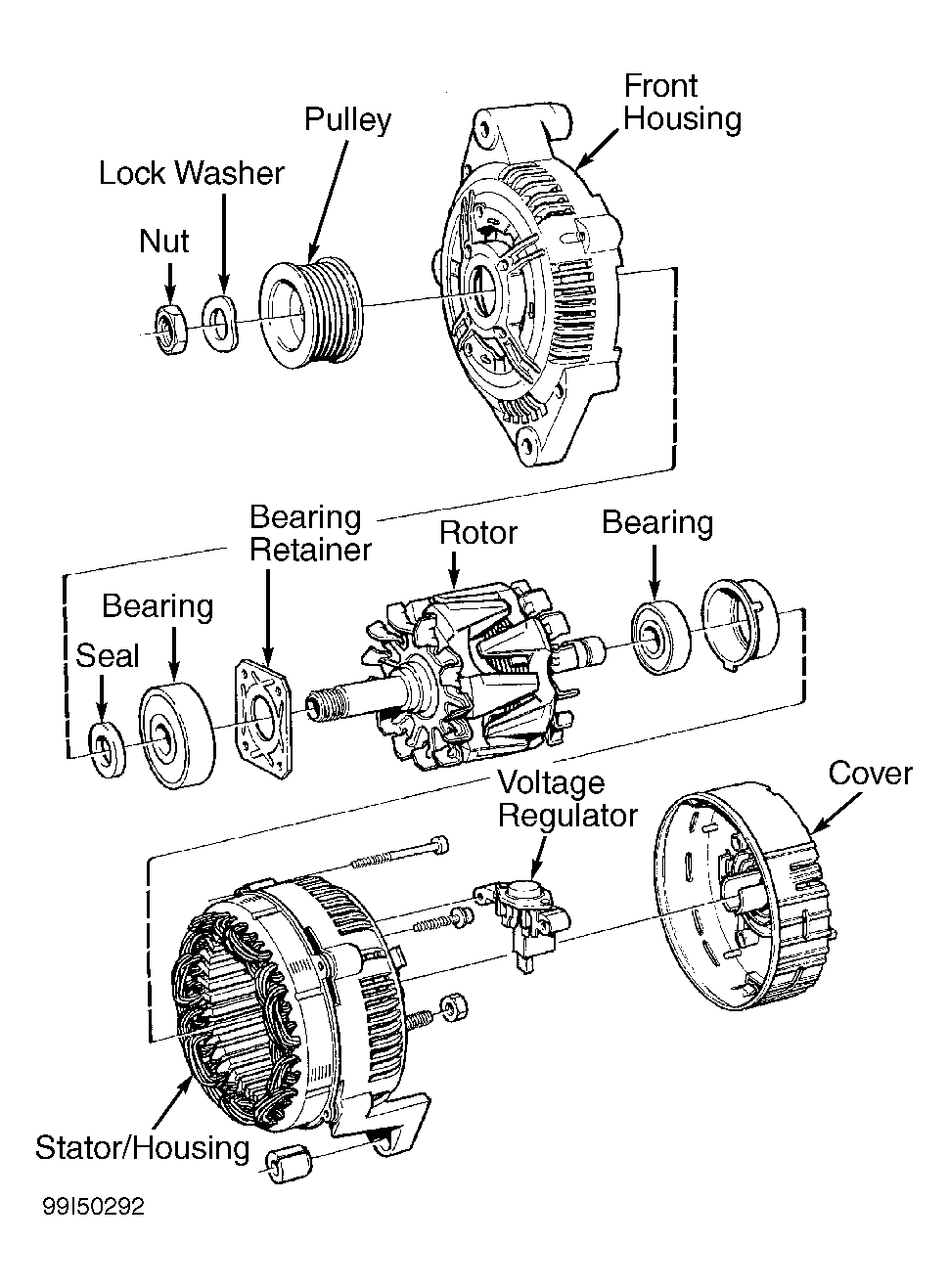

Fig 1: Exploded View Of Bosch Generator (Typical)

Courtesy of VOLVO CARS OF NORTH AMERICA
