Instrument Cluster: Installation

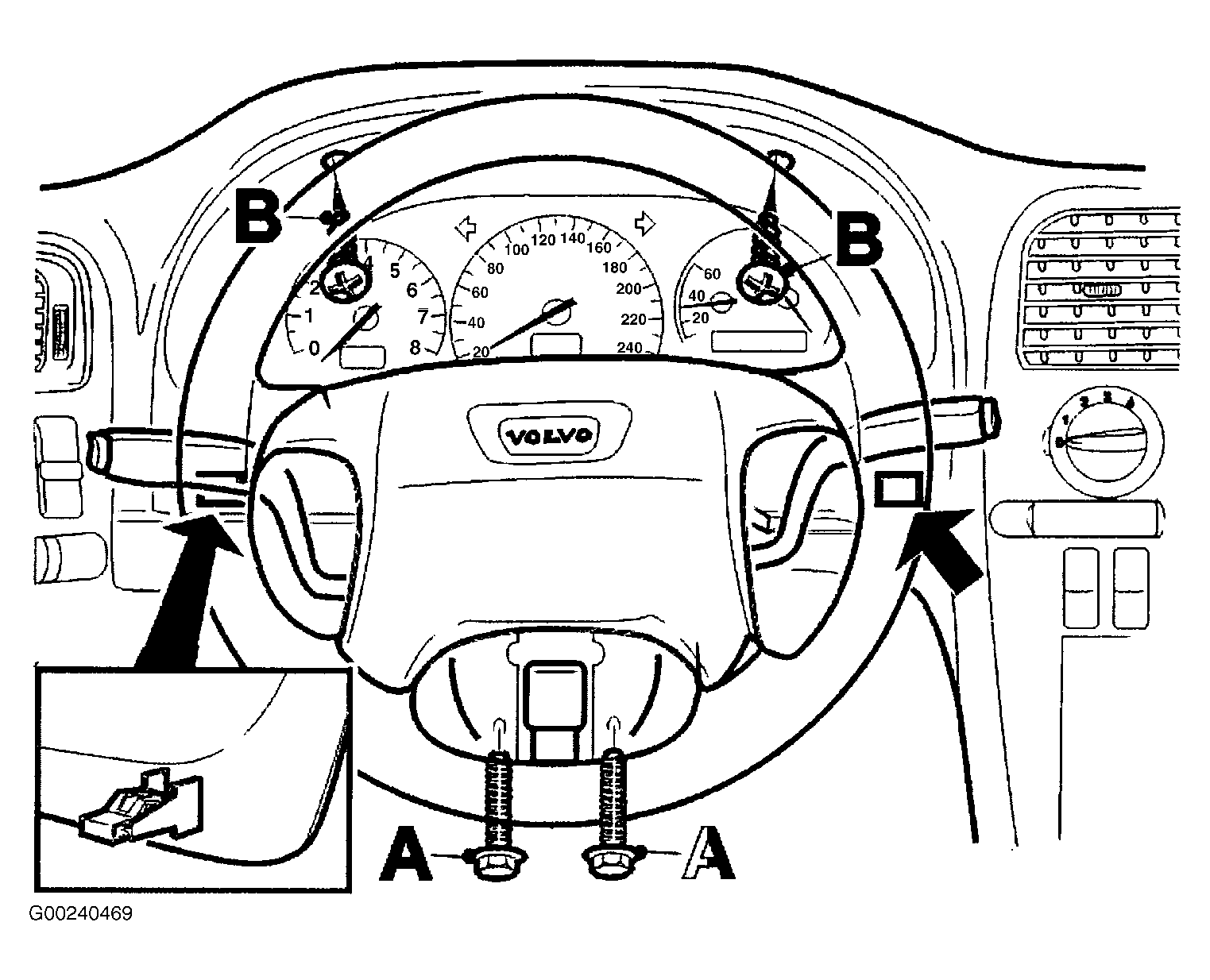

Position the combined instrument panel. Check that the connectors and the speedometer cable (if applicable) are correct for the combined instrument panel. Press the combined instrument panel into place. Install the surround around the combined instrument panel. Install the two screws (B) without sharp tips. Lift up the steering shaft. Install the two screws (A). See Figure. Tighten to 16 ft. lbs. (21 N.m).
