Reinstalling control system

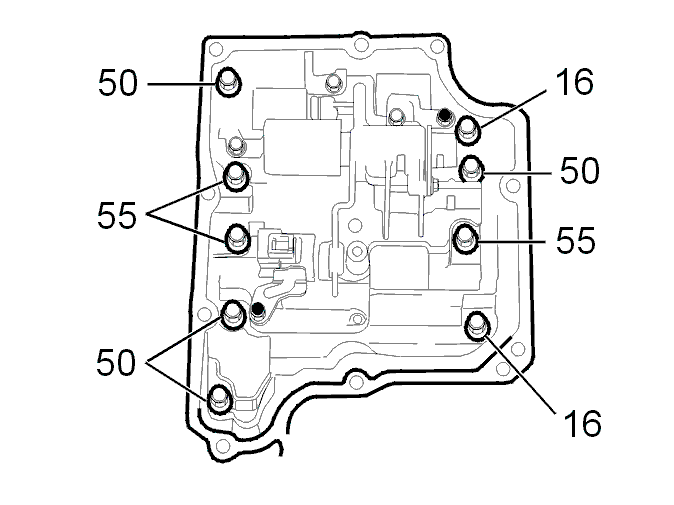

Fig 1: Identifying Control System Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install control system in transmission.

Insert arm on gear selector slide in hole in gear selector cam.

Install screws. Note that screws are of different lengths (measured in mm.).

NOTE: Tighten screws alternately.

Tightening torque: 8 Nm .

Install cover with new gasket.

Tightening torque: 10 Nm .
