Assisted Air Control Valve (AACV): Notes

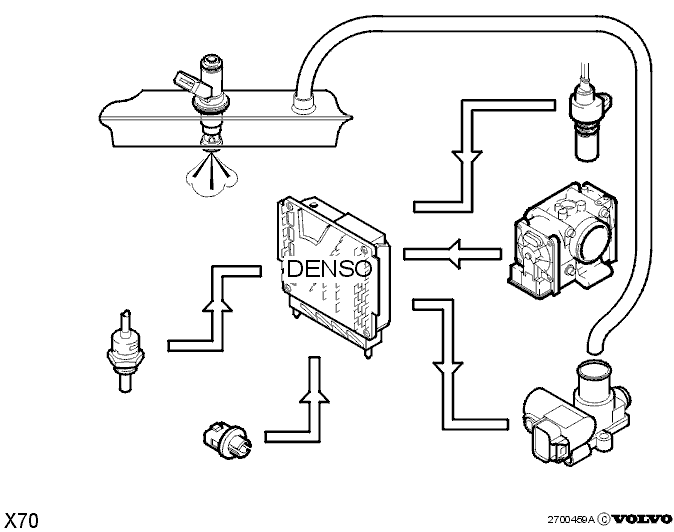

Fig 1: Identifying Assisted Air Control Valve (AACV)

Courtesy of VOLVO CARS OF NORTH AMERICA.

The Assisted air control valve has the task of supplying the air surrounded injectors with air. This results in better volumetric efficiency, more effective combustion and therefore cleaner exhaust emissions. The valve is also used for idle air trim but is also slightly open at higher engine speeds and is then held in standby mode.
