Electronic Throttle System (ETS): Notes

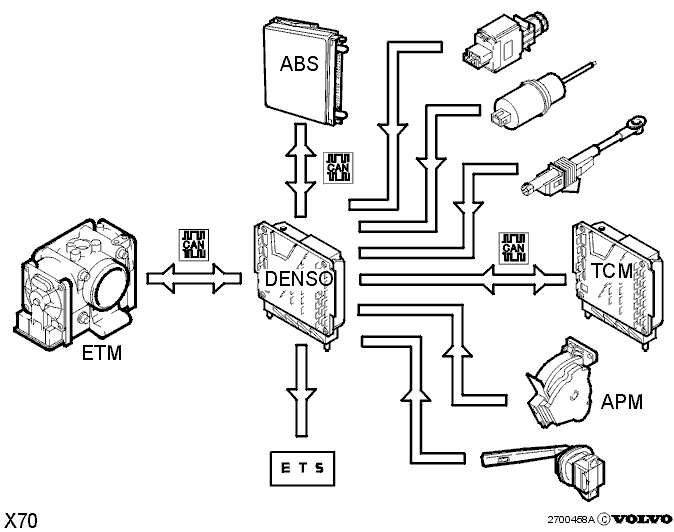

Fig 1: Identifying Electronic Throttle System (ETS)

Courtesy of VOLVO CARS OF NORTH AMERICA.

The Electronic throttle system is an electronically controlled throttle system which consists of an electronic throttle module and accelerator pedal (AP) position sensor. The system has no mechanical links or cables.
