Sunroof Control Module SRM Connector End View (4/33)

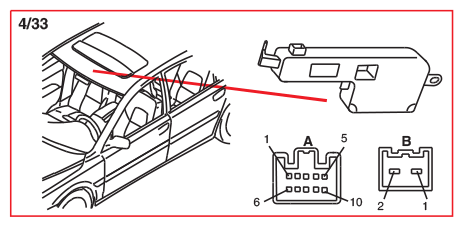

Fig 1: Sunroof Control Module SRM Connector End View (4/33)
Courtesy of VOLVO CARS CORPORATION
Courtesy of VOLVO CARS CORPORATION
