Fuel pressure sensor

Operation Number(s): 28406-3

Materials:
Designation	Part number
Lubricant	1161580

NOTE:

Removal steps in this procedure may contain installation details.

Depressurize the fuel system. Fuel system pressure release

WARNING:

Wear protective goggles.

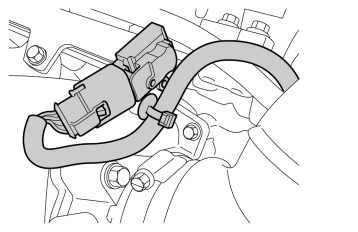

Fig 1: Identifying Cable Tie And Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Blow clean with compressed air around the fuel pressure sensor.

Remove the following items:

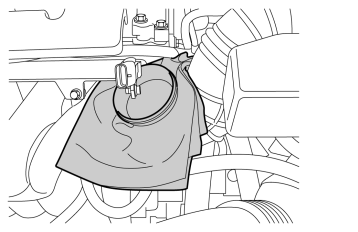

Fig 2: Identifying Paper Placed Under Fuel Pressure Sensor

Courtesy of VOLVO CARS OF NORTH AMERICA.

Place paper under the fuel pressure sensor to take care of any petrol that may remain in the fuel distribution pipe.

Cut out the bottom of a plastic bottle and place on the paper.

Remove the fuel pressure sensor.

Fig 3: Identifying Cable Tie And Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lubricate the O-ring on the new fuel pressure sensor.

Install the following items:

Start the engine and check that there are no leaks.
