Engine Compartment Fuse Box

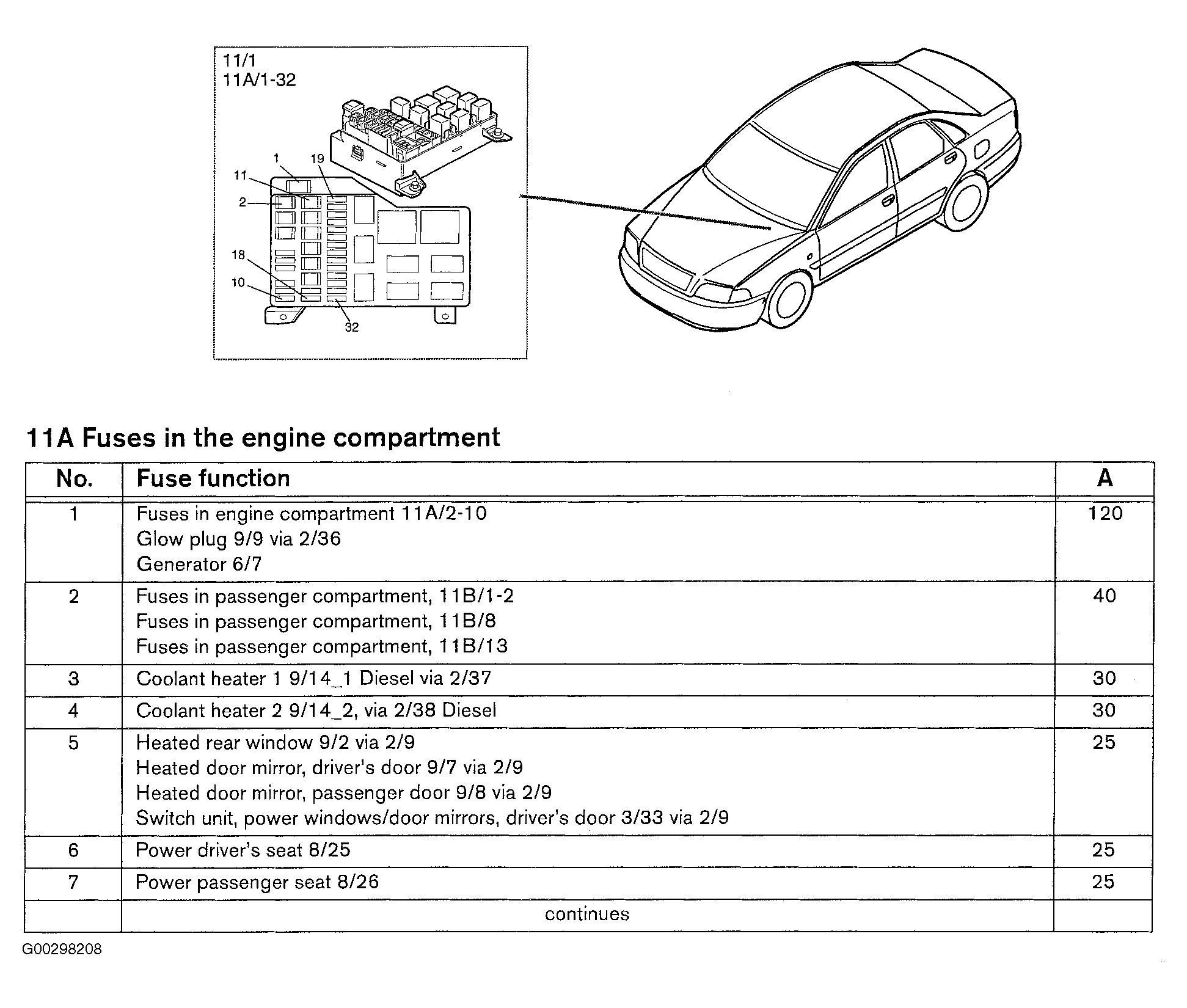

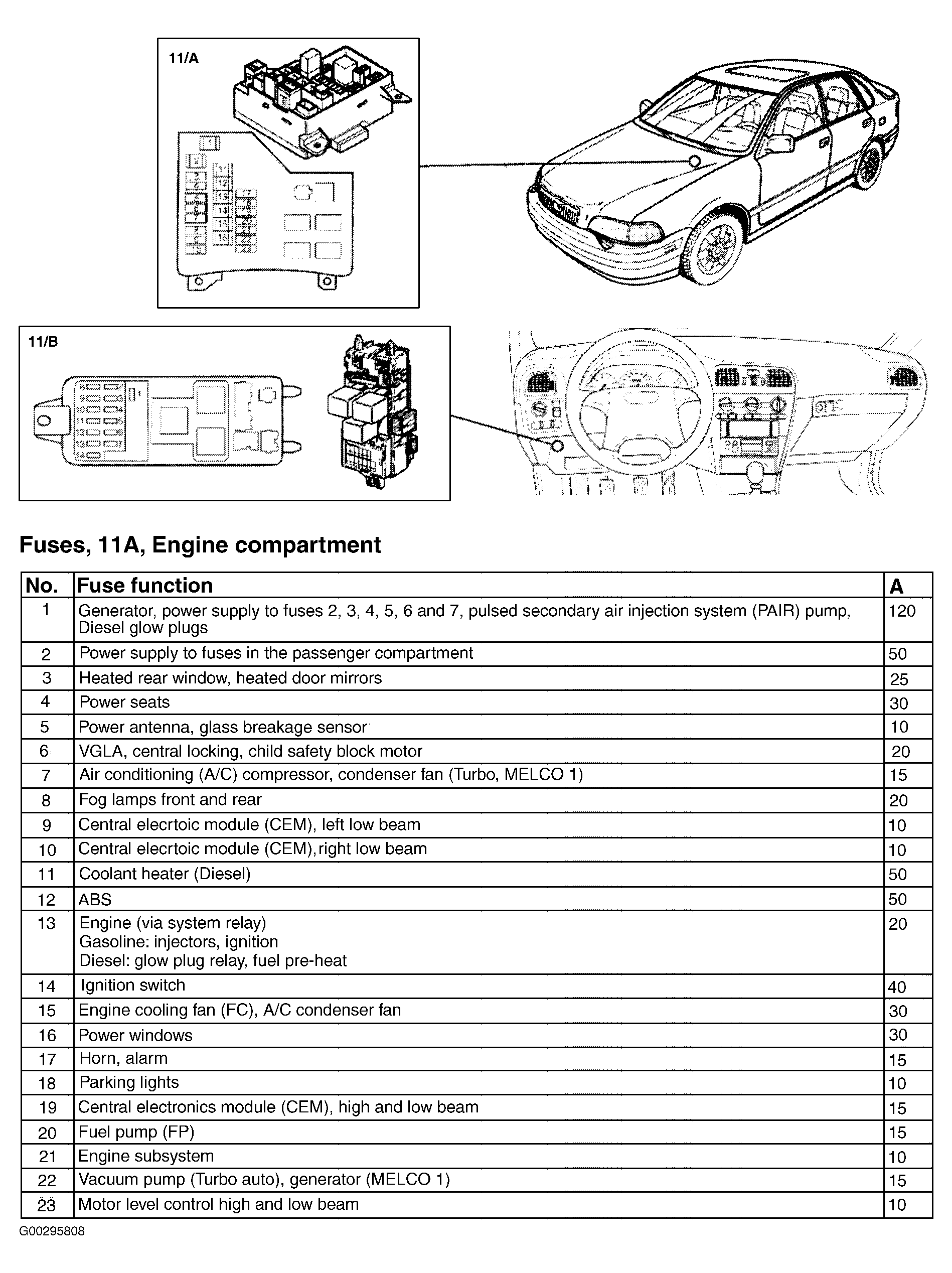

Fig 1: Identifying Engine Compartment Fuse Box Fuses (2000)

Courtesy of VOLVO CARS OF NORTH AMERICA.

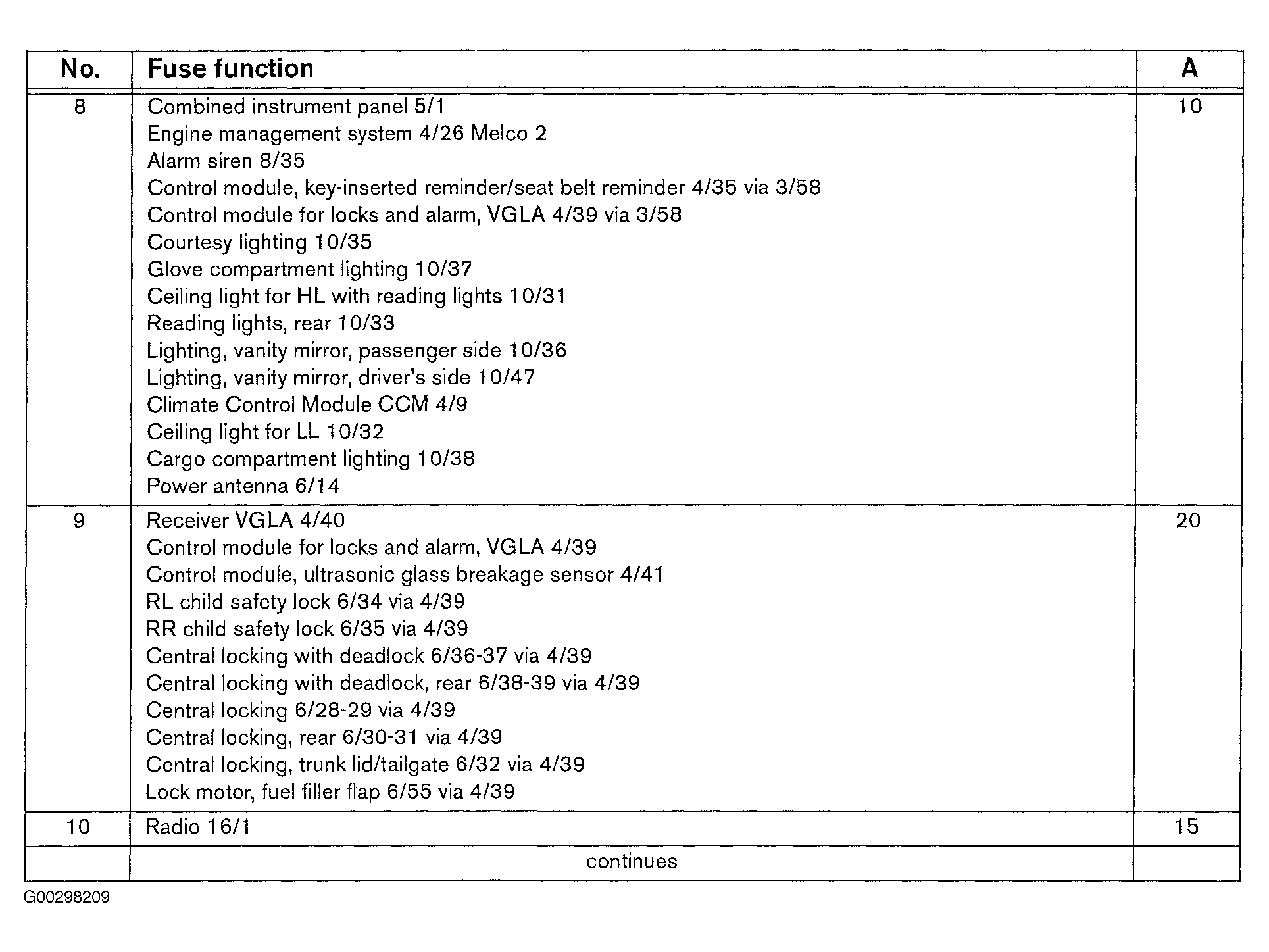

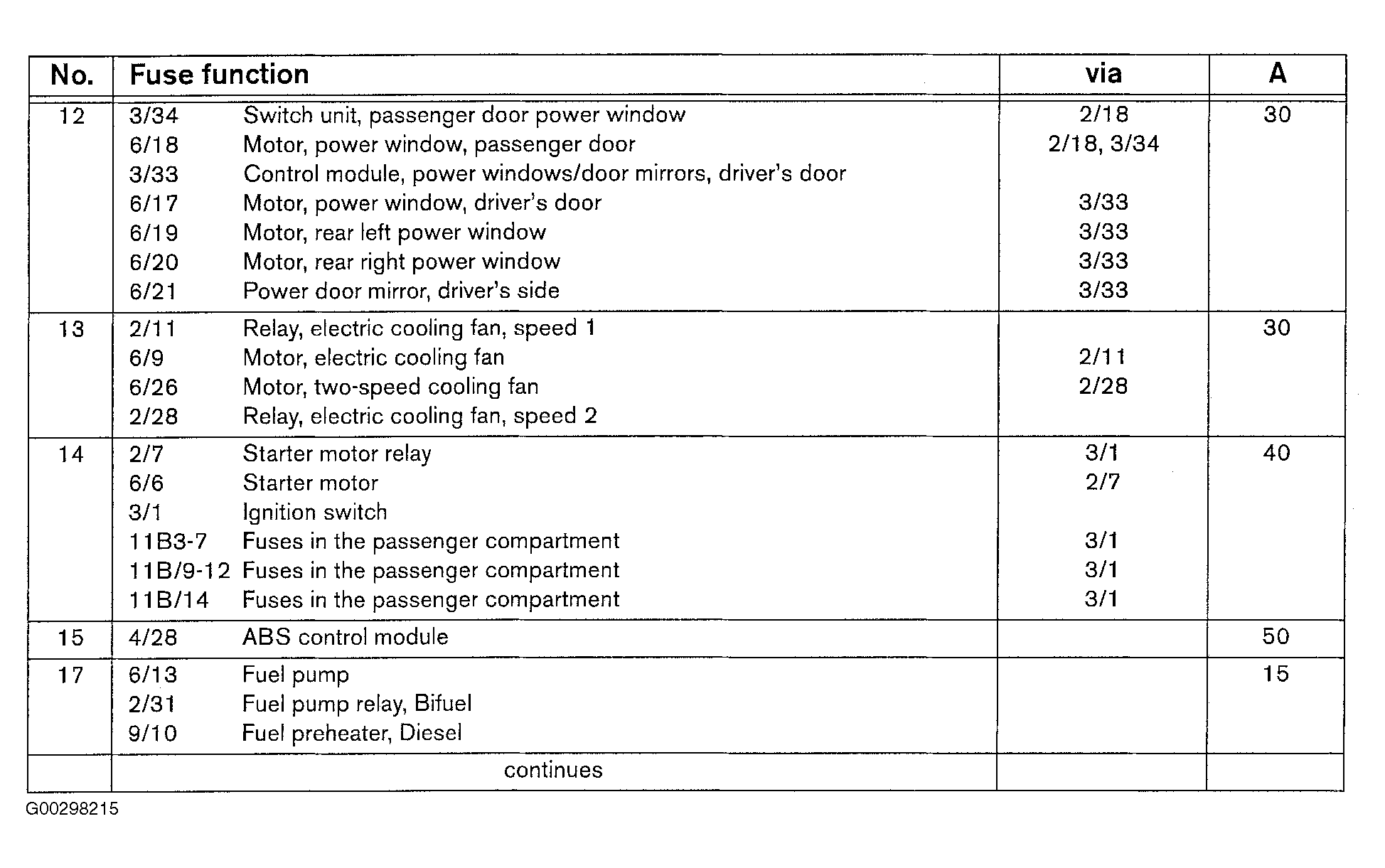

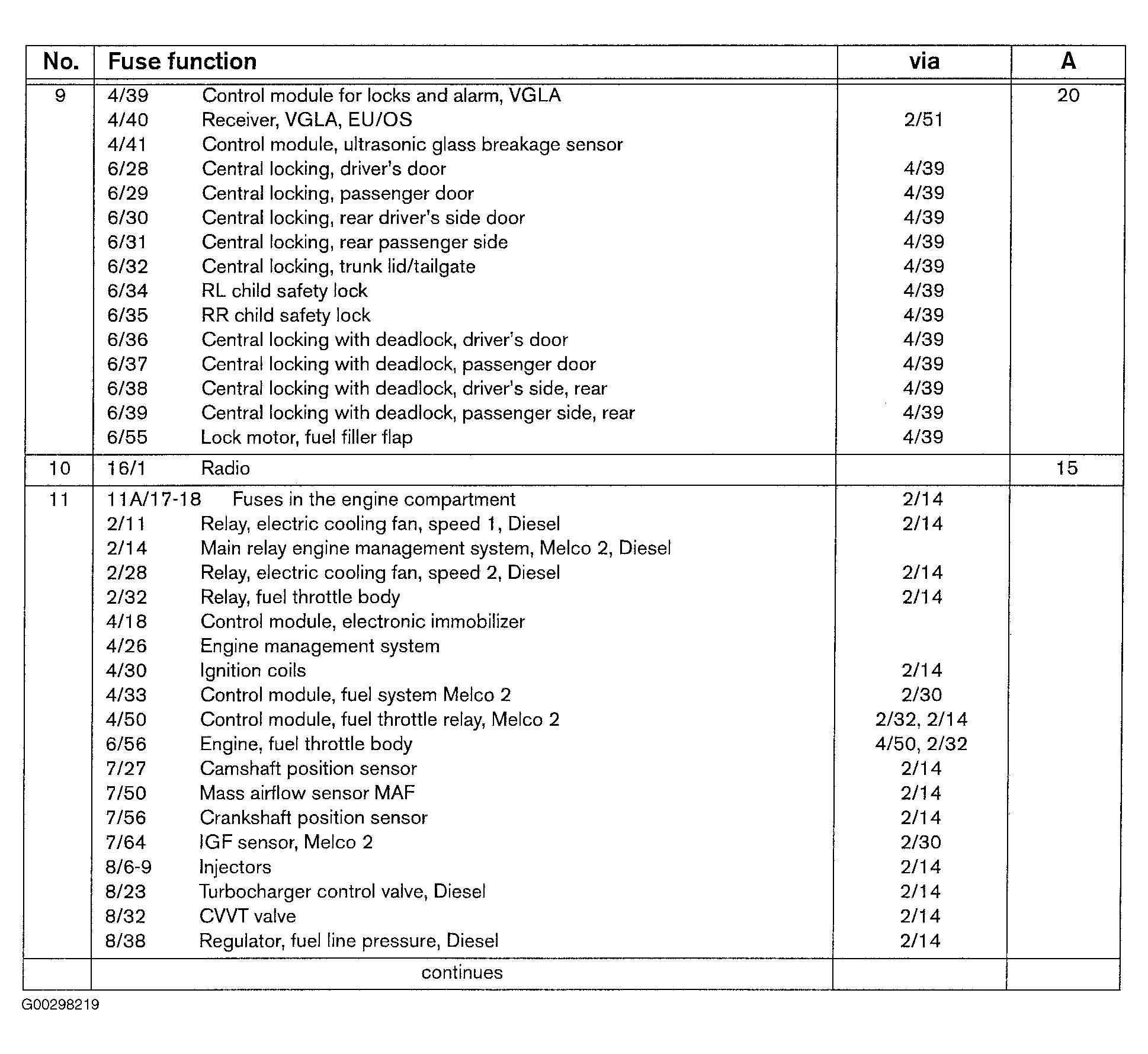

Fig 2: Identifying Engine Compartment Fuse Box Fuses (2001)

Courtesy of VOLVO CARS OF NORTH AMERICA.

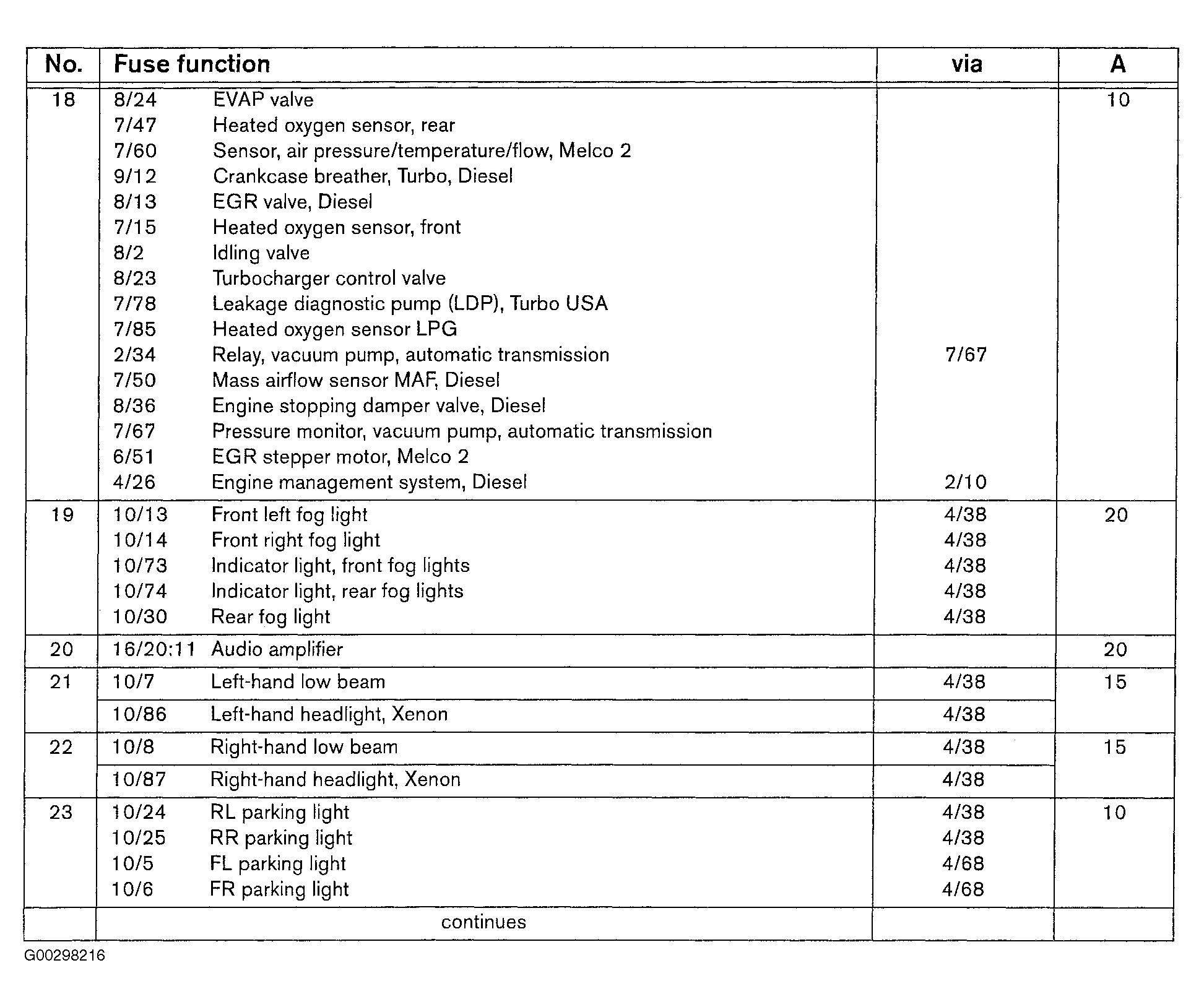

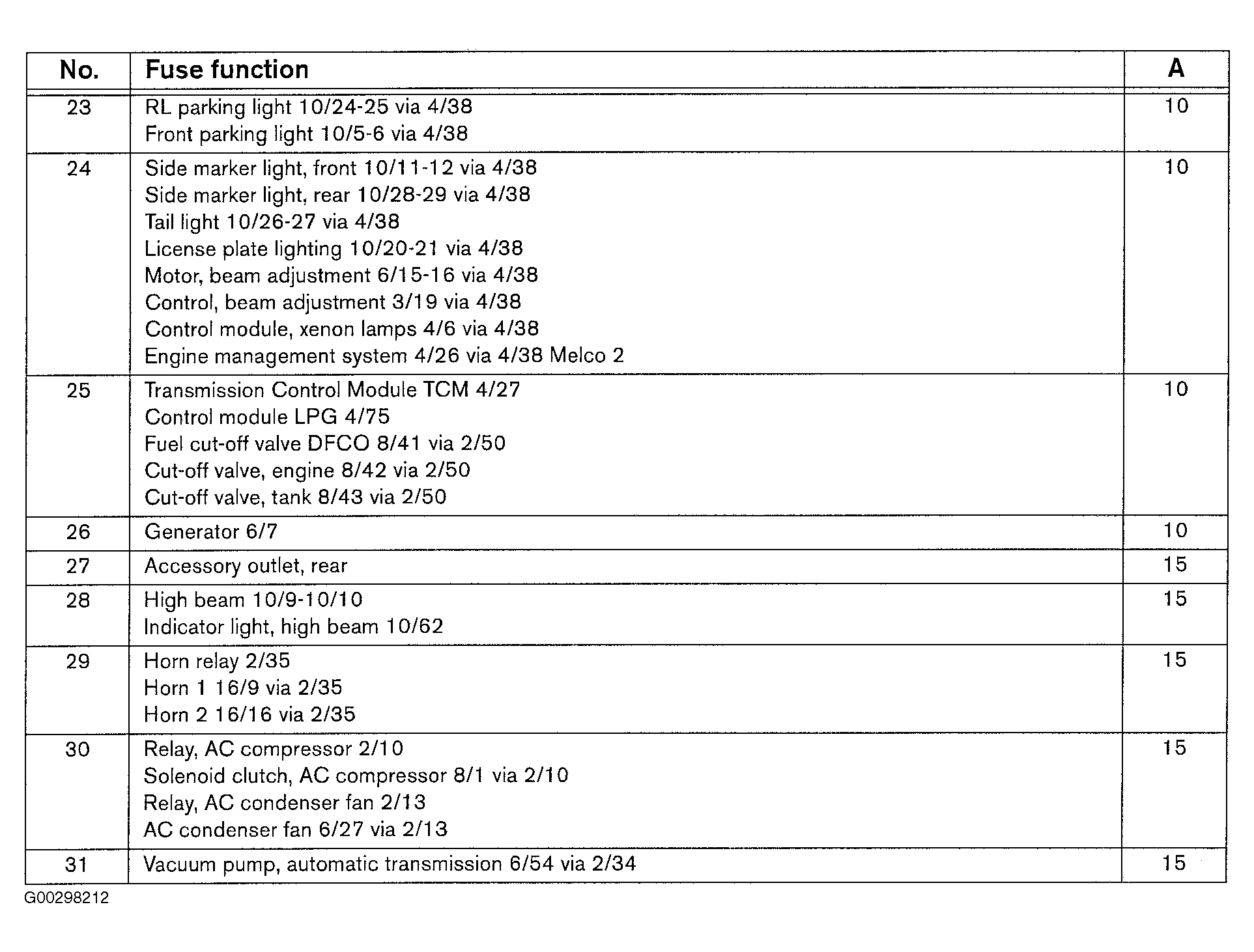

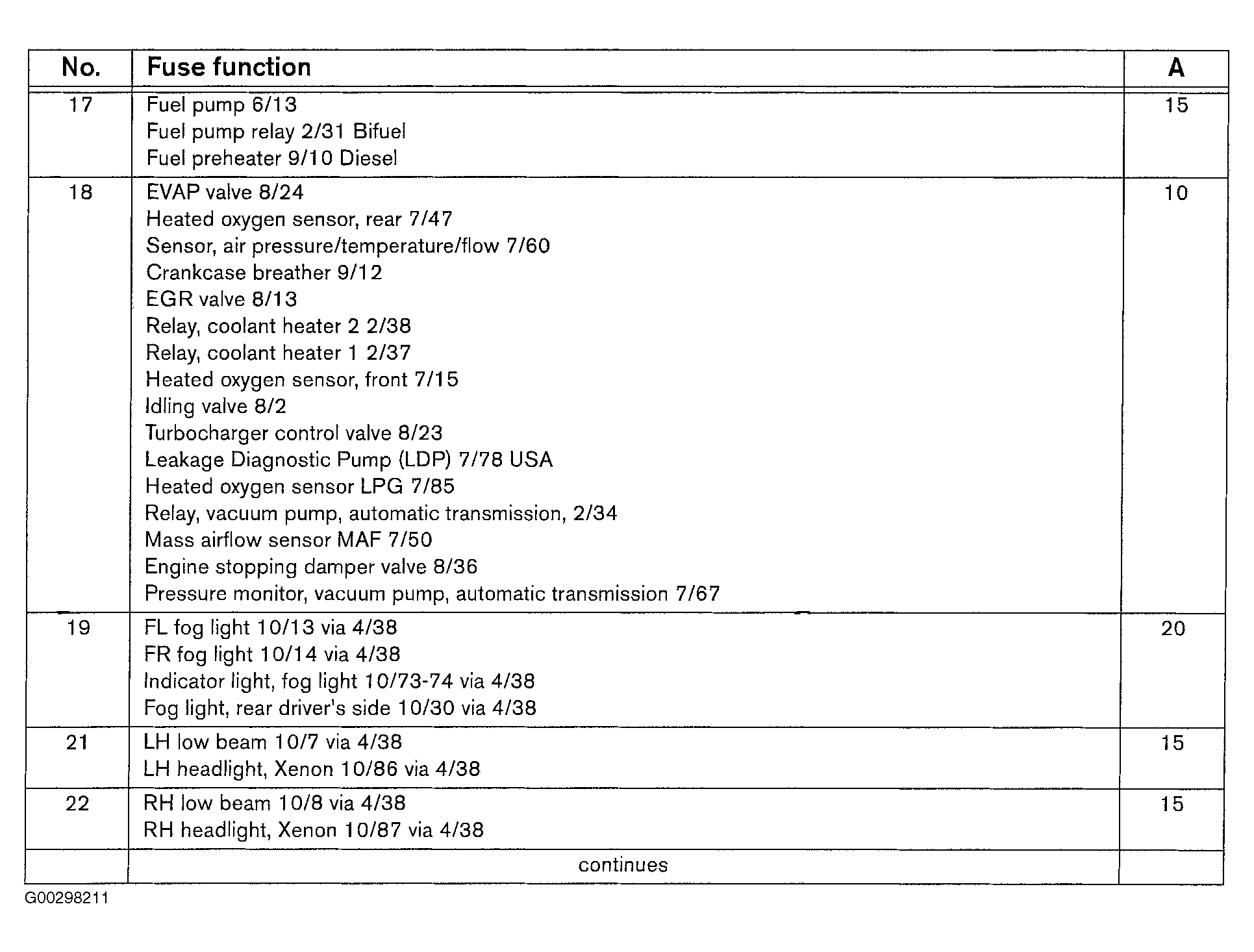

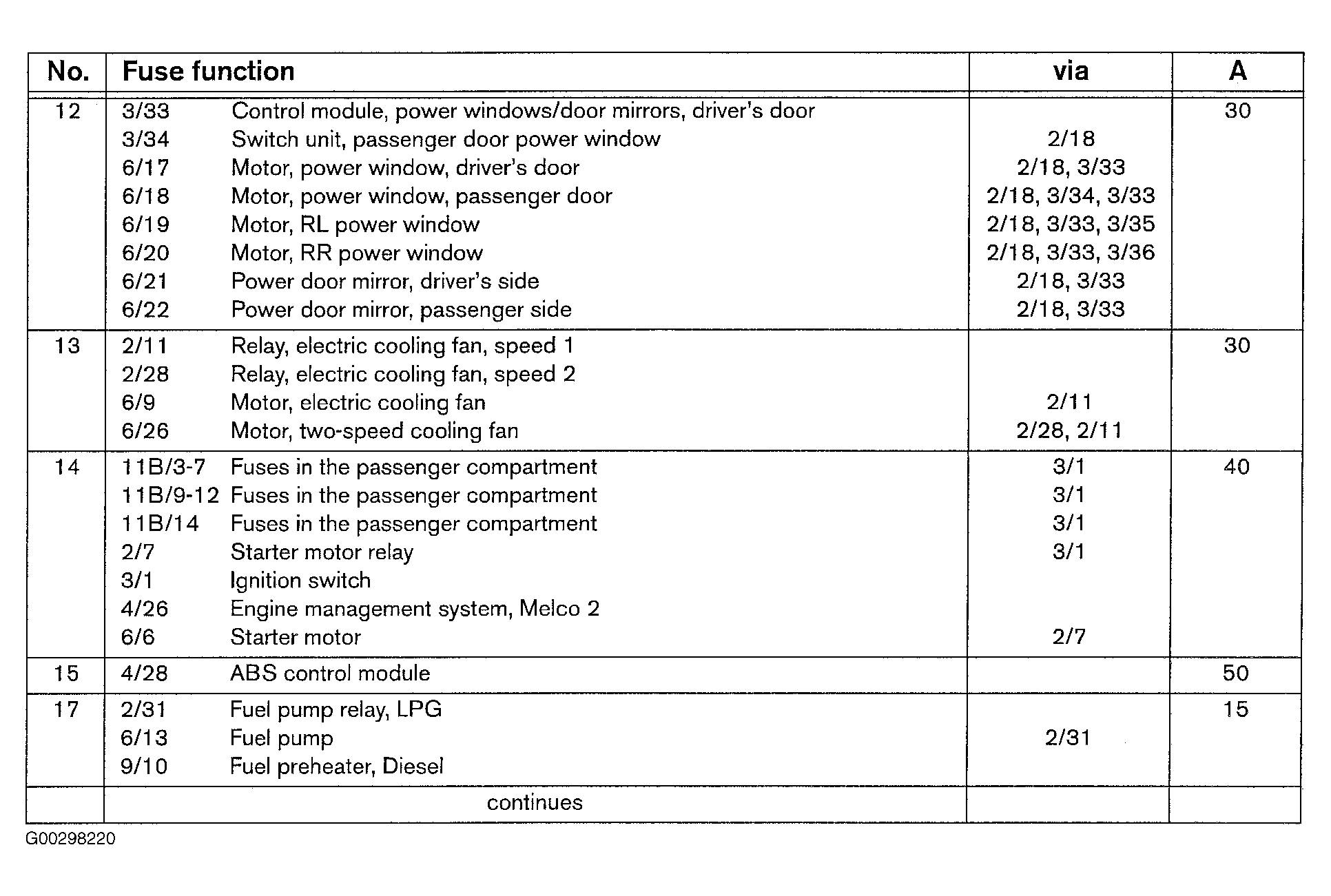

Fig 3: Identifying Engine Compartment Fuse Box Fuses (2002 - 1 Of 5)

Courtesy of VOLVO CARS OF NORTH AMERICA.

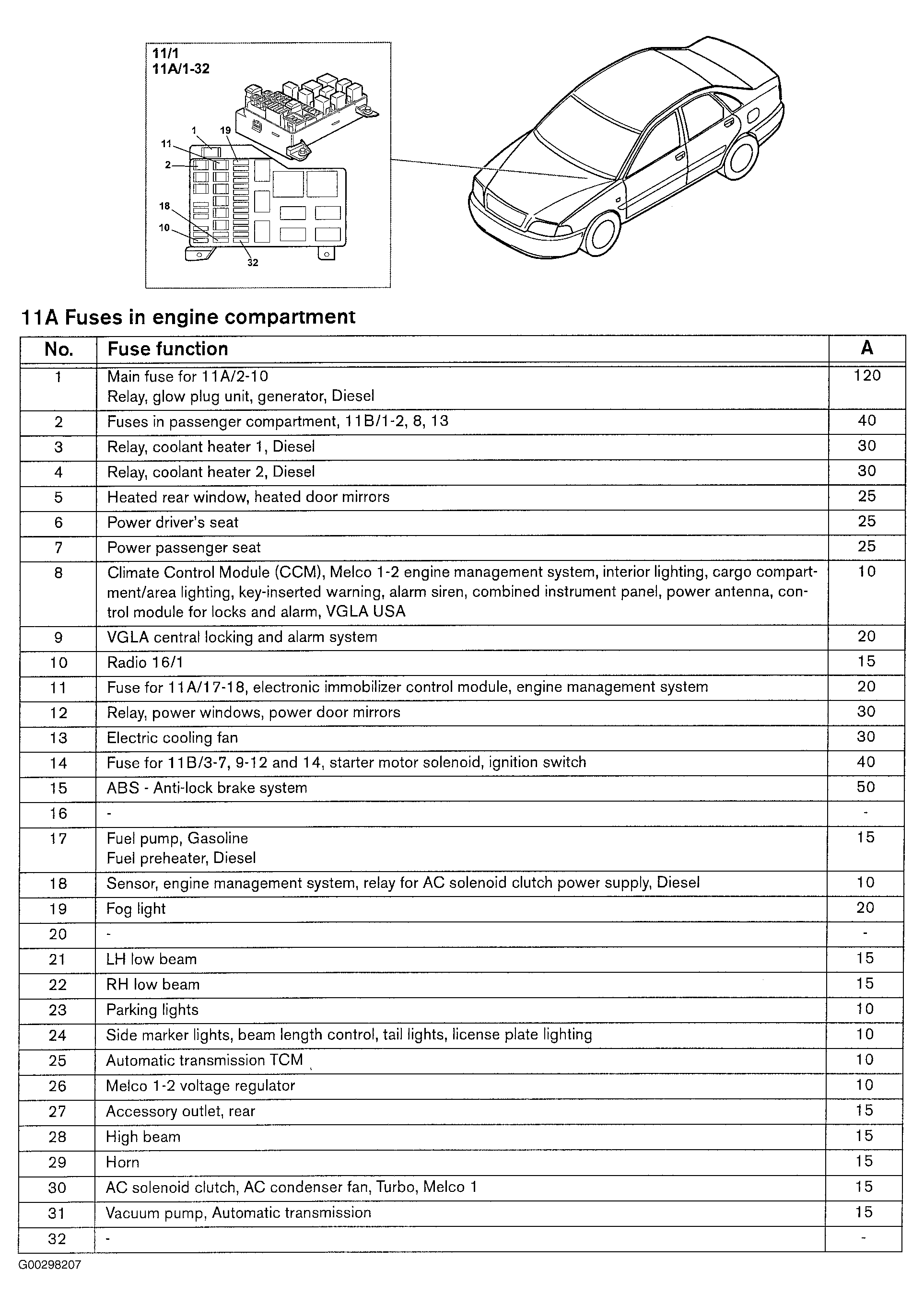

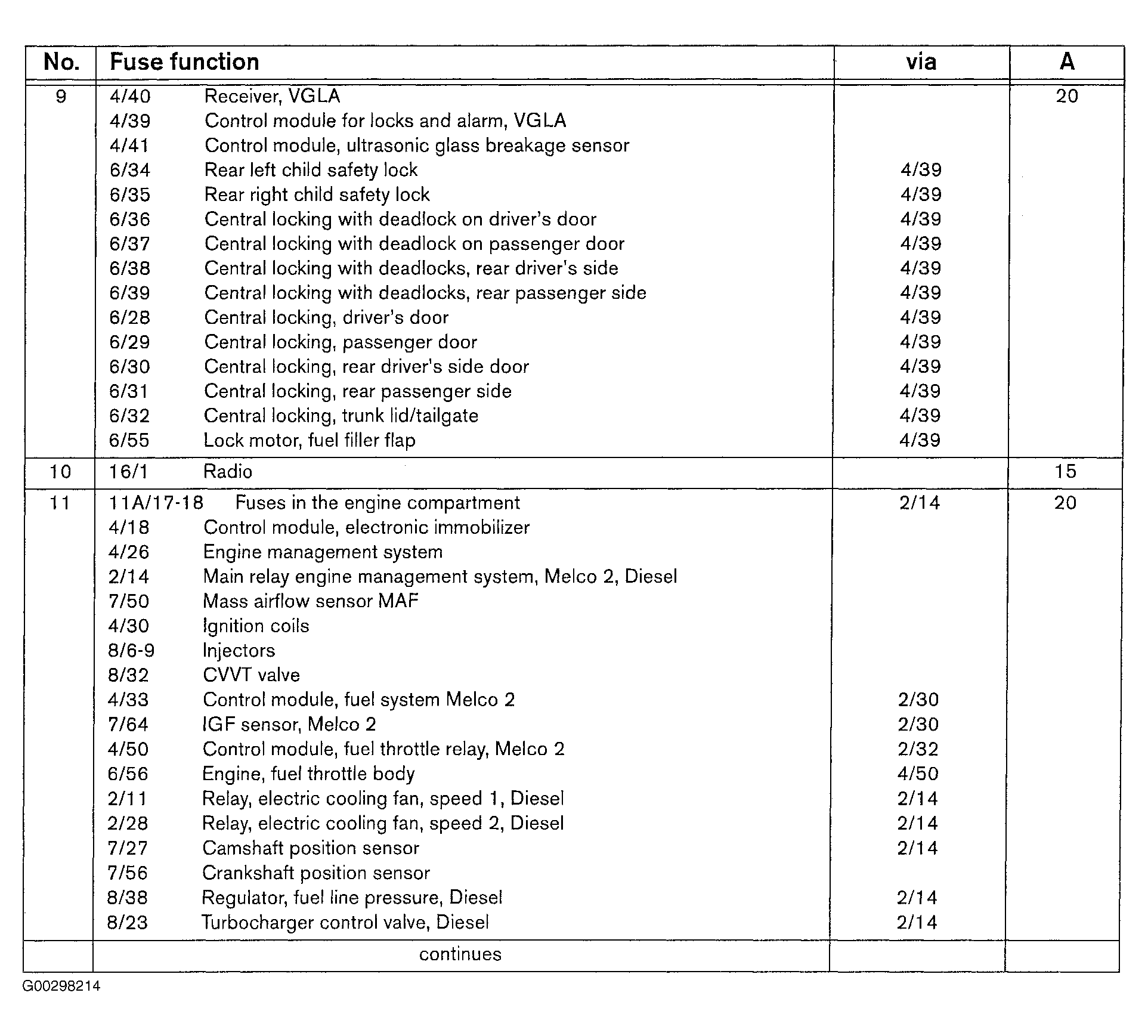

Fig 4: Identifying Engine Compartment Fuse Box Fuses (2002 - 2 Of 5)

Courtesy of VOLVO CARS OF NORTH AMERICA.

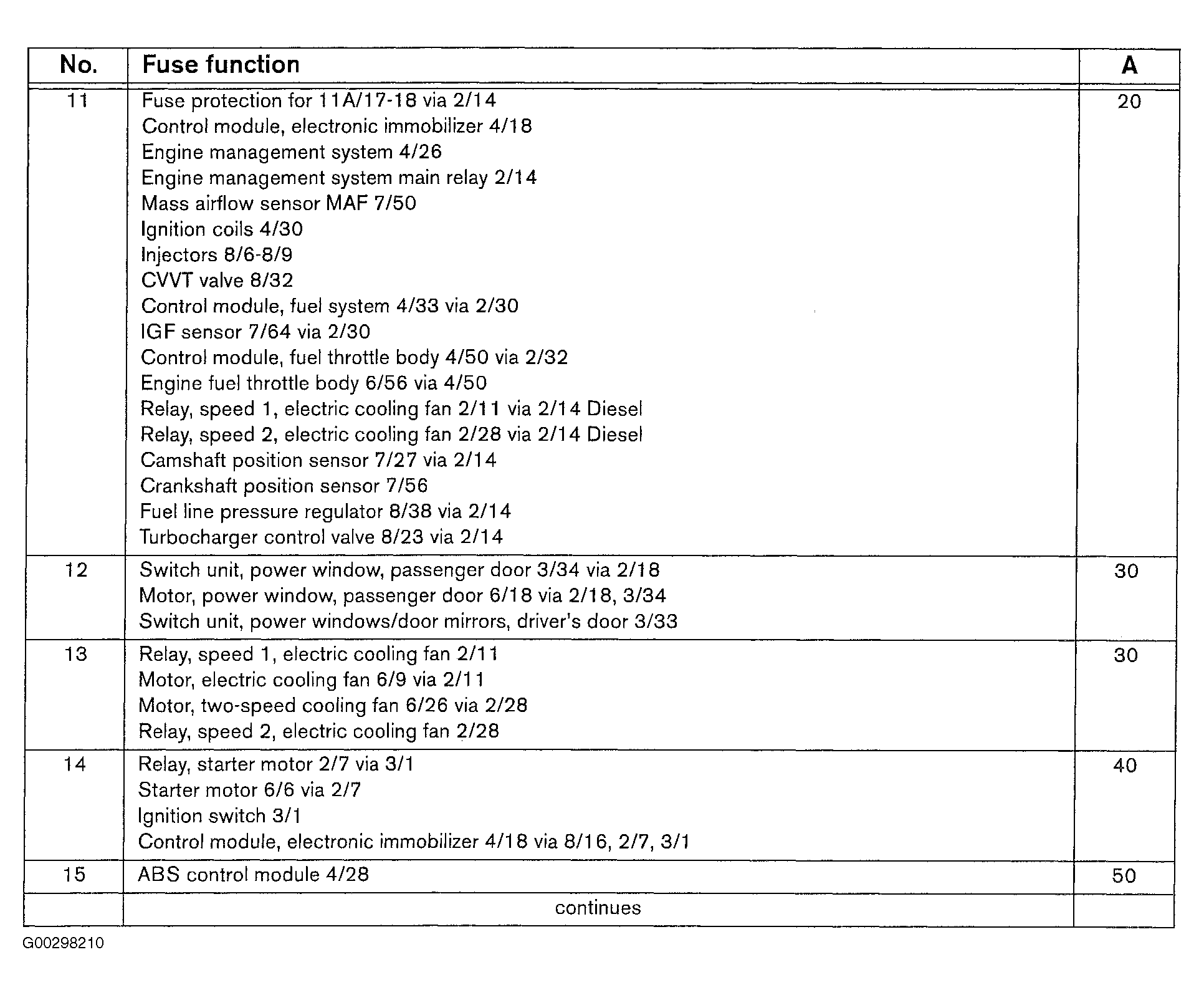

Fig 5: Identifying Engine Compartment Fuse Box Fuses (2002 - 3 Of 5)

Courtesy of VOLVO CARS OF NORTH AMERICA.

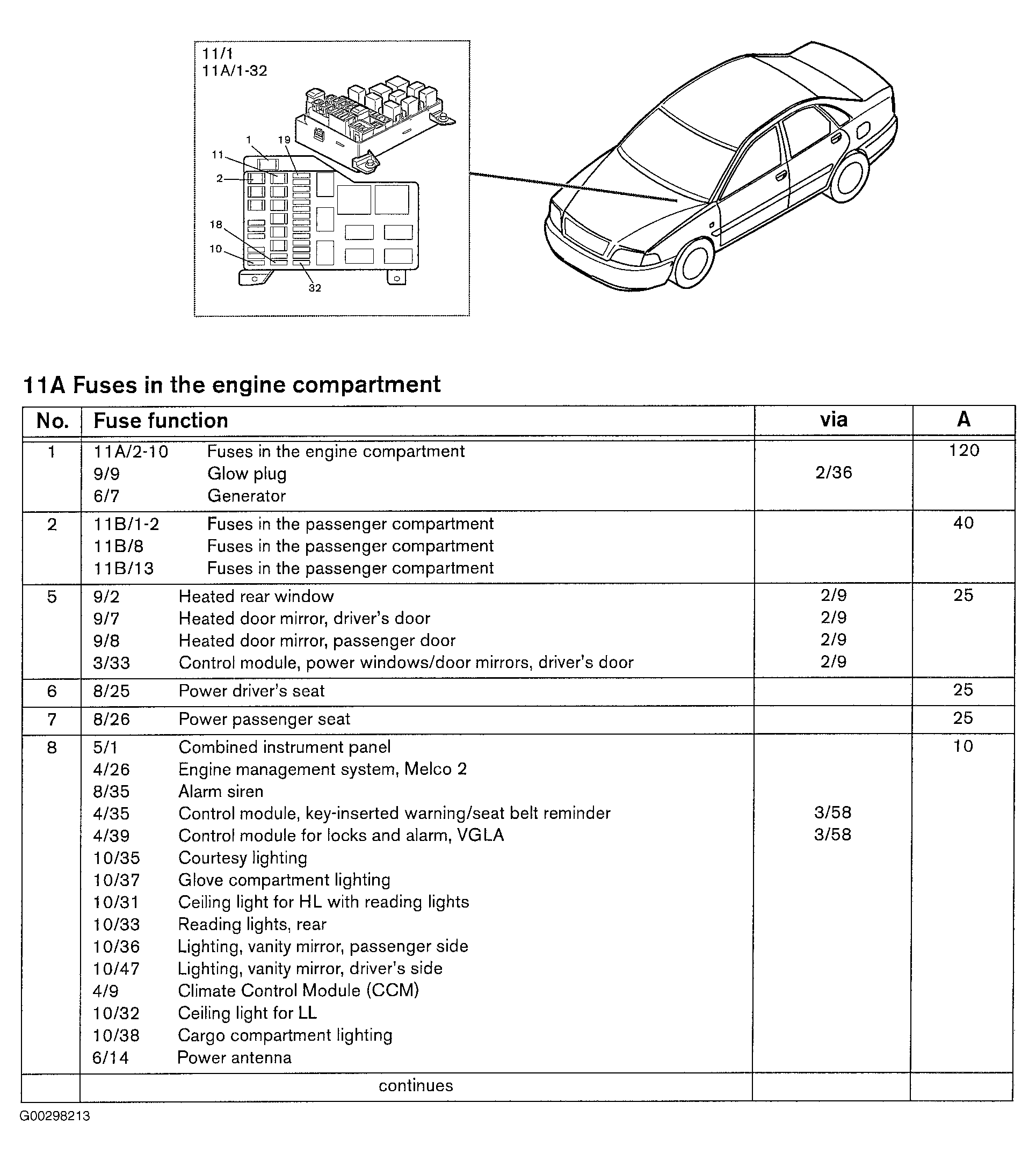

Fig 6: Identifying Engine Compartment Fuse Box Fuses (2002 - 4 Of 5)

Courtesy of VOLVO CARS OF NORTH AMERICA.

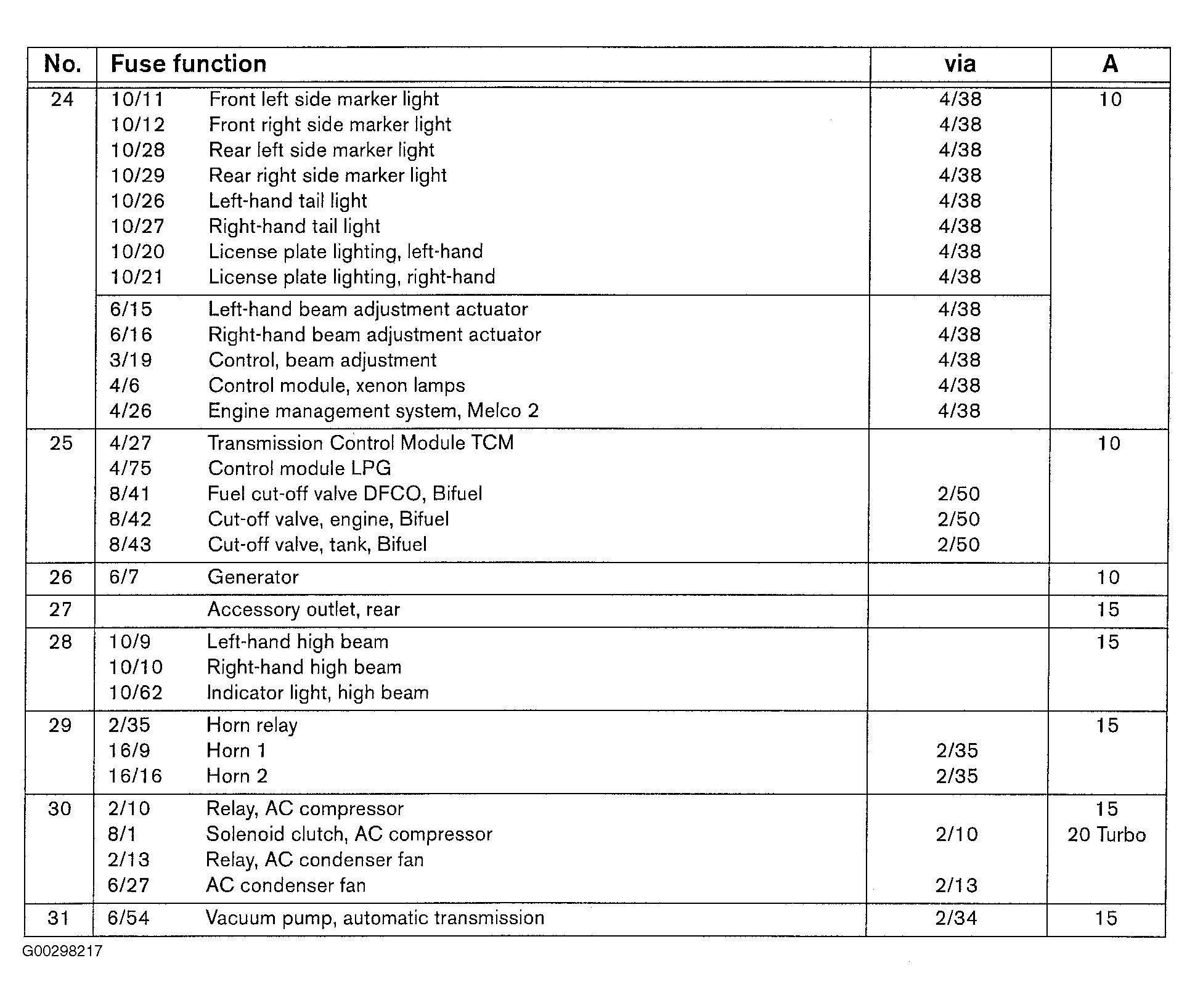

Fig 7: Identifying Engine Compartment Fuse Box Fuses (2002 - 5 Of 5)

Courtesy of VOLVO CARS OF NORTH AMERICA.

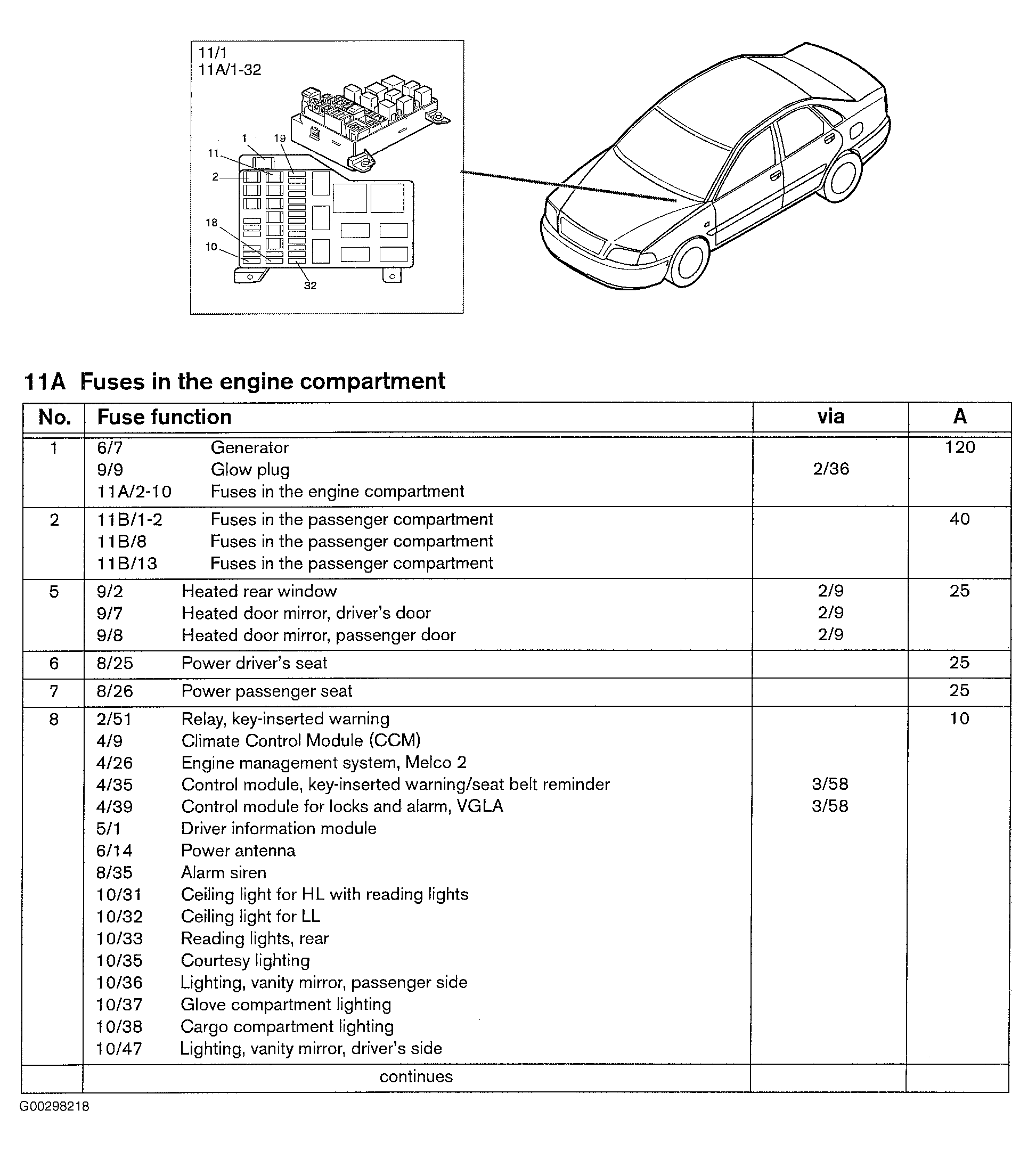

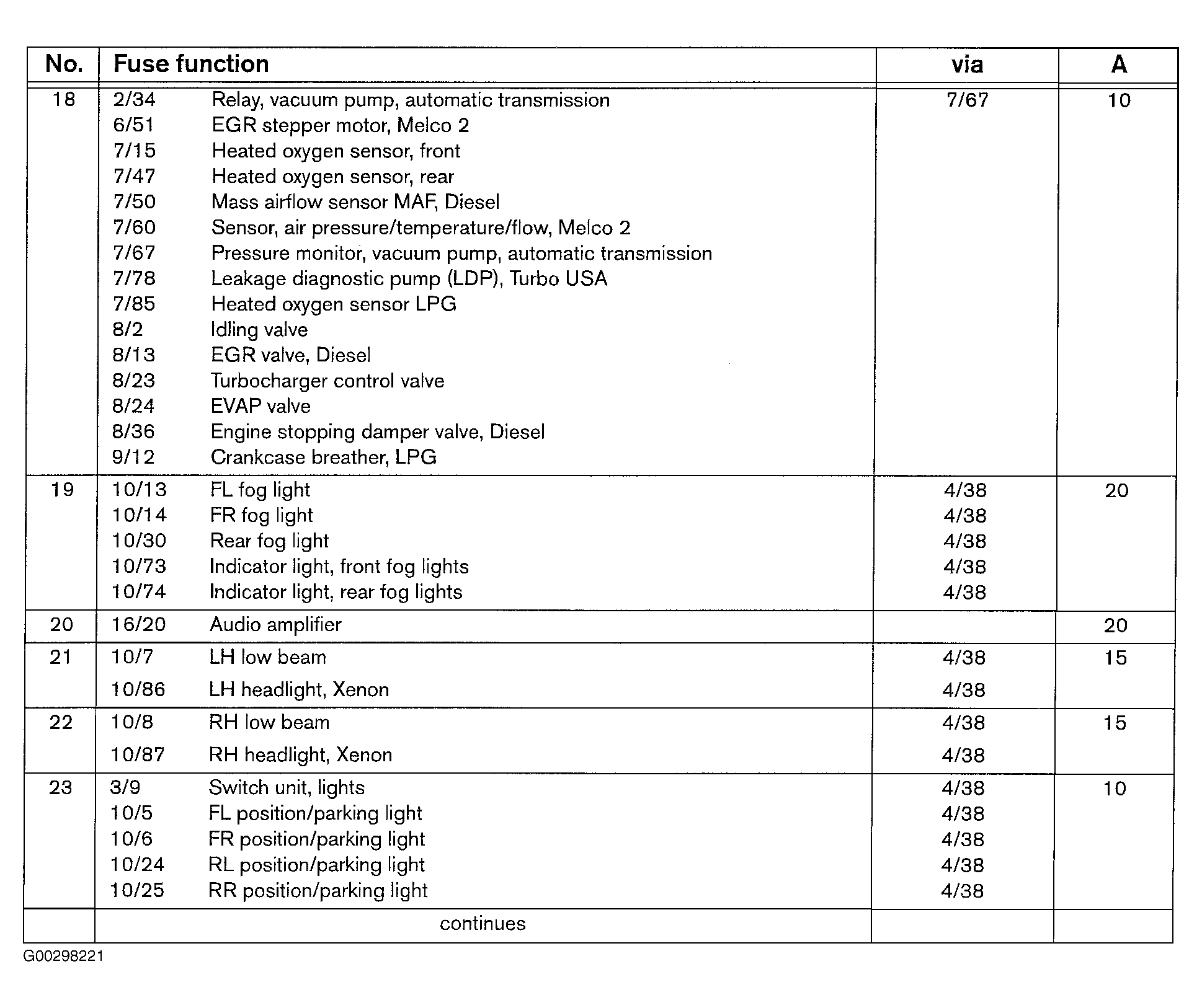

Fig 8: Identifying Engine Compartment Fuse Box Fuses (2003 - 1 Of 5)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 9: Identifying Engine Compartment Fuse Box Fuses (2003 - 2 Of 5)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 10: Identifying Engine Compartment Fuse Box Fuses (2003 - 3 Of 5)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 11: Identifying Engine Compartment Fuse Box Fuses (2003 - 4 Of 5)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 12: Identifying Engine Compartment Fuse Box Fuses (2003 - 5 Of 5)

Courtesy of VOLVO CARS OF NORTH AMERICA.

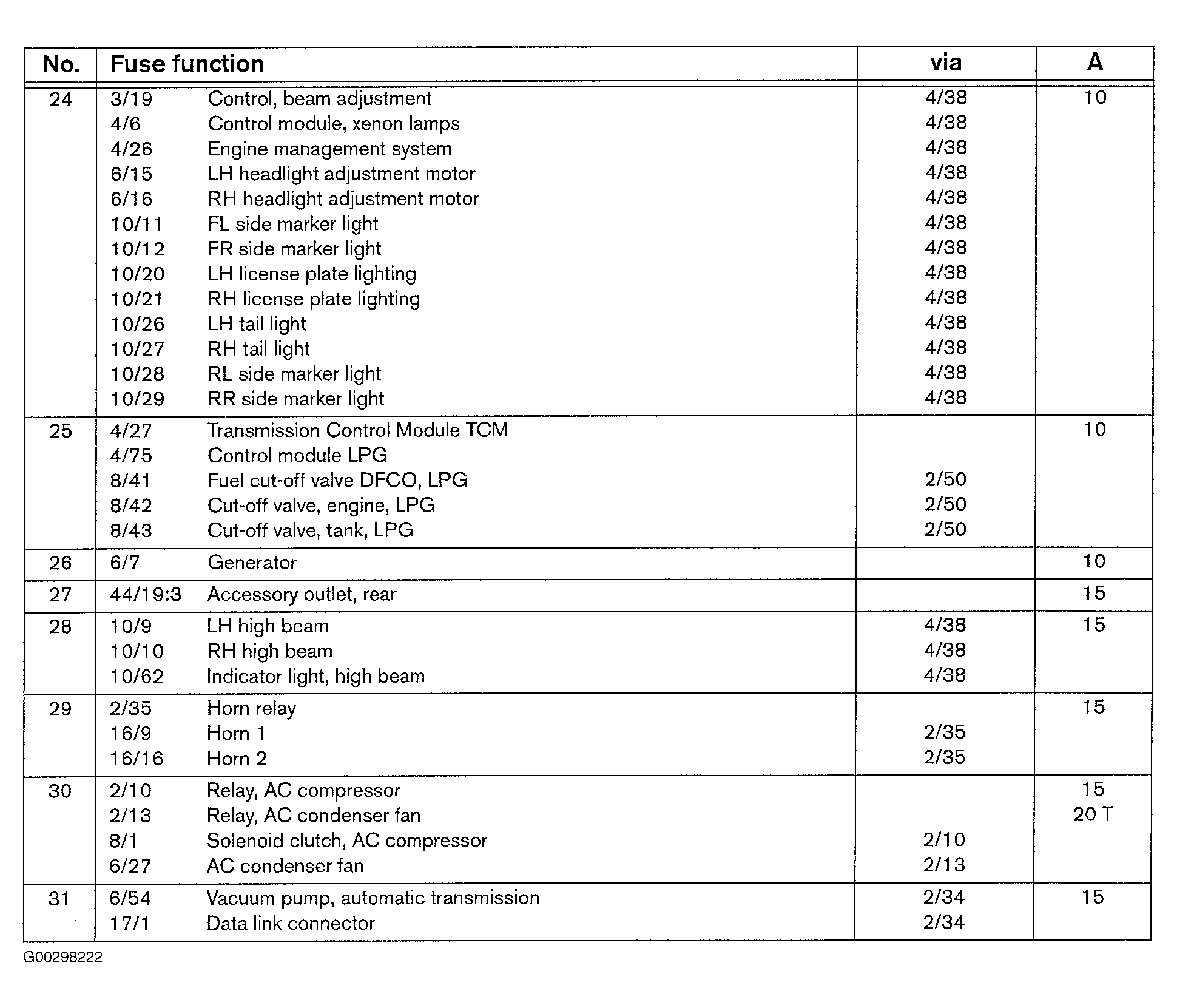

Fig 13: Identifying Engine Compartment Fuse Box Fuses (2004 - 1 Of 5)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 14: Identifying Engine Compartment Fuse Box Fuses (2004 - 2 Of 5)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 15: Identifying Engine Compartment Fuse Box Fuses (2004 - 3 Of 5)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 16: Identifying Engine Compartment Fuse Box Fuses (2004 - 4 Of 5)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 17: Identifying Engine Compartment Fuse Box Fuses (2004 - 5 Of 5)

Courtesy of VOLVO CARS OF NORTH AMERICA.
