Pressure Sensor, Intake Manifold Connector End View (7/81)

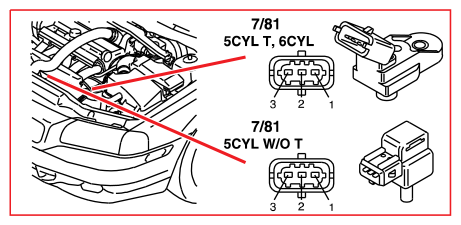

Fig 1: Pressure Sensor, Intake Manifold Connector End View (7/81)
Courtesy of VOLVO CARS CORPORATION
