Ignition Switch Connector End View (3/1)

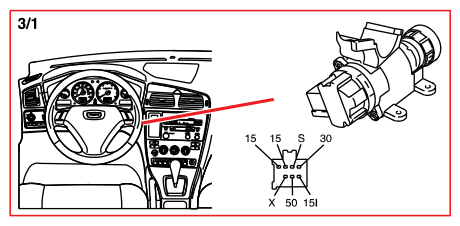

Fig 1: Ignition Switch Connector End View (3/1)
Courtesy of VOLVO CARS CORPORATION
Courtesy of VOLVO CARS CORPORATION
