Remove Special Tool

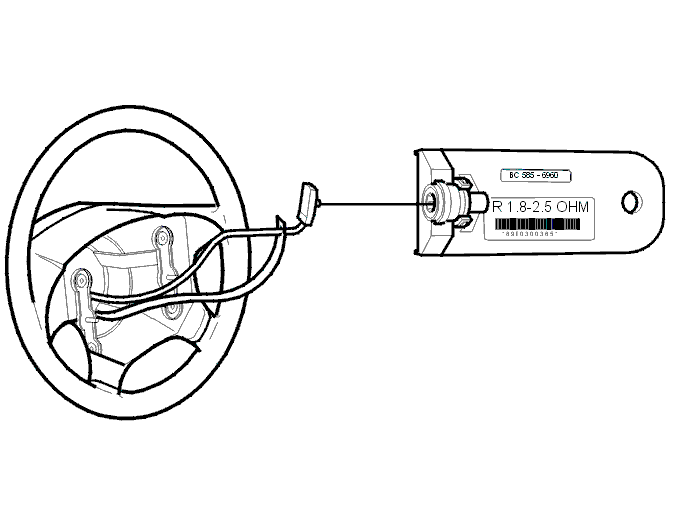

Fig 1: Connecting Special Tool 9988695 To Steering Wheel Air Bag Module Connector
GLL102455Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove special tool 9988695

HINT: If the ignition is switched on when neither the steering wheel module nor special tool are connected, a diagnostic trouble code (DTC) will be stored indicating an open-circuit. Any diagnostic trouble code (DTC) must be erased.
