Installing engine compartment components

Fig 1: Identifying Engine Hoses

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the inner of the two hose couplings for the passenger compartment heater connecting sleeve in the firewall
• the charge air pipe for the turbocharger (TC)
• the hose between the intake manifold and charge air cooler (CAC)
• the clamp for the cable harness on the engine.

Tighten the nut for the rear engine pad. Tighten to 50 Nm  .

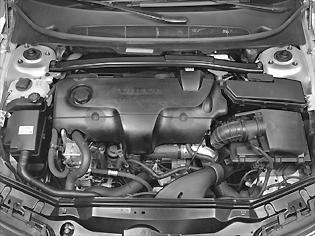

Fig 2: View Of Engine Compartment Components

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the air cleaner (ACL) housing assembly with the intake manifold and connections
• the ground lead for the mounting on the engine (where applicable)
• the upper torque rod between the wheel arches. Tighten the screws. Tighten to 50 Nm
• the screw for the torque rod to engine mounting. Tighten to 80 Nm  .

Fill with coolant. Carefully check while reaching operating temperature or test driving that the level remains the same and that there is no leakage.

Also see Transmission replacement, post-checking .
