Outside Temperature Sensor, Engine Control Module, V70 Connector End View (7/105)

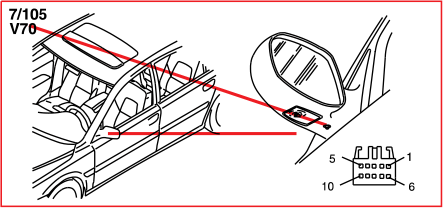

Fig 1: Outside Temperature Sensor, Engine Control Module, V70 Connector End View (7/105)
G10843564Courtesy of VOLVO CARS CORPORATION
