Removing The Abs Hydraulic Modulator

Fig 1: Brake Pipes To Wheel Brakes From ABS Hydraulic Modulator

Courtesy of VOLVO CARS CORPORATION

Disconnect the brake pipes to the wheel brakes from the ABS hydraulic modulator.

Hang the brake pipes on the cross member.

Plug the brake pipes and connections for the ABS hydraulic modulator and master cylinder.

Remove the connector from the control module.

Remove the 3 mounting screws for the bracket by the side member.

Raise the ABS hydraulic modulator and bracket.

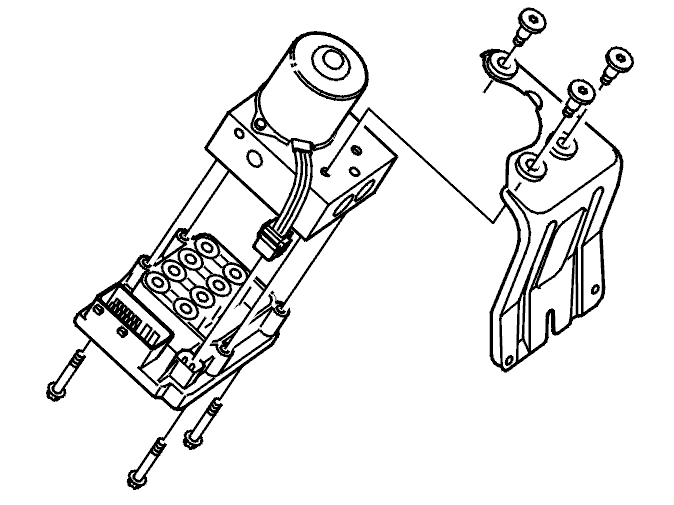

Fig 2: ABS Hydraulic Modulator Bracket

Courtesy of VOLVO CARS CORPORATION

Remove:

• the connector for the pump motor from the control module
• the bracket from the ABS hydraulic modulator
• the control module.
