Manifold Pressure/Vacuum Sensor: Service and Repair

Manifold absolute pressure (MAP) sensor, replacing

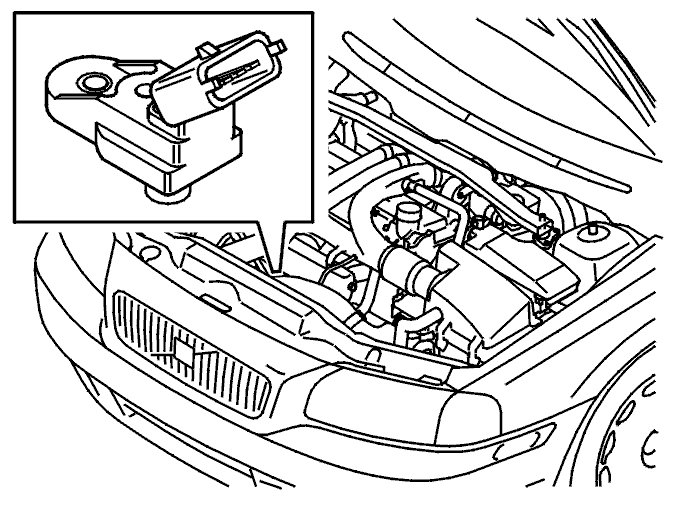

Removing boost pressure sensor





Remove
- the intake manifold between the front cover plate and the air cleaner (ACL) housing.Applies only to B6xx4T.




- the connector from the sensor
- the sensor from the intake manifold.

Removing boost pressure sensor





Install
- a new sensor
- the connector.




- the intake manifold between the front cover plate and the air cleaner (ACL) housing.Applies only to B6xx4T engines.
