Connector D, Transmission

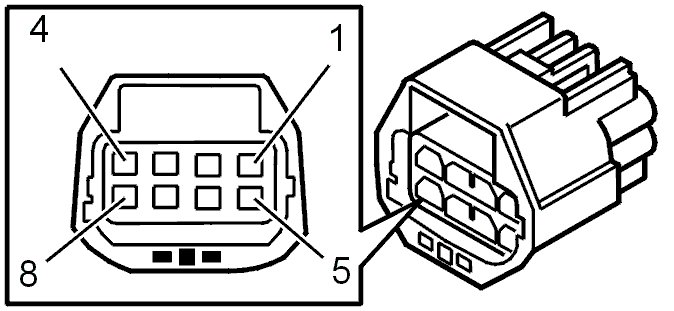

Connector D, transmission

8-pin connector




Control module terminals #A1-#A60 correspond to terminals #A1-#A60 on the breakout box, terminals #A61-#A70 correspond to terminals #B1-#B10 on the breakout box.
