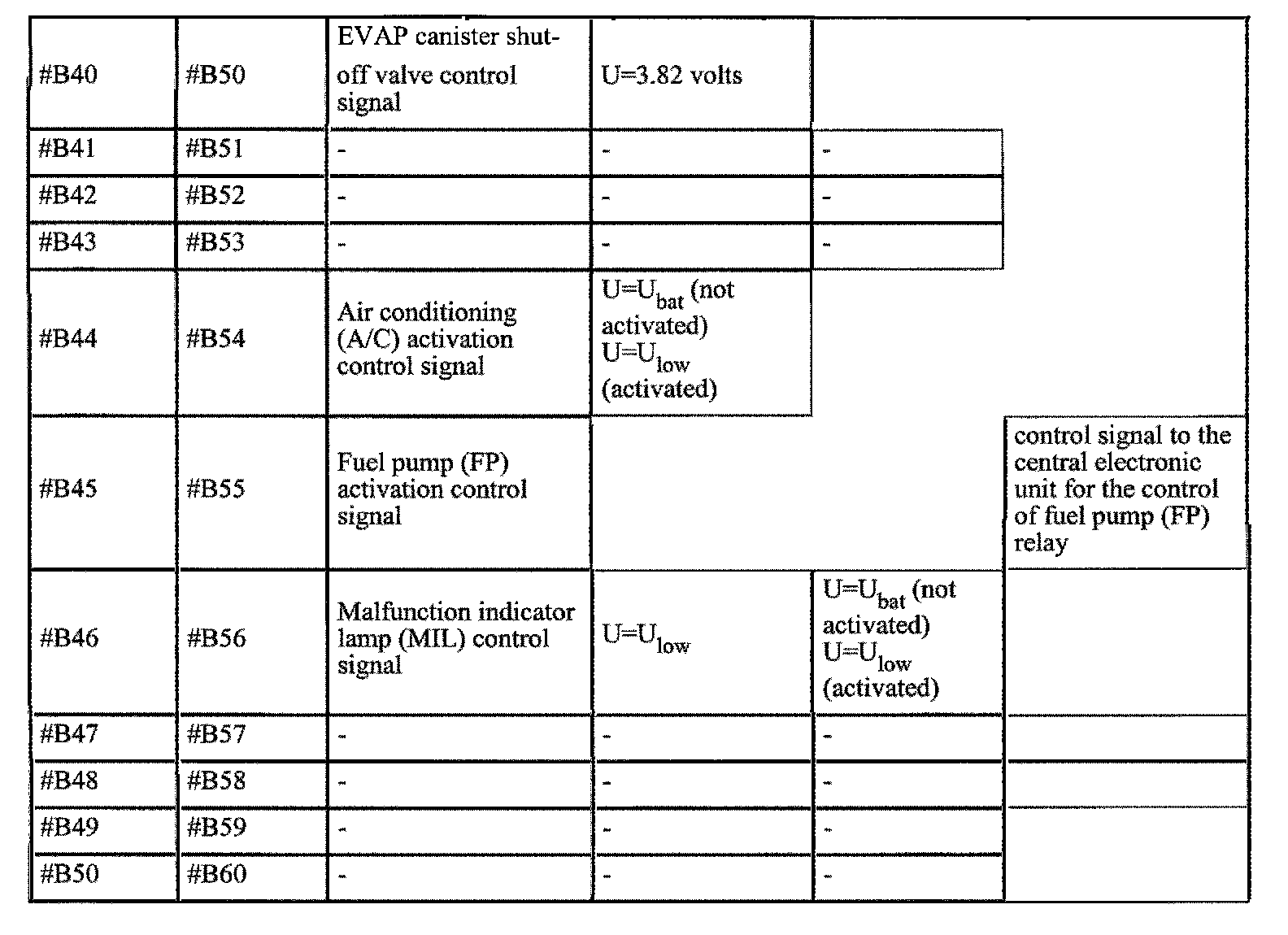

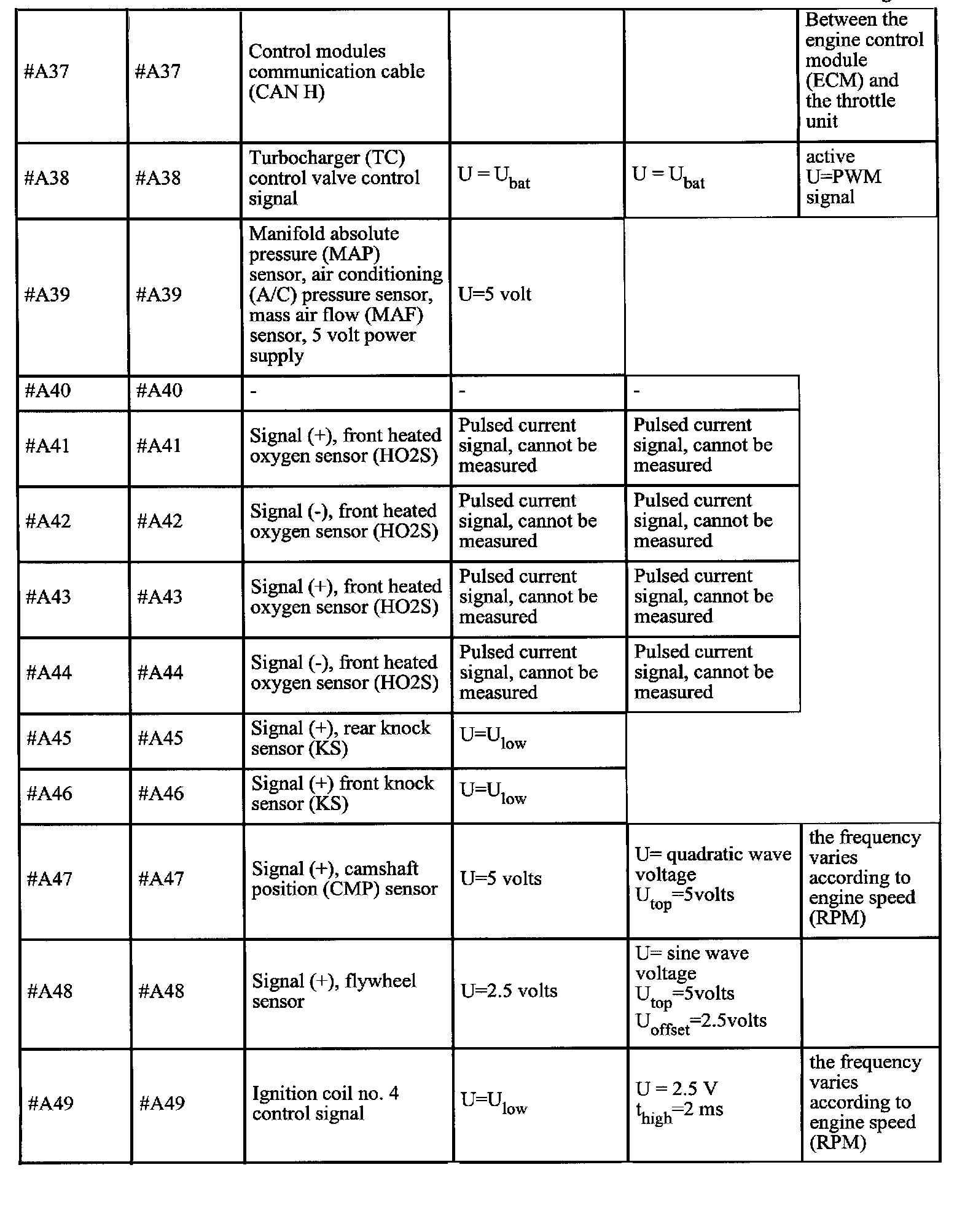

Connector Views

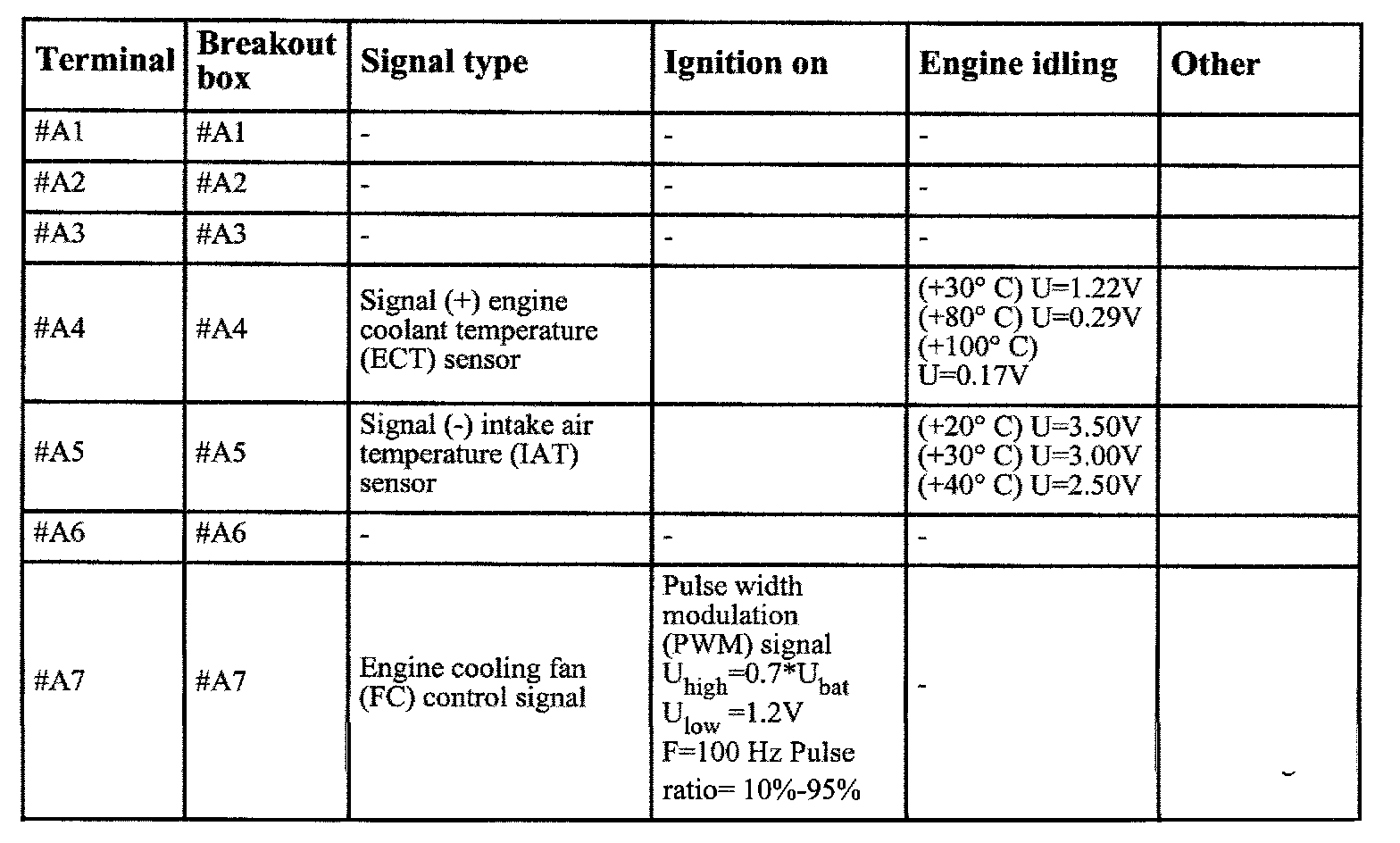

Part 1 Of 6:

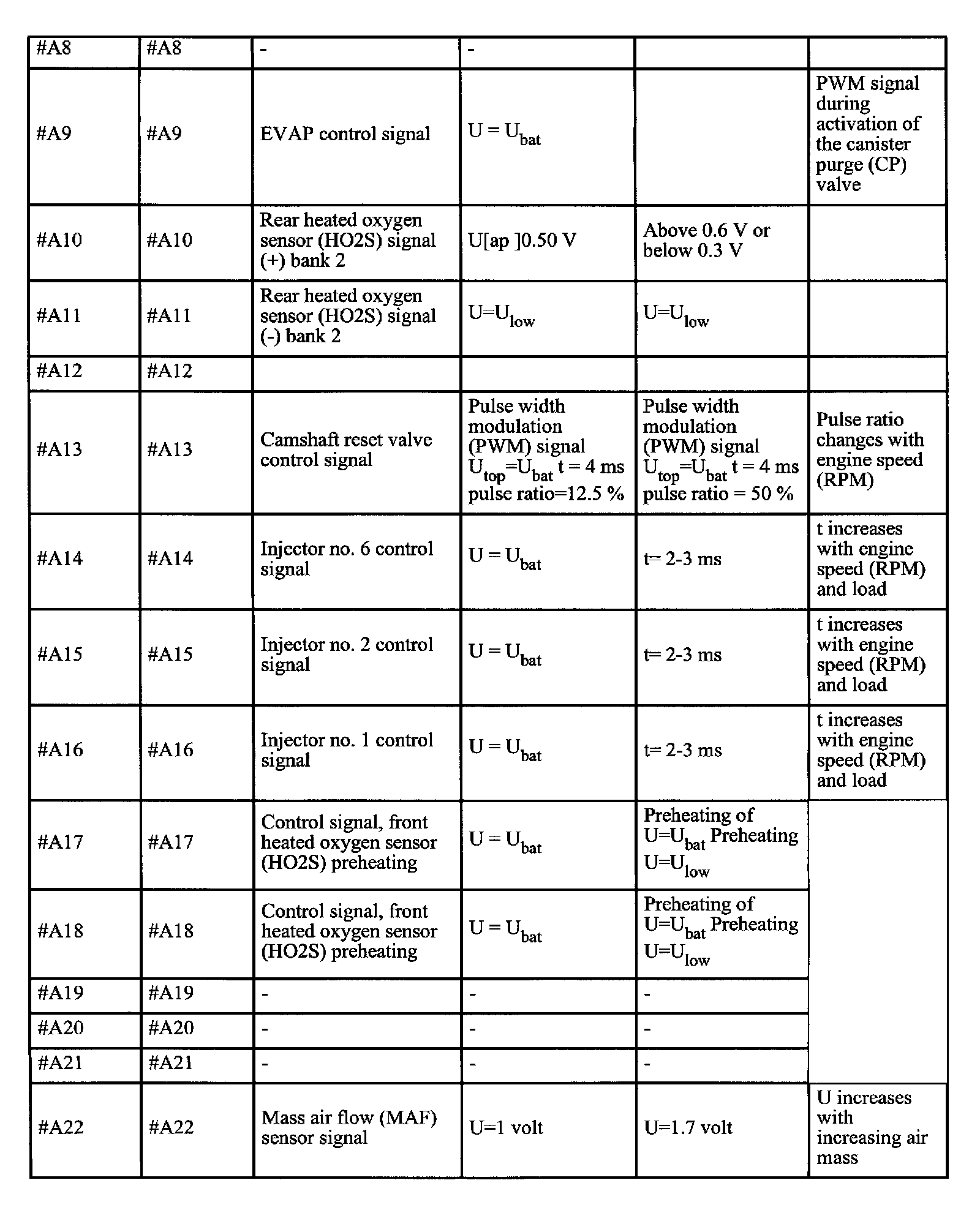

Part 2 Of 6:

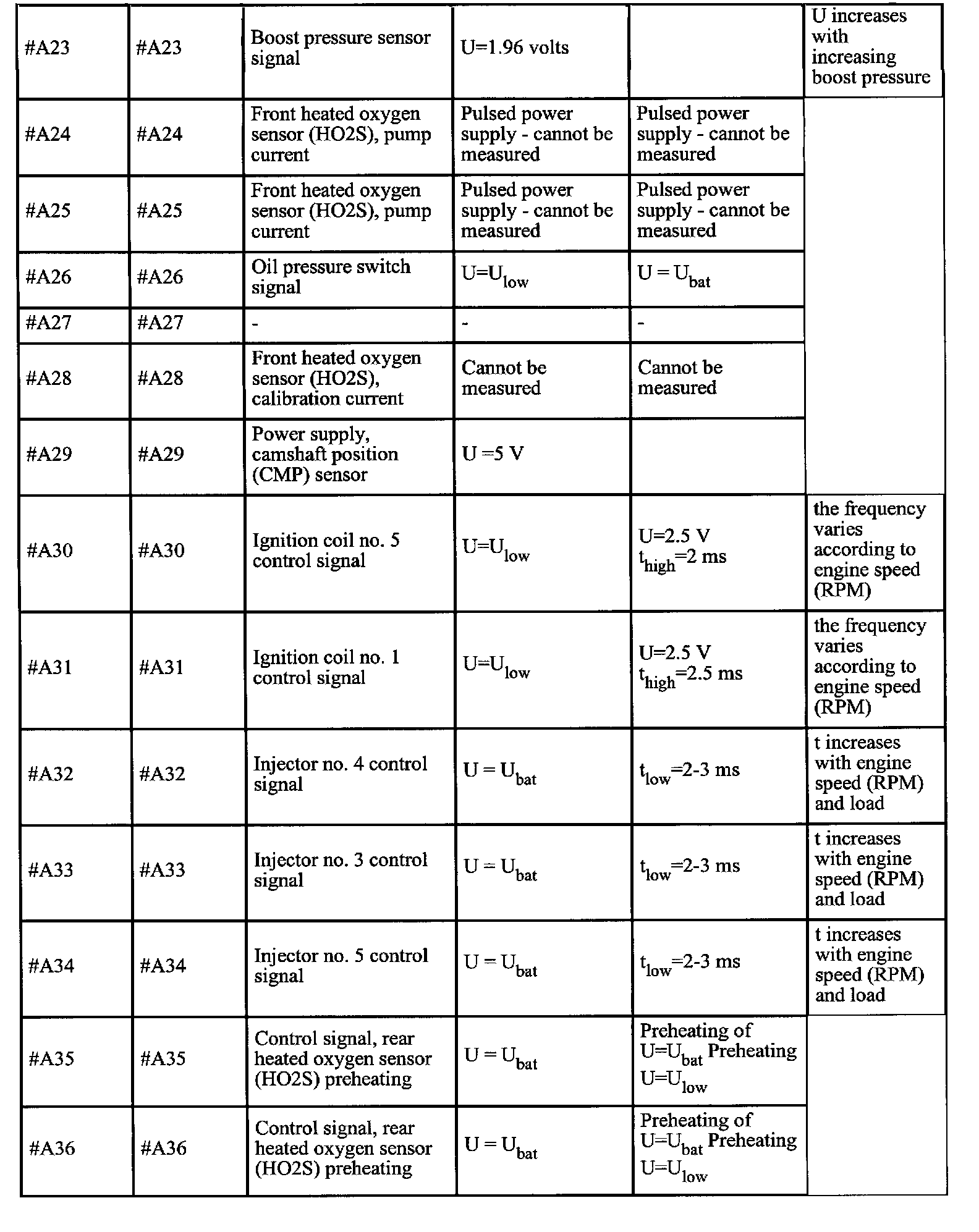

Part 3 Of 6:





Part 4 Of 6:

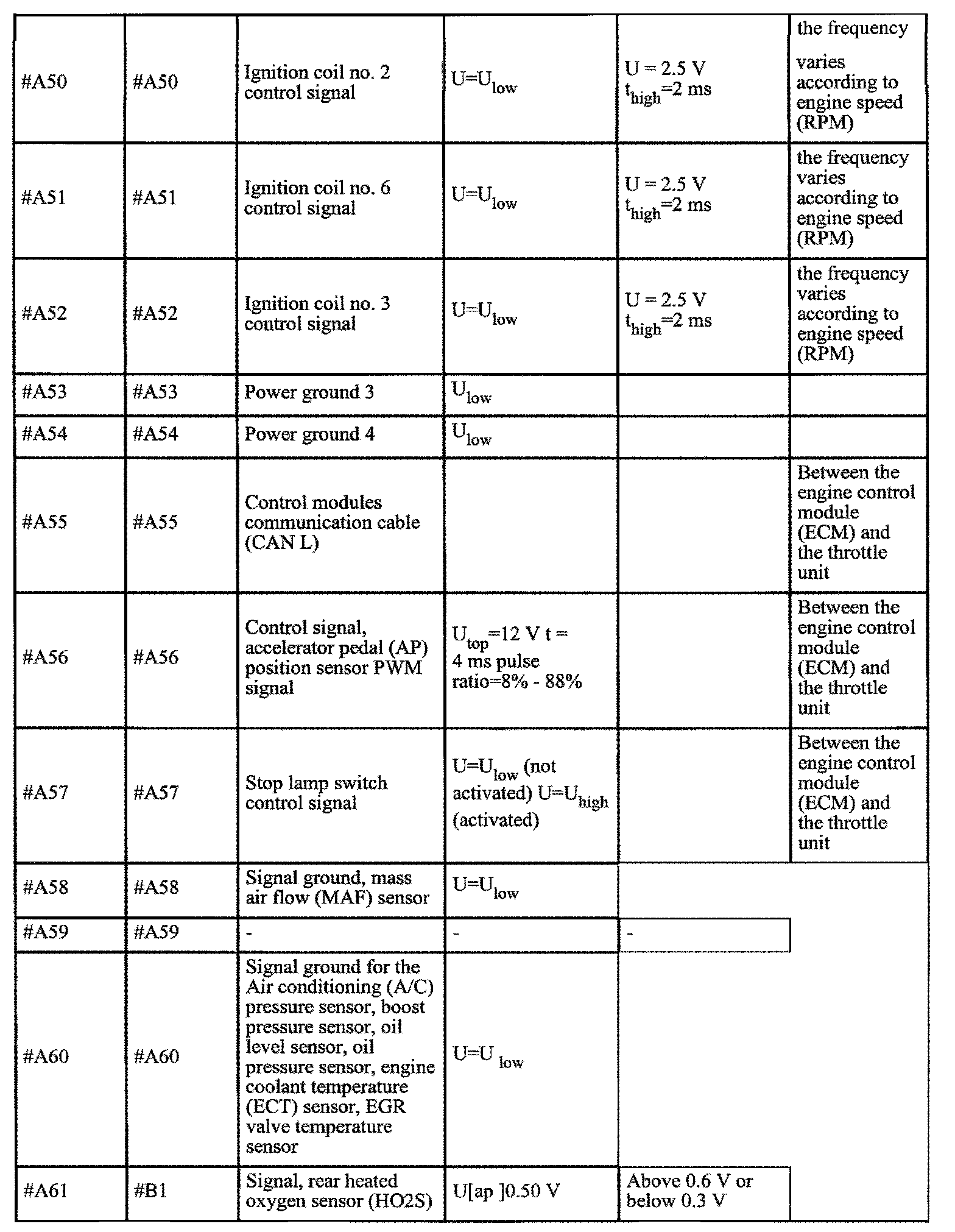

Part 5 Of 6:

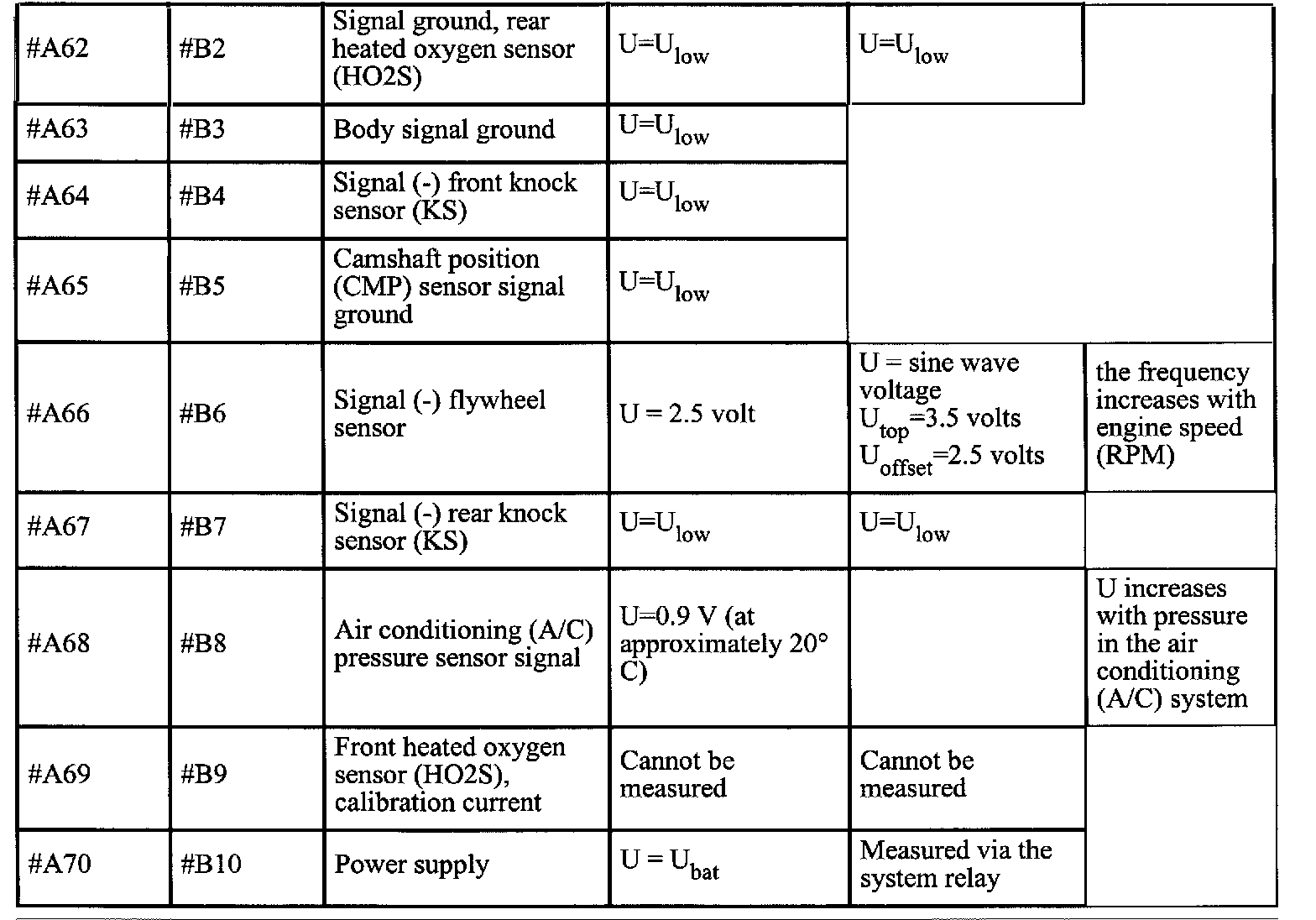

Part 6 Of 6:

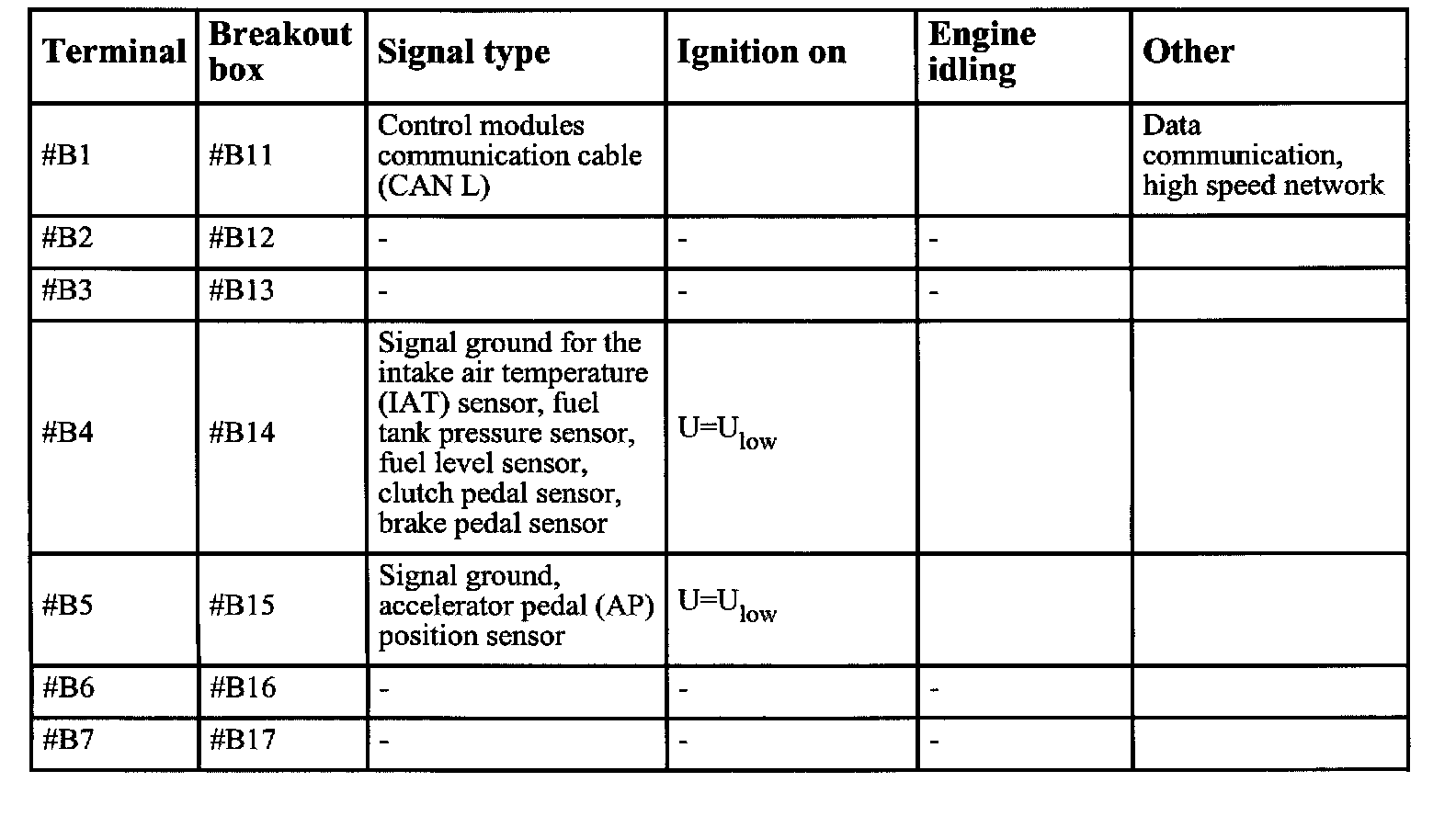

Part 1 Of 4:

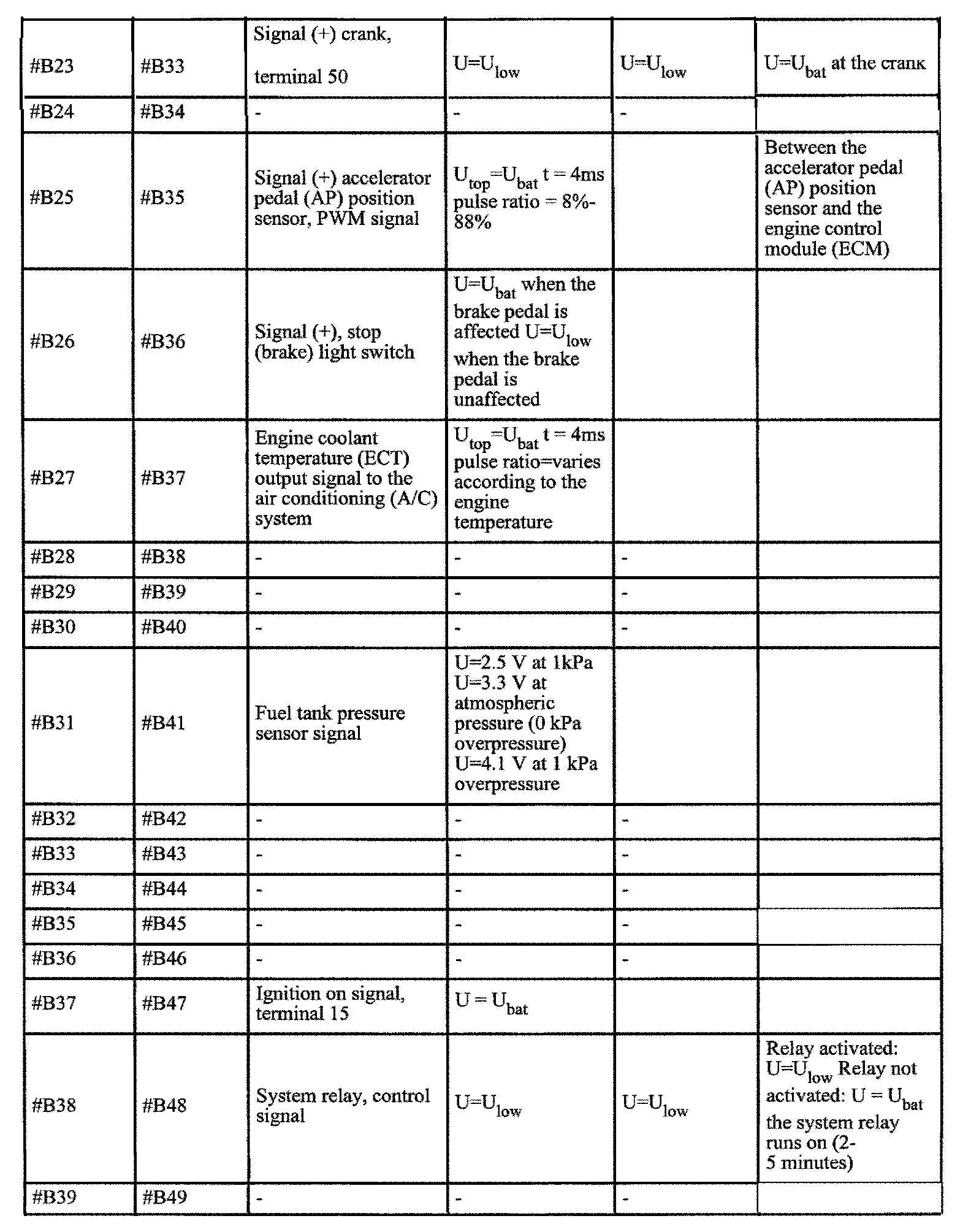

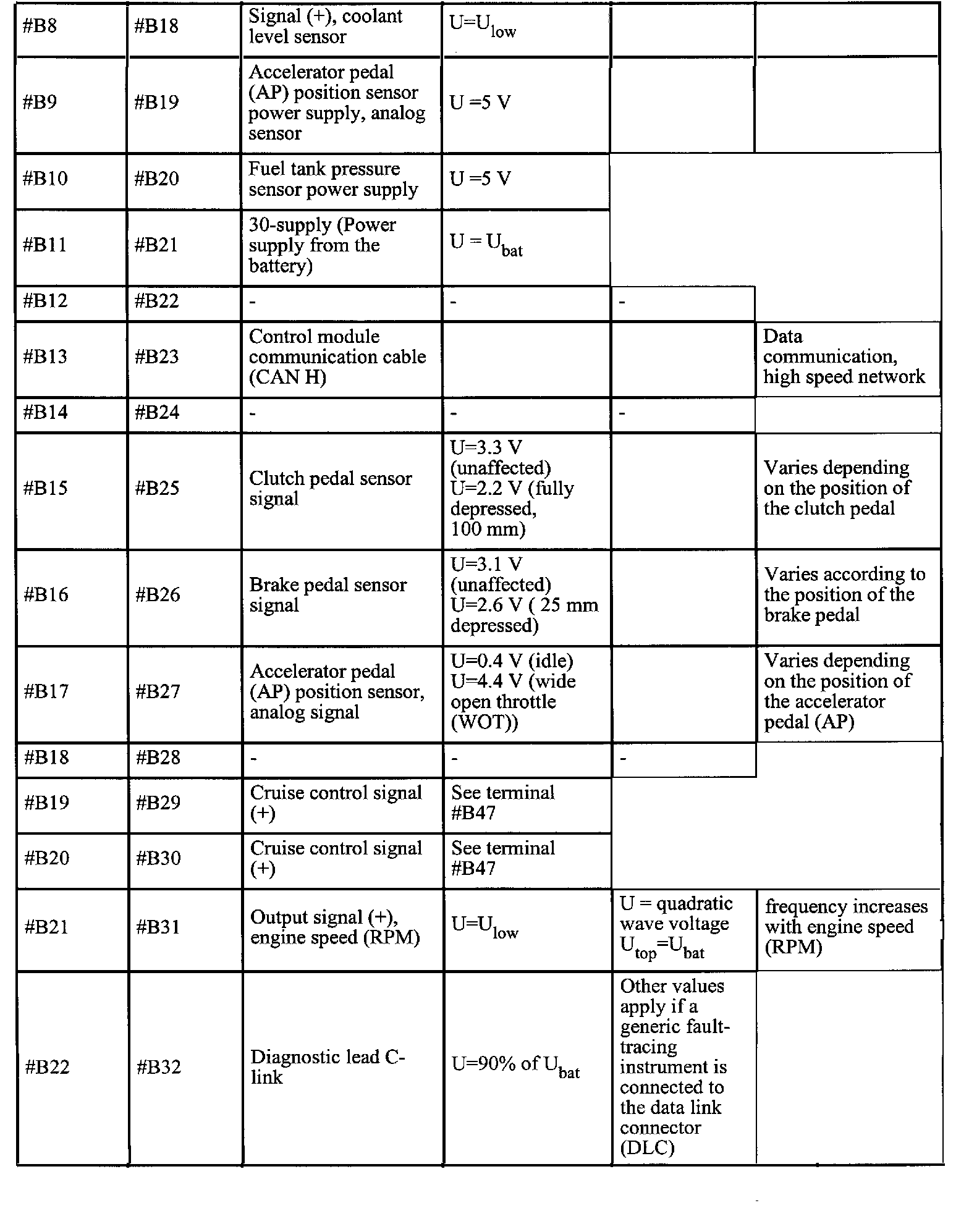

Part 2 Of 4:





Part 3 Of 4:





Part 4 Of 4:
