Removing Cover Control System

Remove the cover over the control system. See COVER CONTROL SYSTEM, REPLACING .

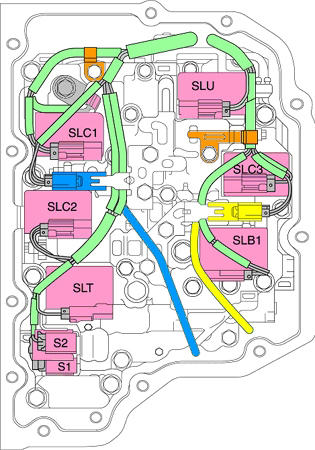

Fig 1: Identifying Cable Harness
GLL150127Courtesy of VOLVO CARS CORPORATION
