Removal Of Wire For Key Lock (Automatic Transmission Only)

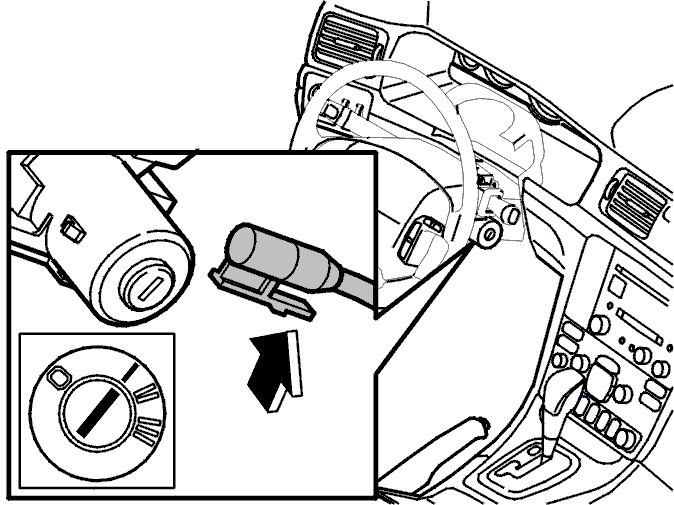

Fig 1: Identifying Ignition Switch Interlock Cable

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to cars with automatic transmission:

• Remove the wire for the key lock.
• Set the ignition key in position I.
• Press up the striker plate and pull out the wire.
