Removal Of The Control Module, Option 1 (By The Fuel Tank)

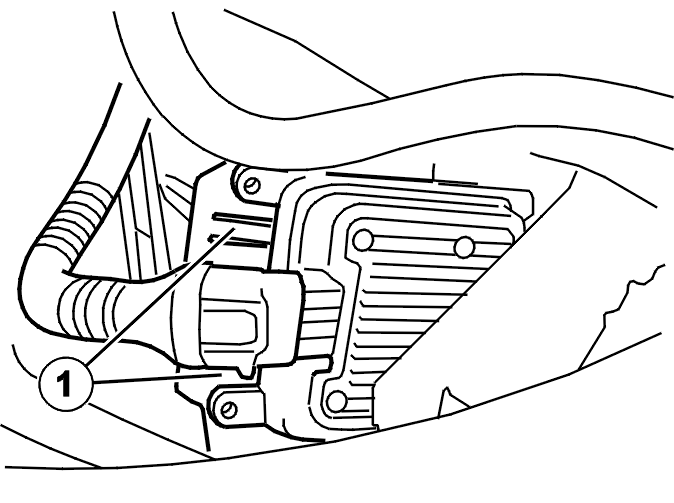

Fig 1: Identifying Fuel Pump Driver Module And Metal Tabs

Courtesy of VOLVO CARS CORPORATION

NOTE:

When replacing the control module, the new control module must always be placed under the seat cushion, see REMOVAL OF THE CONTROL MODULE, OPTION 2 (UNDER THE SEAT CUSHION, BACKSEAT) .

Raise the car.

Fold in the two metal tabs (1).

Remove:

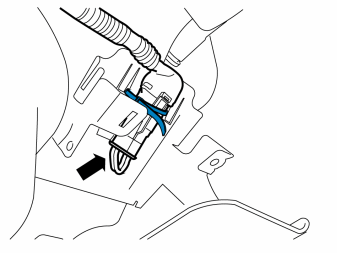

Fig 2: Securing Cable To Bracket Using Cable Tie

Courtesy of VOLVO CARS CORPORATION

Insert the plug into the connector from the kit.

Secure the cable to the bracket using a cable tie.
