Combined high and low beam
Reflector, left-hand headlamp

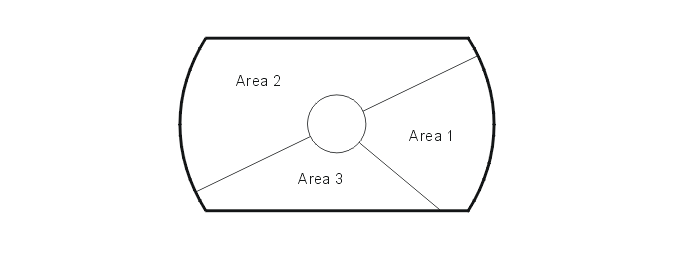

The illustration is a principle sketch showing the different segments of the moving reflector.
The reflector has a complex design where different segments are used depending on whether in high or low beam position.
The reflector is adjustable and can be moved between two fixed points.
- The reflector is moved 2 mm axially in relation to the bulb
- The direction of the movement means that position of reflector is also moved slightly vertically.
The bulb is fixed.
The headlamp lens is clear.
