Combined high and low beam
Reflector, left headlight

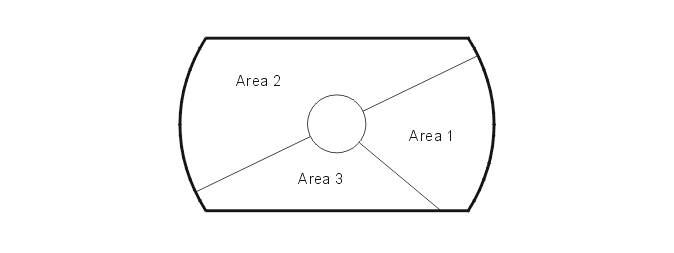

The illustration is an outline diagram showing the various segments of the moveable reflector.
The reflector has a complex shape in which different segments are used depending on whether high beam or low beam is in use.
The reflector is moveable suspended and is moved between two fixed positions.
- The reflector is moved 2 mm (0.08 in) axially in relationship to the lamp.
- The direction of the movements also causes the reflector to shift slightly vertically.
The lamp remains in a fixed position.
The headlight lens is clear.
